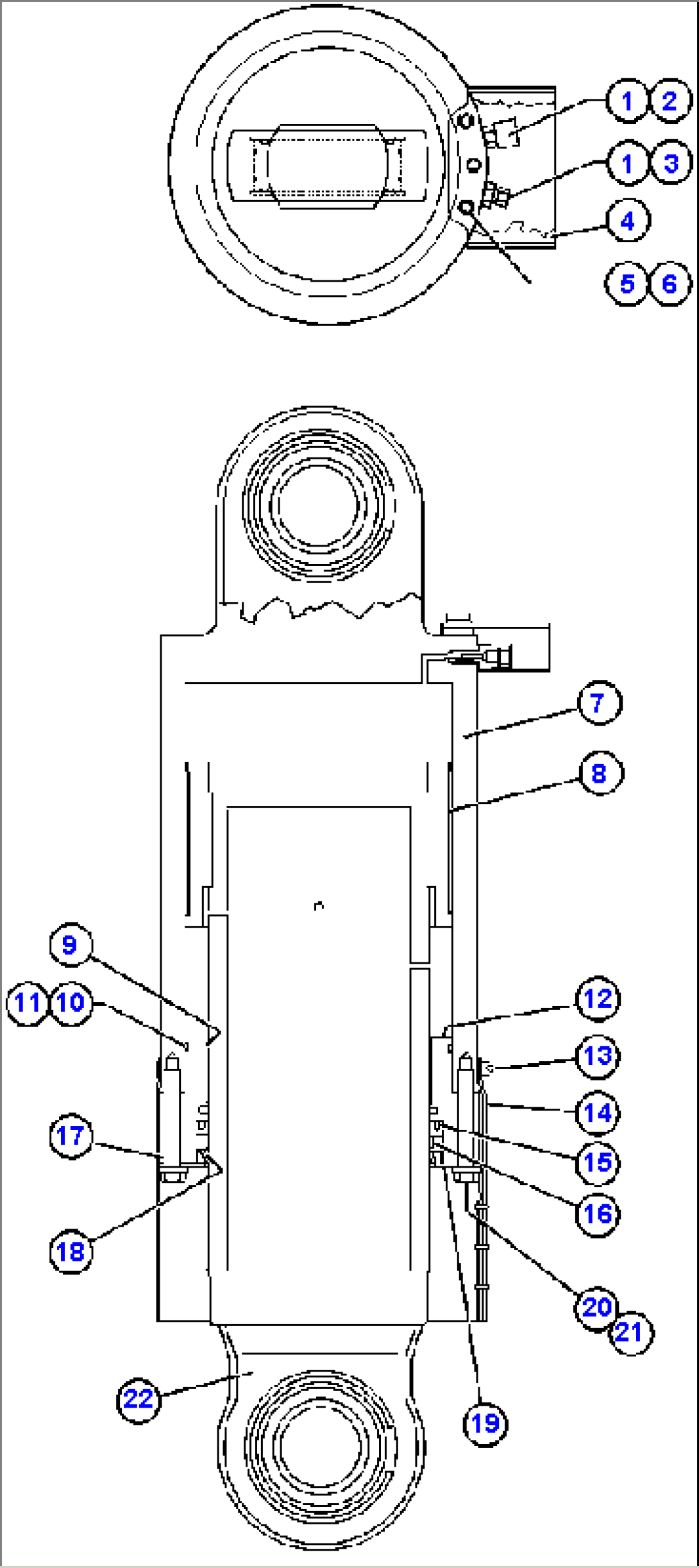

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-50-11350 | PACKING | ||
| 2 | 561-86-67700 | VALVE ASSEMBLY | ||
| 3 | 566-50-11301 | VALVE ASSEMBLY | ||
| 4 | EG8439 | COVER | ||
| 5 | 01010-51035 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 562-50-36111 | CYLINDER | ||
| 8 | 562-50-32270 | WEAR RING | ||
| 9 | 581-50-11180 | BUSHING | ||
| 10 | 07001-05330 | RING | ||
| 11 | 07000-15330 | O-RING | ||
| 12 | 562-50-36150 | FLANGE | ||
| 13 | 562-50-36290 | CLAMP | ||
| 14 | 562-50-36191 | GUARD | ||
| 15 | 581-50-11290 | PACKING | ||
| 16 | 581-50-11280 | BUSHING | ||
| 17 | 562-50-36220 | RETAINER | ||
| 18 | 581-50-21252 | SEAL | ||
| 19 | 562-50-36210 | PLATE | ||
| 20 | 01011-81825 | BOLT | ||
| 21 | 01643-31845 | WASHER | ||
| 22 | 562-50-36131 | ROD | ||
| NS|23 | NOTE: NS = NOT SHOWN | |||
| NS|24 | 7861-92-1620 | SENSOR, PRESSURE |
