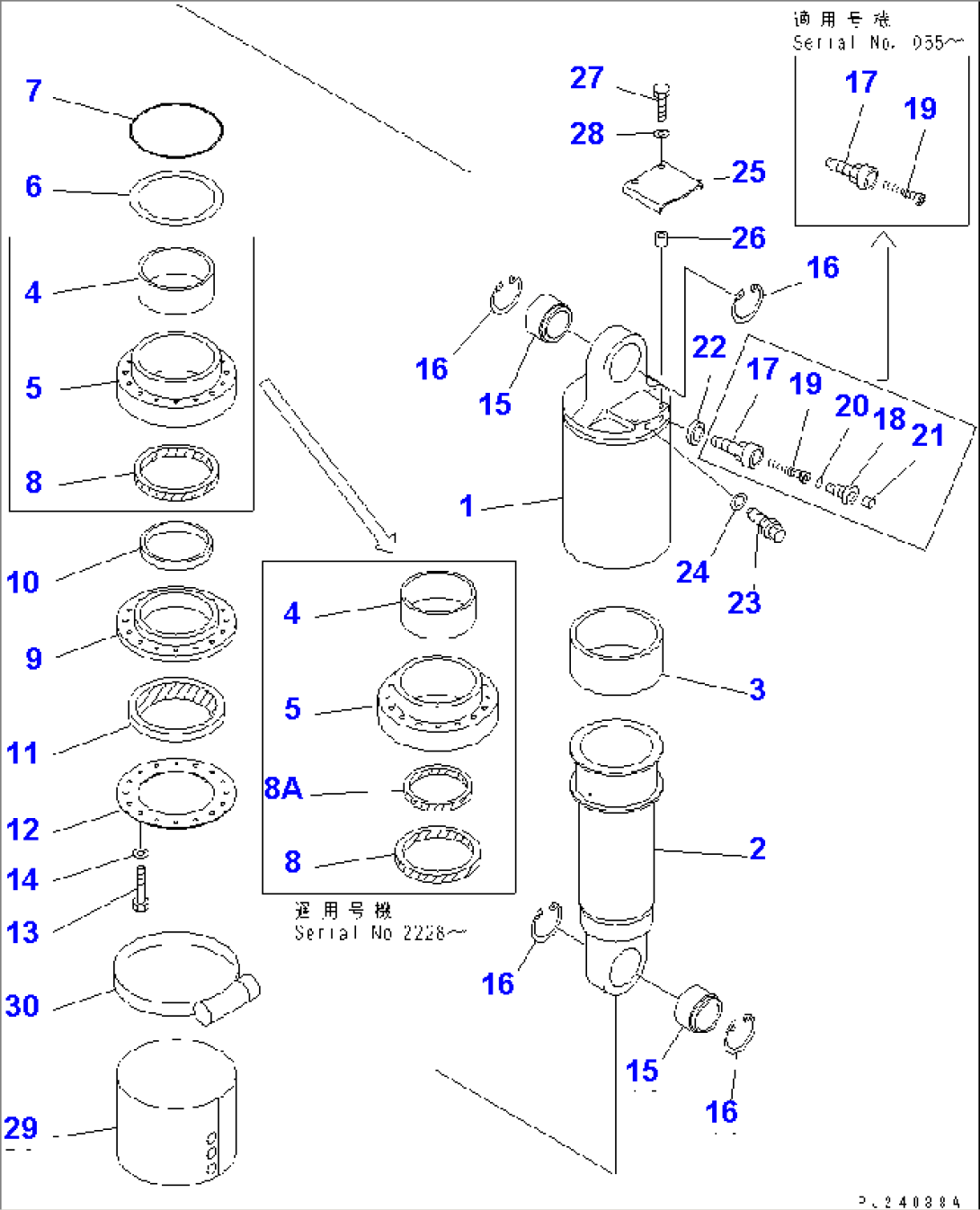

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-50-74006 | CYLINDER ASS'Y | 2228- | ||
| \0\566-50-74005 | CYLINDER ASS'Y | 1136-2227 | ||
| \0\566-50-74004 | CYLINDER ASS'Y | 1055-1135 | ||
| \0\566-50-74003 | CYLINDER ASS'Y | 1001-1054 | ||
| 1 | 566-50-62110 | CYLINDER | 1001- | |
| 2 | 566-50-62130 | ROD | 1001- | |
| 3 | 566-50-11170 | RING,WEAR | 1001- | |
| 4 | 566-50-82180 | BUSHING | 2228- | |
| 4 | 566-50-11181 | BUSHING | 1001-2227 | |
| 5 | 566-50-82150 | FLANGE | 2228- | |
| 5 | \0\566-50-62150 | FLANGE | 1001-2227 | |
| 6 | 07001-05190 | RING,BACK-UP | 1001- | |
| 7 | 07000-15190 | O-RING | 1001- | |
| 8 | 566-50-6A410 | PACKING | 2228- | |
| 8 | \0\566-50-42152 | PACKING | 1001-2227 | |
| 8 | (\2\566-50-42151) | PACKING | (1001-1135) | |
| 8A | 707-51-16650 | RING | 2228- | |
| 9 | 566-50-62160 | RETAINER | 1001- | |
| 10 | 566-50-11280 | BUSHING | 1001- | |
| 11 | 566-50-61230 | SEAL | 1001- | |
| 12 | 566-50-62120 | PLATE | 1001-1054 | |
| 13 | 01011-81000 | BOLT | 2228- | |
| 13 | 01010-81085 | BOLT | 1001-2227 | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 566-50-11461 | BEARING | 1001- | |
| 16 | 04065-09030 | RING | 1001- | |
| 561-86-67700 | VALVE ASS'Y | 1055- | ||
| 561-86-67500 | VALVE ASS'Y | 1001-1054 | ||
| 17 | 561-86-67710 | VALVE | 1055- | |
| 561-86-67510 | VALVE | 1001-1054 | ||
| 18 | 561-86-67520 | NIPPLE | 1001- | |
| 19 | 281-50-11721 | CORE,VALVE | 1001- | |
| 20 | 07000-51009 | O-RING | 1001-1054 | |
| 21 | 07048-01310 | PLUG | 1001-1054 | |
| 22 | 566-50-11350 | PACKING | 1001- | |
| 23 | 566-50-11301 | VALVE ASS'Y | 1001- | |
| 24 | 566-50-11350 | PACKING | 1001- | |
| 25 | 569-50-6B240 | COVER | 1001- | |
| 26 | 103-21-21260 | BOSS | 1001- | |
| 27 | 01010-81016 | BOLT | 1001- | |
| 28 | 01643-31032 | WASHER | 1001- | |
| 29 | 566-50-62190 | GUARD | 1001- | |
| 30 | 566-09-6A110 | CLAMP | 1055- | |
| 30 | 07281-12709 | CLAMP | 1001-1054 |
