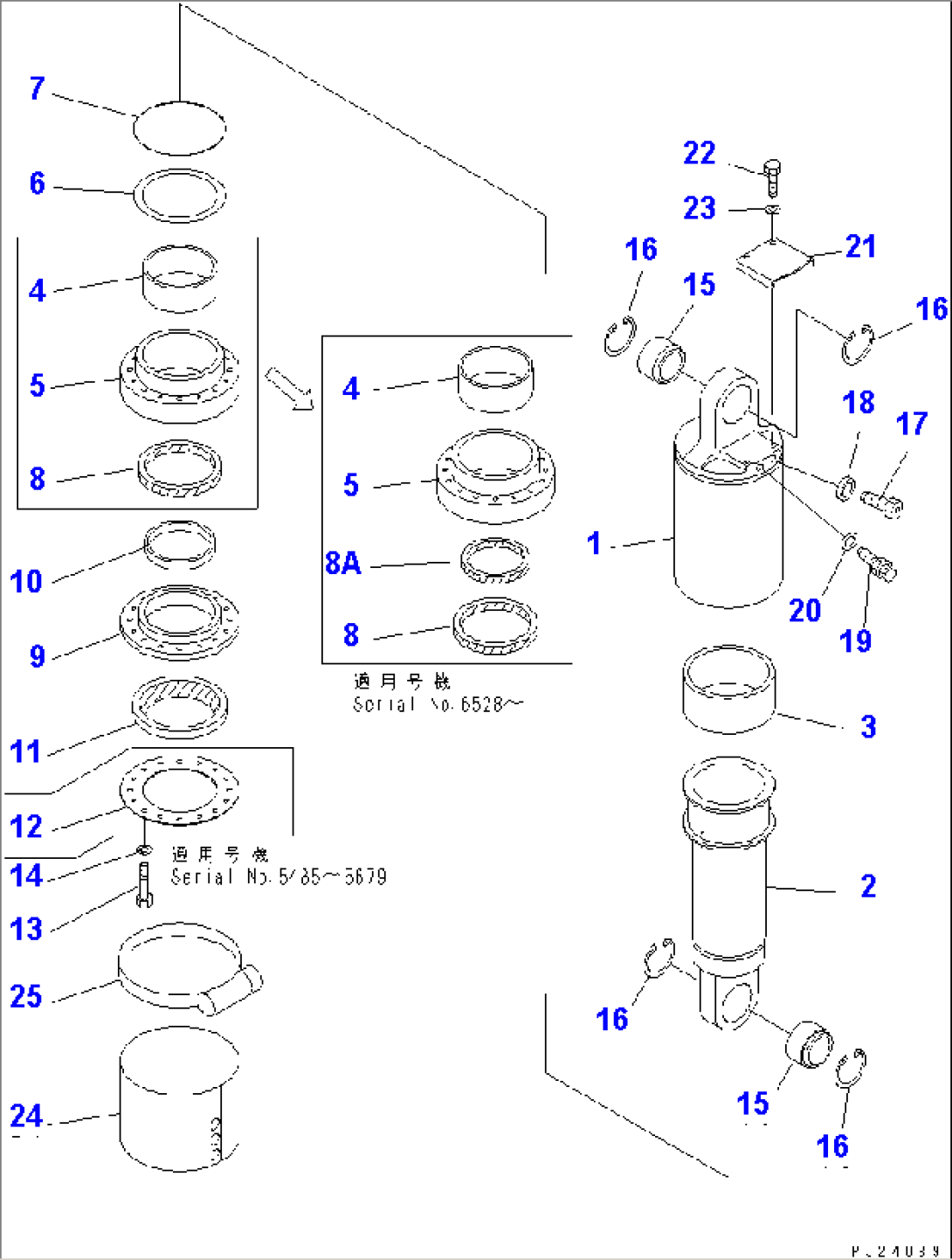

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-50-72005 | CYLINDER ASS'Y | 6528- | ||
| \0\566-50-72004 | CYLINDER ASS'Y | .-6527 | ||
| \0\566-50-72003 | CYLINDER ASS'Y | 5485-. | ||
| 1 | 566-50-62110 | CYLINDER | 5485- | |
| 2 | 566-50-62130 | ROD | 5485- | |
| 3 | 566-50-11170 | RING,WEAR | 5485- | |
| 4 | 566-50-82180 | BUSHING | 6528- | |
| 4 | 566-50-11181 | BUSHING | 5485-6527 | |
| 5 | 566-50-82150 | FLANGE | 6528- | |
| 5 | \0\566-50-62150 | FLANGE | 5485-6527 | |
| 6 | 07001-05190 | RING,BACK-UP | 5485- | |
| 7 | 07000-15190 | O-RING | 5485- | |
| 8 | 566-50-6A410 | PACKING | 6528- | |
| 8 | \0\566-50-42152 | PACKING | .-6527 | |
| 8 | \0\566-50-42151 | PACKING | 5485-. | |
| 8A | 707-51-16650 | RING,BUFFER | 6528- | |
| 9 | 566-50-62160 | RETAINER | 5485- | |
| 10 | 566-50-11280 | BUSHING | 5485- | |
| 11 | 566-50-61230 | SEAL | 5485- | |
| 12 | 566-50-62120 | PLATE | 5485-5679 | |
| 13 | 01011-81000 | BOLT | 6528- | |
| 13 | 01010-81085 | BOLT | 5485-6527 | |
| 14 | 01643-31032 | WASHER | 5485- | |
| 15 | 566-50-11461 | BEARING | 5485- | |
| 16 | 04065-09030 | RING | 5485- | |
| 17 | 566-50-11271 | VALVE | 5485- | |
| 18 | 566-50-11350 | PACKING | 5485- | |
| 19 | 566-50-11301 | VALVE ASS'Y | 5485- | |
| 20 | 566-50-11350 | PACKING | 5485- | |
| 21 | 569-50-6B240 | COVER | 5485- | |
| 22 | 01010-81016 | BOLT | 5485- | |
| 23 | 01643-31032 | WASHER | 5485- | |
| 24 | 566-50-62190 | GUARD | 5485- | |
| 25 | 566-09-6A110 | CLAMP | 5680- | |
| 25 | 07281-12709 | CLAMP | 5485-5679 |
