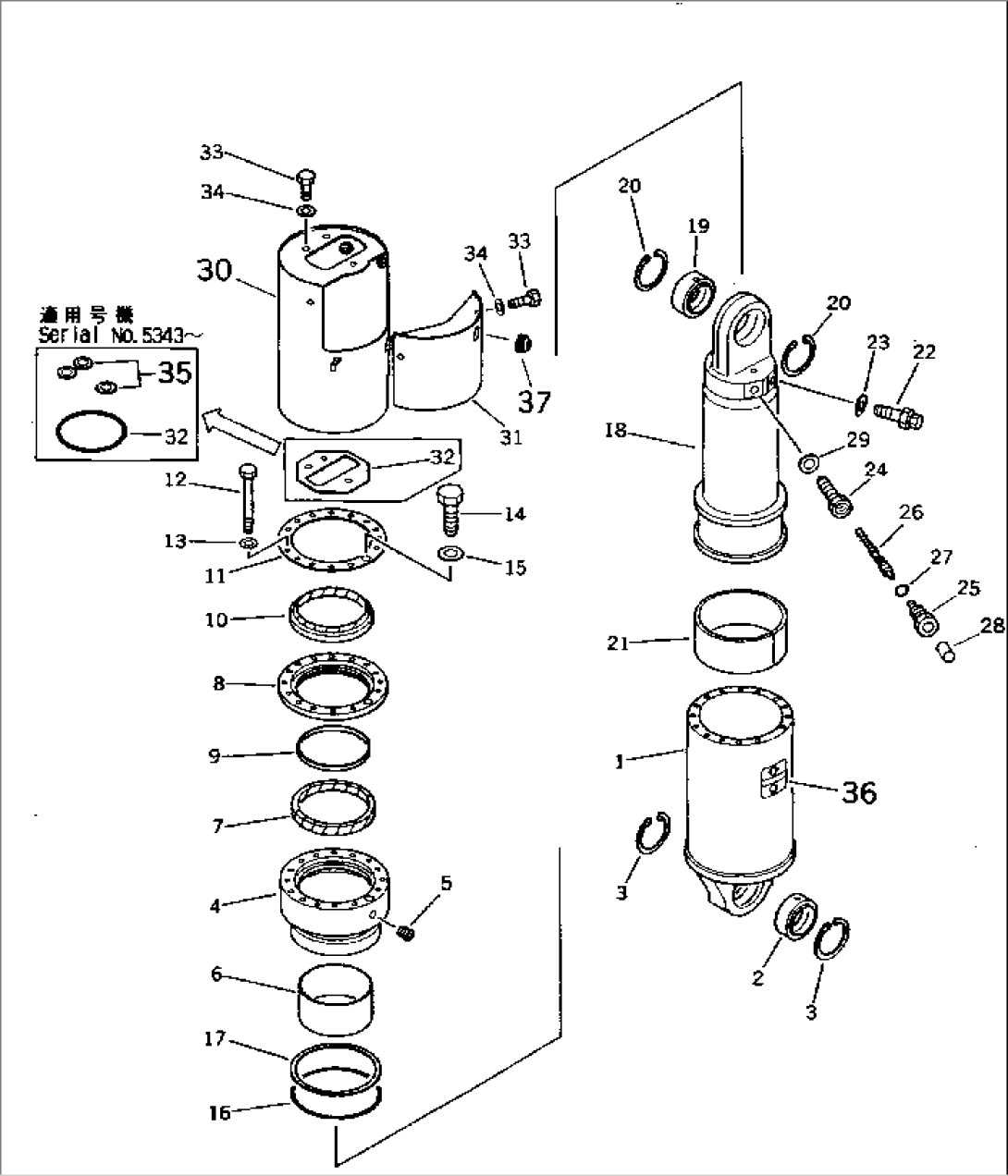

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-50-74002 | CYLINDER ASS'Y | 5343-5484 | ||
| 566-50-74001 | CYLINDER ASS'Y | 5001-5342 | ||
| (\2\566-50-74000) | CYLINDER ASS'Y | (5001-5107) | ||
| 1 | 566-50-42120 | CYLINDER | 5001-5484 | |
| 2 | 566-50-11461 | BEARING | 5001-5484 | |
| 3 | 04065-09030 | RING,SNAP | 5001-5484 | |
| 4 | 566-50-11153 | FLANGE | 5343-5484 | |
| 566-50-11152 | FLANGE | 5001-5342 | ||
| 5 | 07043-00108 | PLUG | 5001-5484 | |
| 6 | 566-50-11181 | BUSHING | 5343-5484 | |
| 566-50-11180 | BUSHING | 5001-5342 | ||
| 7 | 566-50-42151 | PACKING | 5001-5484 | |
| (\2\566-50-42150) | PACKING | (5001-5107) | ||
| 8 | 566-50-11133 | RETAINER | 5001-5484 | |
| (\2\566-50-11132) | RETAINER | (5001-5107) | ||
| 9 | 566-50-11280 | BUSHING | 5001-5484 | |
| 10 | 569-50-61230 | SEAL | 5001-5484 | |
| 11 | 566-50-11141 | PLATE | 5001-5484 | |
| 12 | 01010-31085 | BOLT | 5343-5484 | |
| 01010-51085 | BOLT | 5001-5342 | ||
| 13 | 01643-31032 | WASHER | 5001-5484 | |
| 14 | 566-50-21260 | VALVE | 5001-5484 | |
| (\2\566-50-11262) | VALVE | (5001-5107) | ||
| 15 | 566-50-11350 | PACKING | 5001-5484 | |
| 16 | 07000-15190 | O-RING | 5001-5484 | |
| 17 | 07001-05190 | RING,BACK-UP | 5001-5484 | |
| 18 | 566-50-72122 | ROD | 5343-5484 | |
| 566-50-72121 | ROD | 5001-5342 | ||
| (\2\566-50-72120) | ROD | (5001-5107) | ||
| 19 | 566-50-11461 | BEARING | 5001-5484 | |
| 20 | 04065-09030 | RING,SNAP | 5001-5484 | |
| 21 | 566-50-11170 | RING,WEAR | 5001-5484 | |
| 22 | 566-50-11301 | VALVE ASS'Y | 5001-5484 | |
| 23 | 566-50-11350 | PACKING | 5001-5484 | |
| 561-86-67500 | VALVE ASS'Y | 5001-5484 | ||
| 24 | 561-86-67510 | VALVE | 5001-5484 | |
| 25 | 561-86-67520 | NIPPLE | 5001-5484 | |
| 26 | 281-50-11721 | CORE,VALVE | 5001-5484 | |
| 27 | 07000-51009 | O-RING | 5001-5484 | |
| 28 | 07048-01310 | PLUG | 5001-5484 | |
| 29 | 566-50-11350 | PACKING | 5001-5484 | |
| 30 | 566-50-72211 | COVER | 5001-5484 | |
| (\2\566-50-72210) | COVER | (5001-5107) | ||
| 31 | 566-50-72110 | COVER | 5001-5484 | |
| 32 | 07000-05145 | O-RING | 5001-5484 | |
| (\2\566-50-11481) | SEAT | (5001-5107) | ||
| 33 | 01010-51020 | BOLT | 5001-5484 | |
| 34 | 01643-51032 | WASHER | 5001-5484 | |
| 35 | 01643-31032 | WASHER | 5343-5484 | |
| 36 | 566-50-41310 | PLATE,LEVEL | 5001-5484 | |
| 37 | 561-50-63191 | GROMMET | 5001-5484 |
