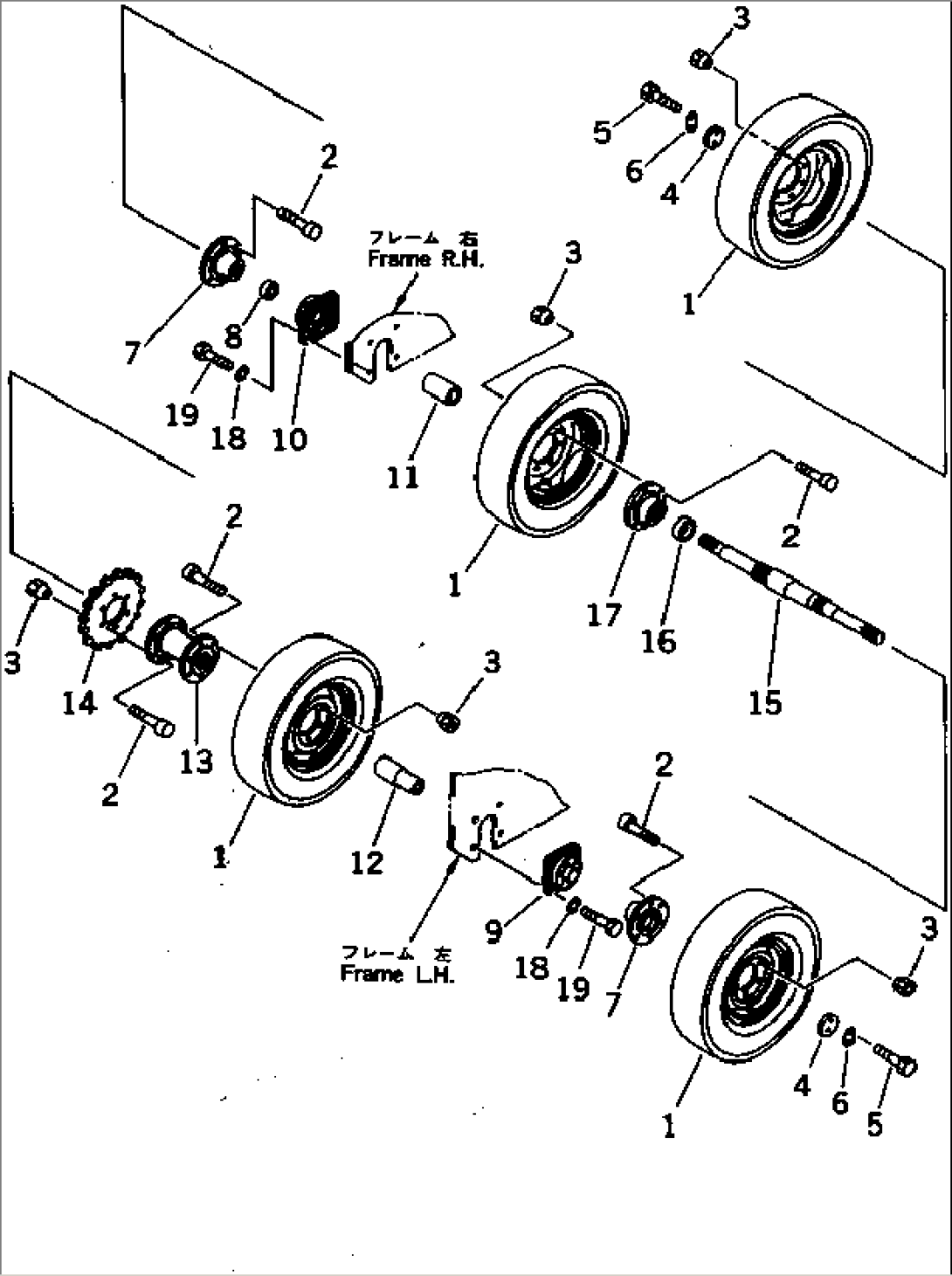

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 266-57-71101 | TIRE | 1201- | |
| (\2\257-70-31100) | TIRE | (1201-1562) | ||
| 266-57-71131 | RIM,WHEEL | 1201- | ||
| (\2\257-70-31130) | RIM,WHEEL | (1201-1562) | ||
| 2 | 257-40-11411 | BOLT,HUB | 1201- | |
| 3 | 258-70-11320 | NUT,HUB | 1201- | |
| 4 | 257-40-11433 | WASHER | 1201- | |
| 5 | 01010-51230 | BOLT | 1201- | |
| 6 | 257-40-11492 | WASHER,LOCK | 1201- | |
| 7 | 257-40-21850 | HUB | 1201- | |
| 8 | 266-57-71450 | SPACER | 1201- | |
| 9 | 267-22-41510 | BEARING | 1201- | |
| 10 | 267-22-31310 | BEARING | 1201- | |
| 11 | 257-40-31450 | SPACER | 1201- | |
| 12 | 266-57-71820 | SPACER | 1201- | |
| 13 | 258-57-11830 | SPACER | 1201- | |
| 14 | 257-40-21840 | SPROCKET | 1201- | |
| 15 | 266-57-71810 | SHAFT | 1201- | |
| 16 | 257-40-11862 | SPACER | 1201- | |
| 17 | 258-57-11860 | HUB | 1201- | |
| 18 | 01602-22060 | WASHER | 1201- | |
| 19 | 01010-51260 | BOLT | 1201- |
