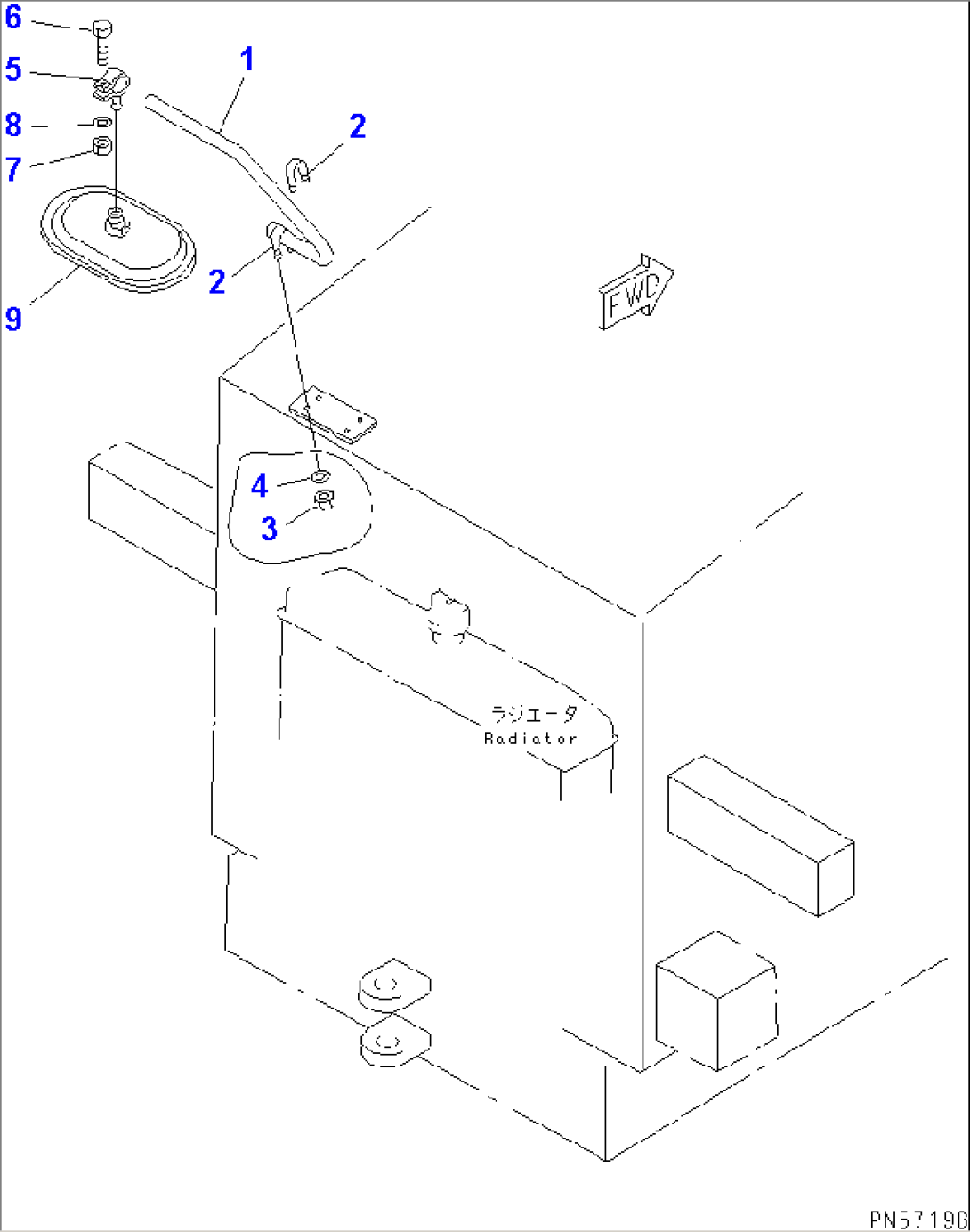

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 237-06-14230 | STAY | 1001- | |
| 2 | 07283-22746 | CLIP | 1143- | |
| 3 | 01582-11006 | NUT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 232-06-15151 | PIVOT | 1001- | |
| 6 | 01010-50825 | BOLT | 1001- | |
| 7 | 01580-10806 | NUT | 1001- | |
| 8 | 01643-30823 | WASHER | 1001- | |
| 9 | 08174-10001 | MIRROR | 1001- |
