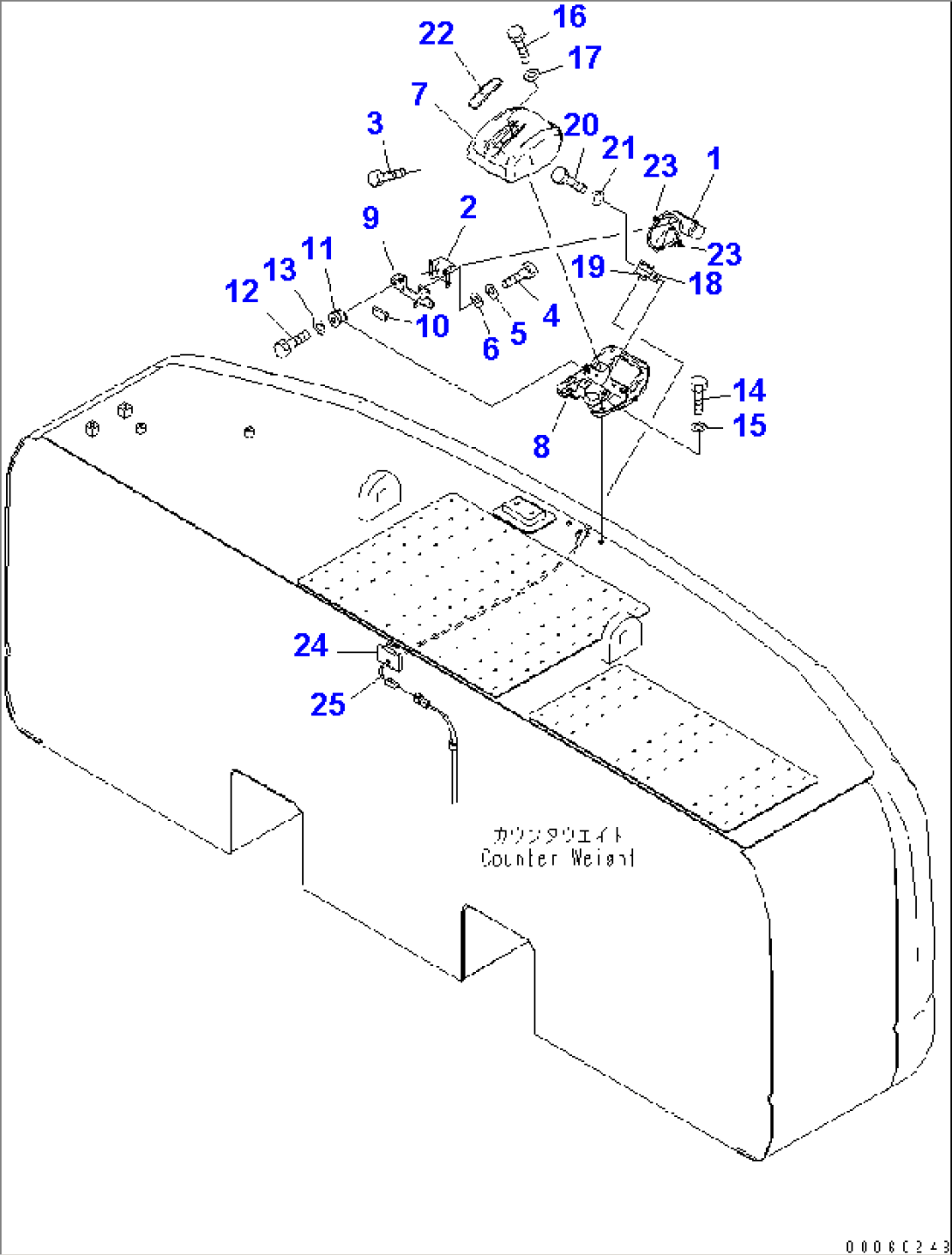

| Item | Part No. | Part Name | Qty | Serial No. |
| 7835-33-1001 | CAMERA ASSEMBLY | K50008- | ||
| 7835-33-1000 | CAMERA ASSEMBLY | K50001-K50007 | ||
| 1 | \6\ | CAMERA | K50001- | |
| 2 | \6\ | BRACKET | K50008- | |
| 2 | \6\ | BRACKET | K50001-K50007 | |
| 3 | \6\ | BOLT | K50001- | |
| 4 | \6\ | BOLT | K50001- | |
| 5 | \6\ | WASHER | K50001- | |
| 6 | \6\ | WASHER | K50001- | |
| 7 | 207-06-76420 | COVER | K50001- | |
| 8 | 207-06-76431 | COVER | K50001- | |
| 9 | 207-06-76440 | BRACKET | K50001- | |
| 10 | 207-06-76460 | SHEET | K50001- | |
| 11 | 20Y-810-1240 | CUSHION | K50001- | |
| 12 | 01010-80835 | BOLT | K50001- | |
| 13 | 01643-30823 | WASHER | K50001- | |
| 14 | 01010-81230 | BOLT | K50263- | |
| 14 | 01010-81240 | BOLT | K50001-K50262 | |
| 15 | 01643-31232 | WASHER | K50001- | |
| 16 | 01010-80616 | BOLT | K50001- | |
| 17 | 01643-30623 | WASHER | K50001- | |
| 18 | 04434-53211 | CLIP | K50001- | |
| 19 | 07095-00317 | CUSHION | K50001- | |
| 20 | 01010-81016 | BOLT | K50263- | |
| 20 | 01010-81020 | BOLT | K50001-K50262 | |
| 21 | 01643-31032 | WASHER | K50001- | |
| 22 | 207-06-76451 | COVER | K50001- | |
| 23 | 08059-00310 | CLIP | K50001- | |
| 24 | 207-06-76490 | SHEET | K50001- | |
| 25 | 207-06-76310 | CABLE | K50001- |
