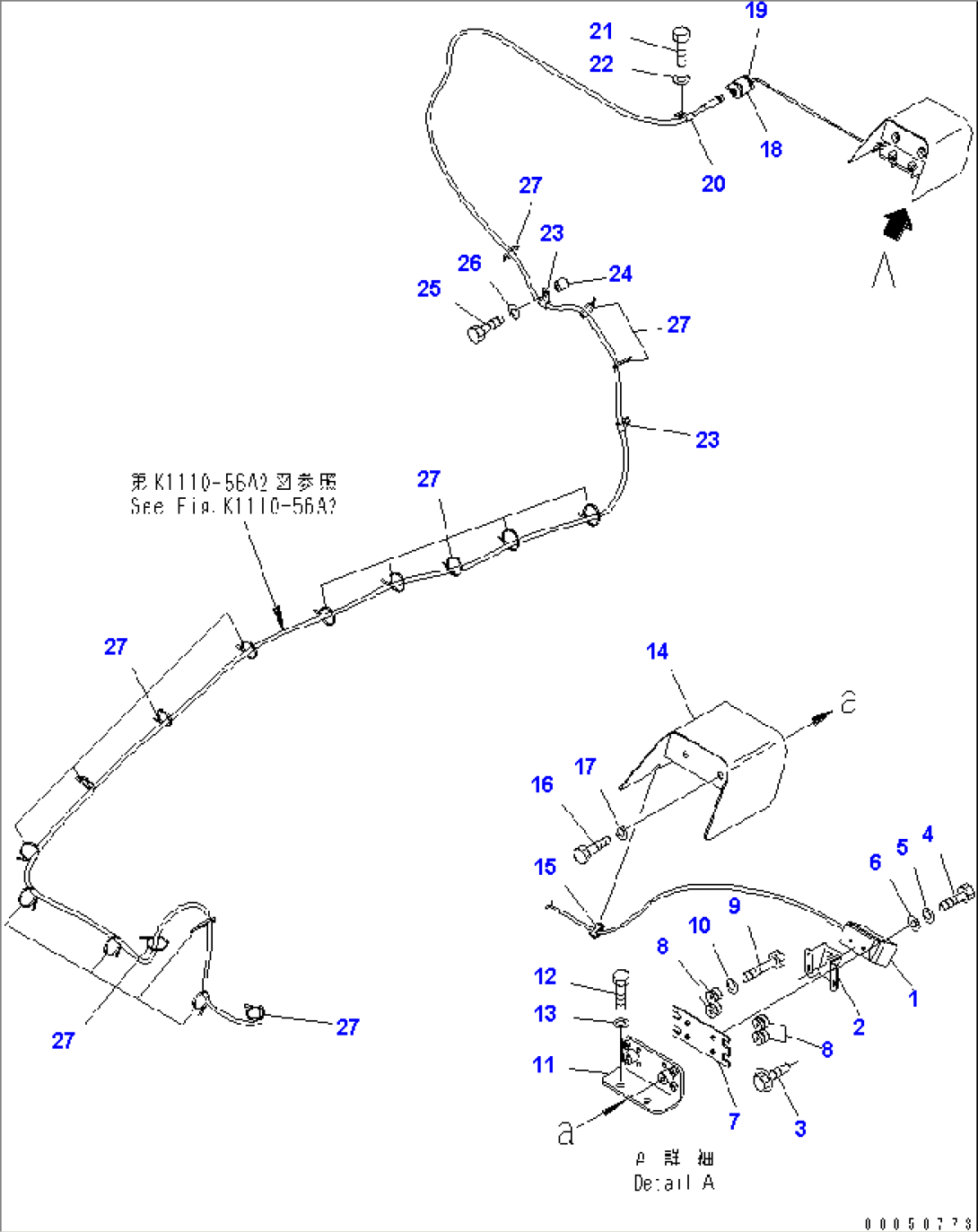

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7835-33-1100 | CAMERA | K50001-K52292 | |
| 2 | 7835-33-1201 | BRACKET | K51182-K52292 | |
| 7835-33-1200 | BRACKET | K50001-K51181 | ||
| 3 | 7835-33-1310 | BOLT | K50001-K52292 | |
| 4 | 7835-33-1320 | BOLT | K50001-K52292 | |
| 5 | 7835-33-1330 | WASHER | K50001-K52292 | |
| 6 | 7835-33-1340 | WASHER | K50001-K52292 | |
| 7 | 20Y-06-41670 | BRACKET | K50001-K52292 | |
| 8 | 20Y-810-1240 | CUSHION | K50001-K52292 | |
| 9 | 01010-80835 | BOLT | K50001-K52292 | |
| 10 | 01643-30823 | WASHER | K50001-K52292 | |
| 11 | 20Y-06-41661 | BRACKET | K50001-K52292 | |
| 12 | 01010-81030 | BOLT | K50001-K52292 | |
| 13 | 01643-31032 | WASHER | K50001-K52292 | |
| 14 | 20Y-06-41681 | COVER | K50001-K52292 | |
| 15 | 201-54-13210 | GROMMET | K50001-K52292 | |
| 16 | 01010-81020 | BOLT | K50001-K52292 | |
| 17 | 01643-31032 | WASHER | K50001-K52292 | |
| 18 | 04434-53211 | CLIP | K50001-K52292 | |
| 19 | 07095-00317 | CUSHION | K50001-K52292 | |
| 20 | 04434-51010 | CLIP | K50001-K52292 | |
| 21 | 01010-81020 | BOLT | K50001-K52292 | |
| 22 | 01643-31032 | WASHER | K50001-K52292 | |
| 23 | 04434-51012 | CLIP | K50001-K52292 | |
| 24 | 195-33-11220 | SPACER | K50001-K52292 | |
| 25 | 01010-81250 | BOLT | K50001-K52292 | |
| 26 | 01643-31232 | WASHER | K50001-K52292 | |
| 27 | 08034-20536 | BAND | K50001-K52292 |
