| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08192-24200 | CONNECTOR | C62001- | |
| 2 | 08192-14400 | WEDGE | C62001- | |
| 3 | 08191-00770 | PLUG | C62001- | |
| 4 | 207-06-76270 | PLATE | C62001- | |
| 5 | 01010-81220 | BOLT | C62001- | |
| 6 | 01643-31232 | WASHER | C62001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 8 s/n c60001 up
- Electrical system
- Rear view monitoring system less(#c62001 )
Поиск по каталогу

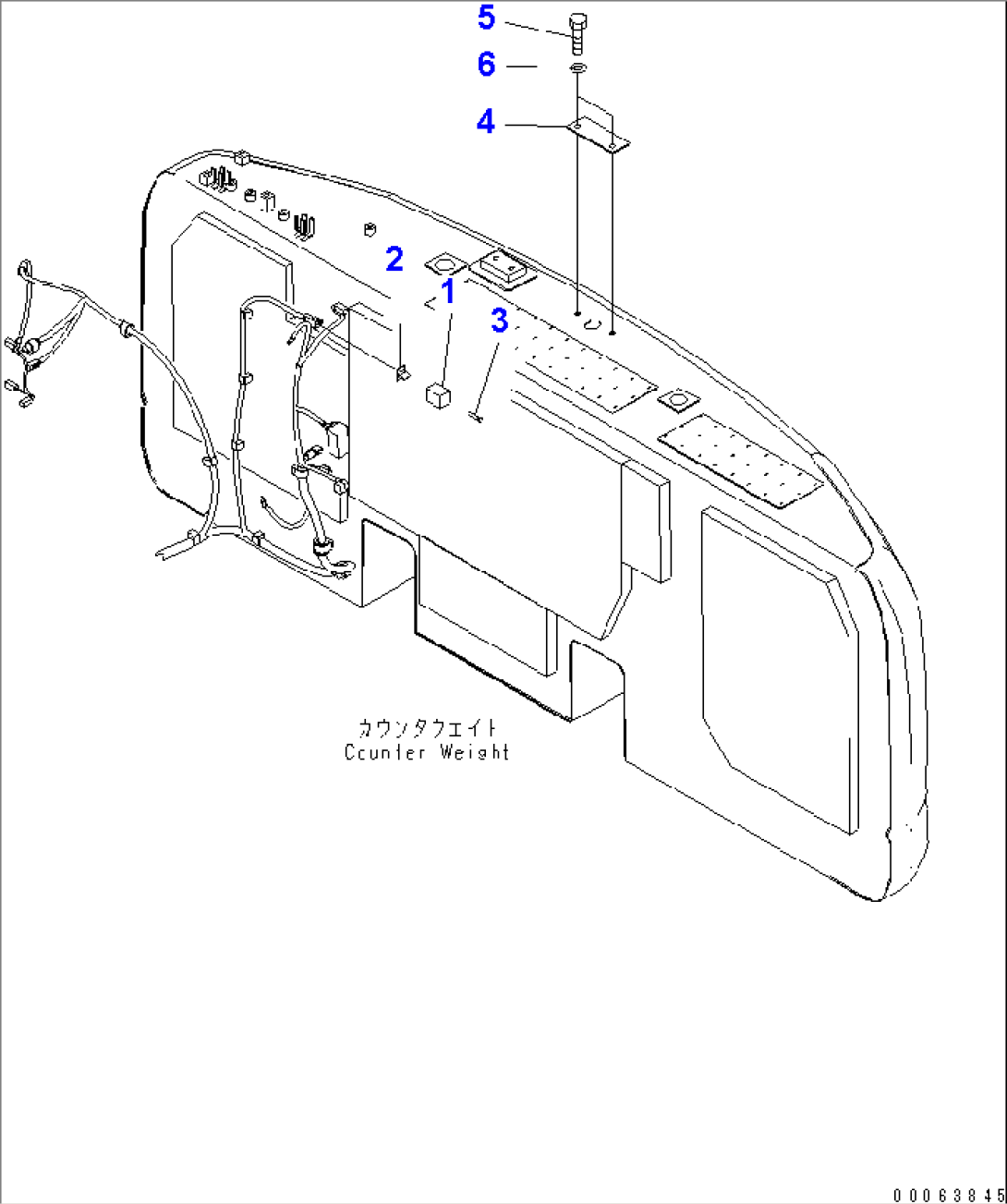

REAR VIEW MONITORING SYSTEM LESS(#C62001-)
