| Item | Part No. | Part Name | Qty | Serial No. |
| (418-23-20000) | AXLE ASS'Y,REAR | 50001- | ||

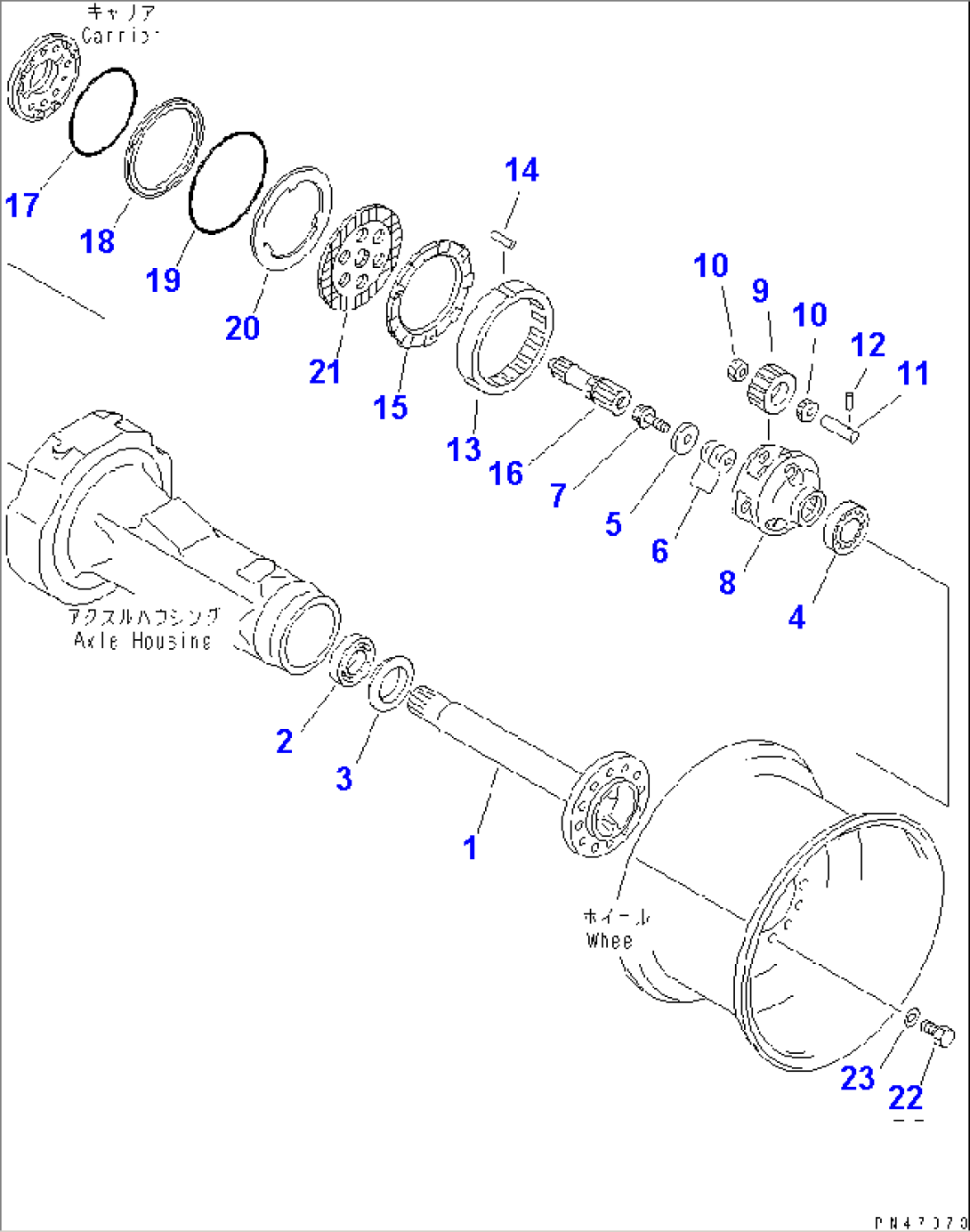

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3201 TO 3221. | ||||
| 1 | 418-22-22450 | SHAFT | 50001- | |
| 2 | 418-22-12850 | BEARING | 50001- | |
| 3 | 418-22-12460 | SEAL | 50001- | |
| 4 | 418-22-12840 | BEARING | 50001- | |
| 5 | 418-22-22350 | HOLDER | 50001- | |
| 6 | 418-22-21460 | SHIM, 0.05MM | 50001- | |
| 6 | 418-22-21470 | SHIM, 0.2MM | 50001- | |
| 6 | 418-22-21480 | SHIM, 0.5MM | 50001- | |
| 7 | 01438-02000 | BOLT | 50001- | |
| 8 | 418-22-22610 | CARRIER | 50001- | |
| 9 | 418-22-22530 | GEAR | 50001- | |
| 10 | 417-22-22810 | BEARING,CONE | 50001- | |
| 11 | 418-22-12510 | SHAFT | 50001- | |
| 12 | 419-22-12570 | PIN | 50001- | |
| 13 | 418-22-12540 | GEAR | 50001- | |
| 14 | 419-22-12581 | PIN | 50001- | |
| 15 | 418-33-21260 | PLATE | 50001- | |
| 16 | 418-22-22420 | SHAFT | 50001- | |
| 17 | 418-33-21420 | O-RING | 50001- | |
| 18 | 418-33-21120 | PISTON | 50001- | |
| 19 | 418-33-21410 | O-RING | 50001- | |
| 20 | 418-33-21250 | PLATE | 50001- | |
| 21 | 418-33-21240 | DISC | 50001- | |
| 22 | 419-22-12870 | BOLT | 50001- | |
| 23 | 01643-32460 | WASHER | 50001- |
