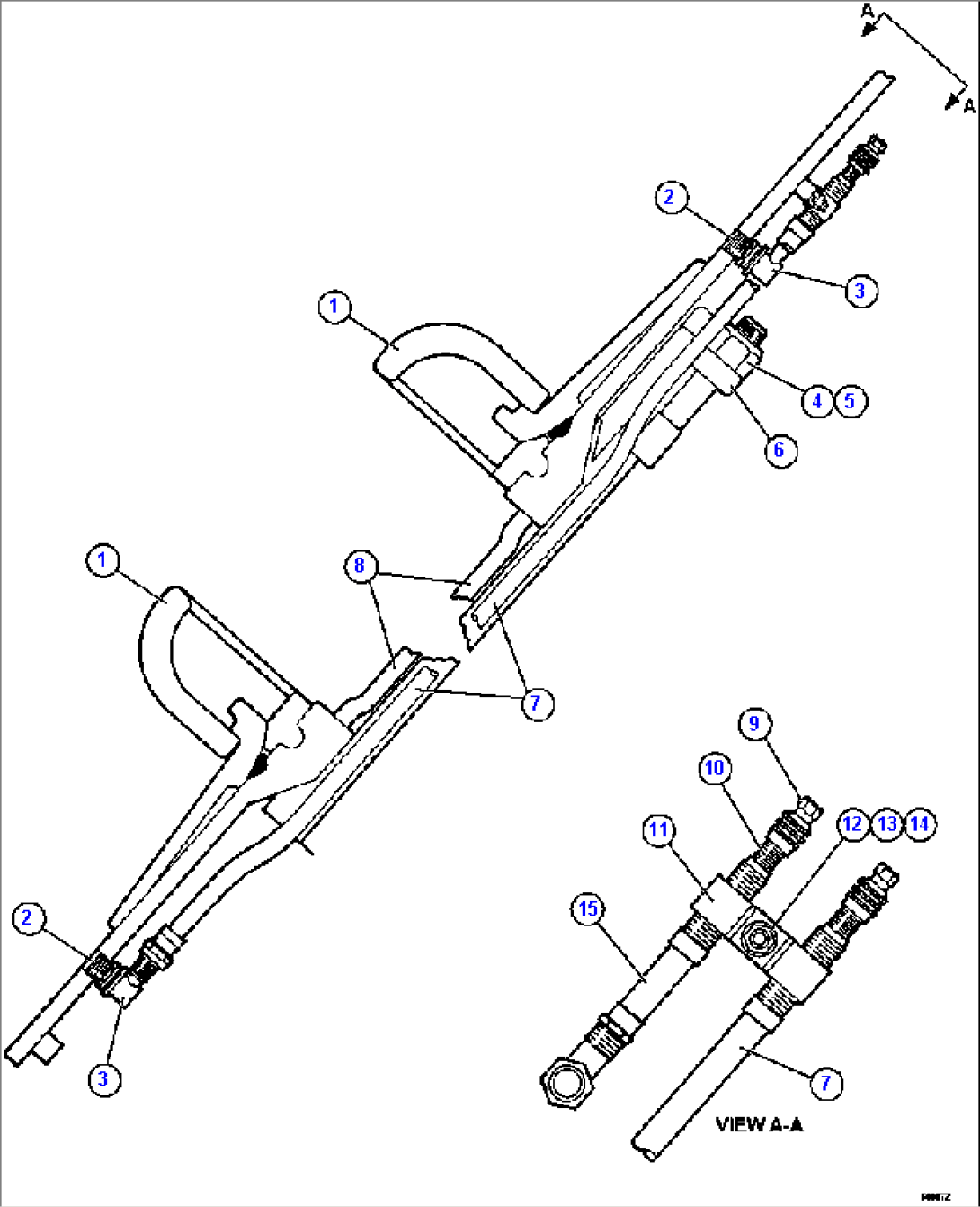

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EL6268 | RIM ASSEMBLY (SEE FIG 56033) | ||
| 2 | PB2612 | SPUD, COLLIE | ||
| 3 | VS5592 | STEM - 90 DEG SWIVEL | ||
| 4 | EM5453 | STUD - 1" - 14UNS X 6" (SEE REAR BRAKE INSTL PAGE) | ||
| 5 | TA2572 | NUT - 1" - 14UNS | ||
| 6 | EL1123 | RETAINER, WHEEL | ||
| 7 | PB7298 | TUBE | ||
| 8 | PB7299 | SPACER (BETWEEN OUTER & INNER RIM) | ||
| 9 | WA2670 | CAP, VALVE | ||
| 10 | VJ8012 | HOUSING, CORE | ||
| 11 | WA4649 | CLAMP, VINYL - 11/16" | ||
| 12 | C1601 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 13 | C0312 | LOCKWASHER - 3/8" | ||
| 14 | C1547 | FLAT WASHER - 3/8" | ||
| 15 | PB3091 | TUBE | ||
| 15 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
