| Item | Part No. | Part Name | Qty | Serial No. |

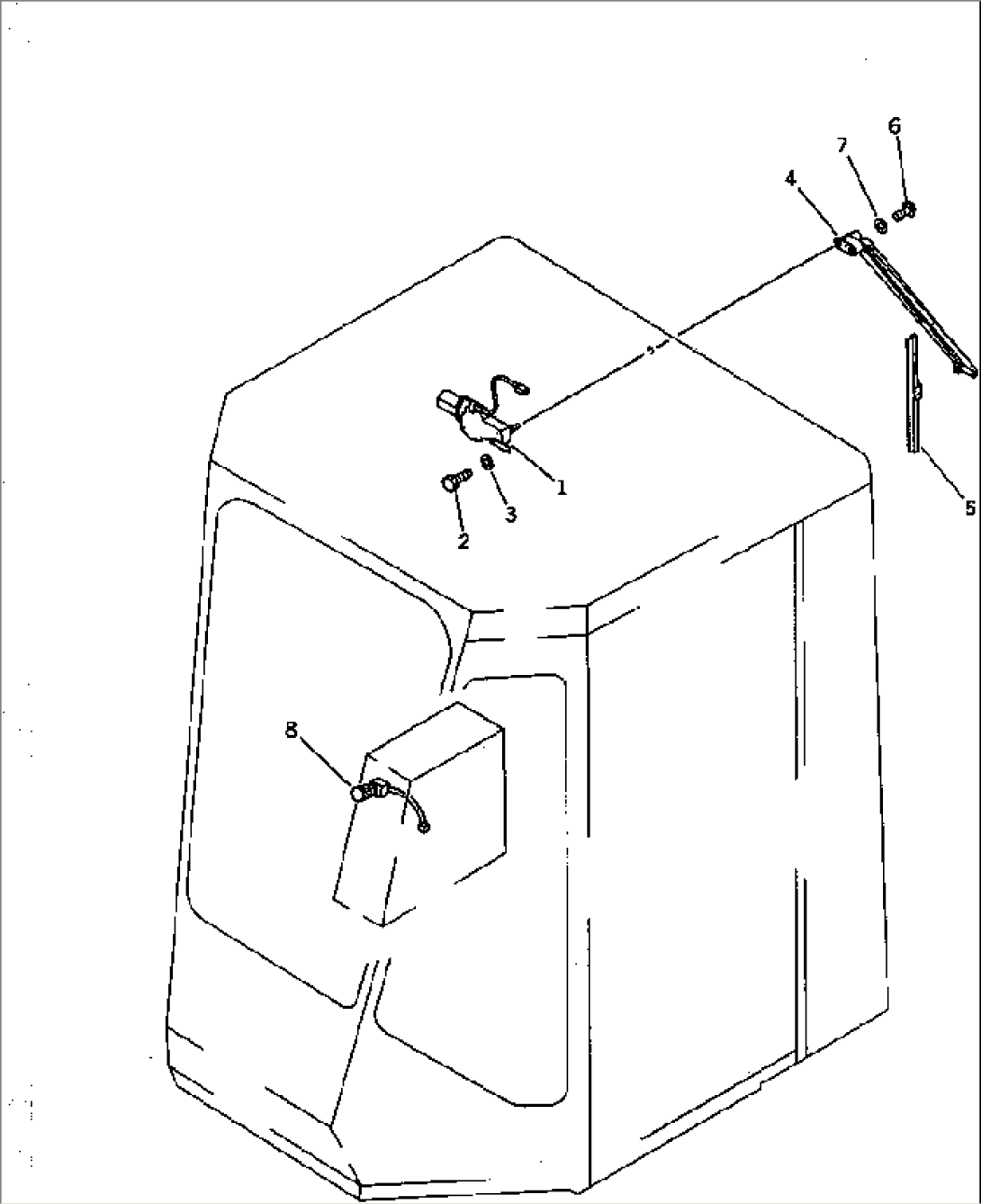

| 419-940-1000 | REAR WIPER ASS'Y | 10001- | ||
| 1 | 417-54-15141 | MOTOR,WIPER | .- | |
| 1 | \0\417-54-15140 | MOTOR,WIPER | 10001-. | |
| 2 | 01010-50816 | BOLT | 10001- | |
| 3 | 01643-30823 | WASHER | 10001- | |
| 4 | 417-54-15151 | ARM,WIPER | .- | |
| 4 | \0\417-54-15150 | ARM,WIPER | 10001-. | |
| 5 | 425-54-15330 | BLADE,WIPER | 10001- | |
| 6 | 01220-40516 | SCREW | 10001- | |
| 7 | 01641-20508 | WASHER | 10001- | |
| 8 | 421-06-16150 | SWITCH,WIPER, REAR | 10001- |
