| Item | Part No. | Part Name | Qty | Serial No. |

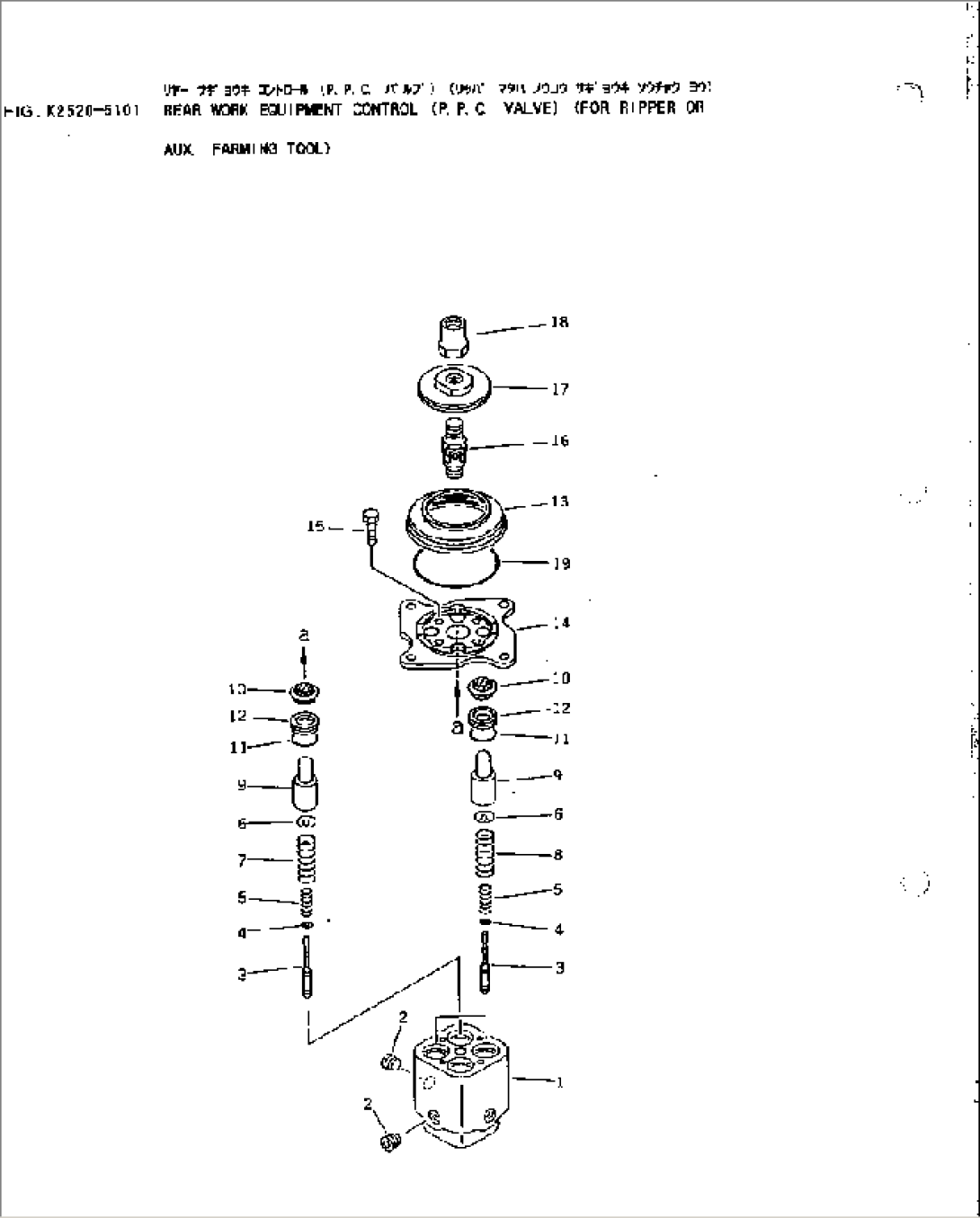

| 702-16-01200 | PILOT VALVE | 3001- | ||
| 1 | \6\ | BODY | 3001- | |
| 2 | 07043-50312 | PLUG | 3001- | |
| 3 | \6\ | VALVE | 3001- | |
| 4 | 702-16-51140 | SHIM, 0.30MM | 3001- | |
| 5 | 702-16-53131 | SPRING | 3001- | |
| 6 | 702-16-53140 | RETAINER | 3001- | |
| 7 | 702-16-53160 | SPRING | 3001- | |
| 8 | 702-16-53150 | SPRING | 3001- | |
| 9 | 702-16-53170 | PISTON | 3001- | |
| 10 | 702-16-51270 | SEAL | 3001- | |
| 11 | 07000-02020 | O-RING | 3001- | |
| 12 | 702-16-53290 | COLLAR | 3001- | |
| 13 | 702-16-53190 | BOOT | 3001- | |
| 14 | 702-16-53210 | PLATE | 3001- | |
| 15 | 01010-50616 | BOLT | 3001- | |
| 16 | 702-16-51240 | JOINT | 3001- | |
| 17 | 702-16-53220 | DISC | 3001- | |
| 18 | 702-16-53230 | NUT | 3001- | |
| 19 | 07000-02070 | O-RING | 3001- |
