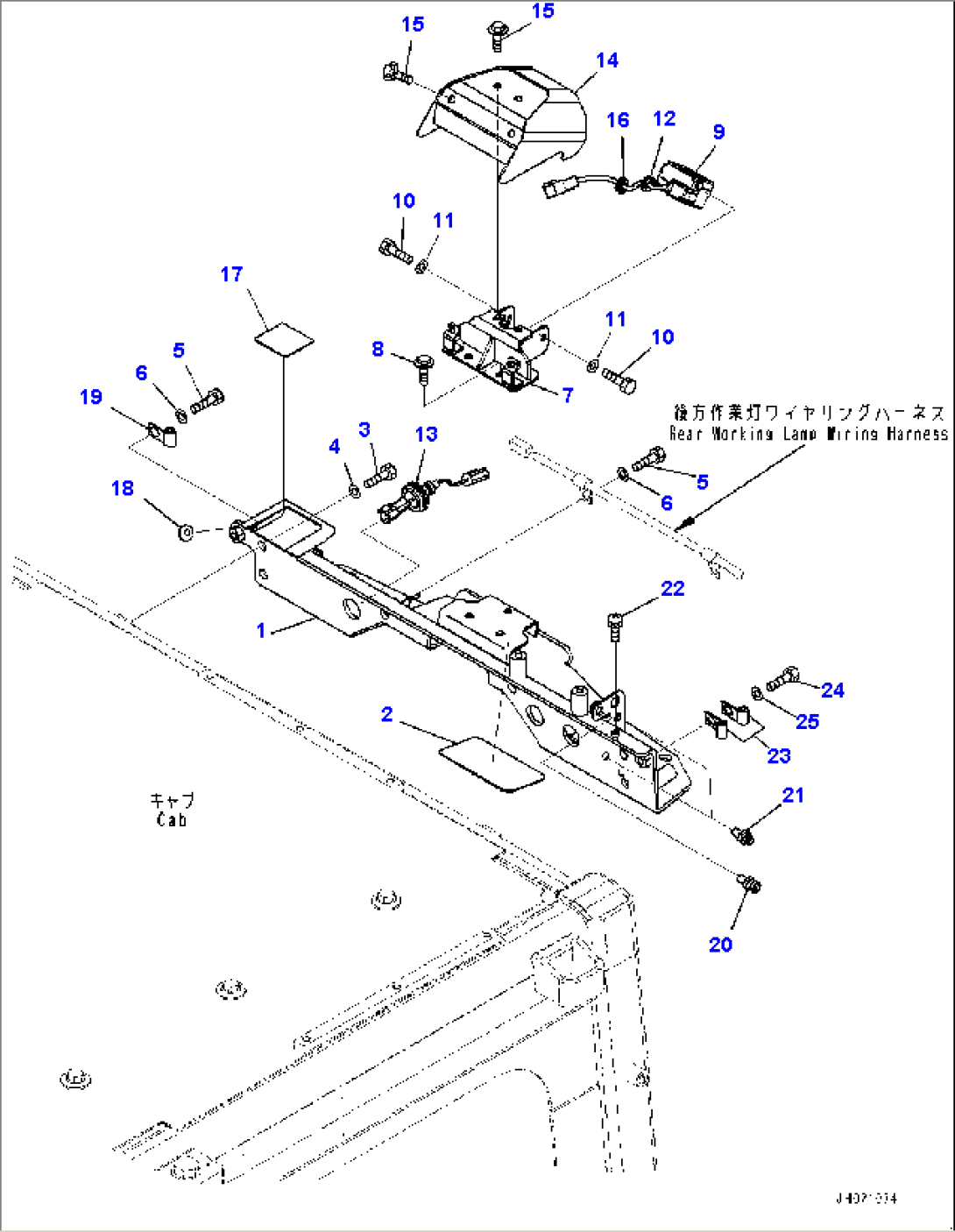

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-Y79-7181 | Bracket | 22083- | |
| 2 | 17A-979-5190 | Rubber | 22083- | |
| 3 | 01010-81225 | Bolt | 22083- | |
| 4 | 01643-31232 | Washer | 22083- | |
| 5 | 01010-81225 | Bolt | 22083- | |
| 6 | 01643-31232 | Washer | 22083- | |
| 7 | 14X-Y79-7110 | Bracket | 22083- | |
| 8 | 01435-00816 | Bolt | 22083- | |
| 9 | 7835-33-2001 | Camera | 22083- | |
| 10 | 01010-80616 | Bolt | 22083- | |
| 11 | 01643-30623 | Washer | 22083- | |
| 12 | 14X-06-63660 | Grommet | 22083- | |
| 13 | 14X-06-71030 | Wiring Harness | 22083- | |
| 14 | 14X-Y79-7160 | Cover | 22083- | |
| 15 | 01435-00816 | Bolt | 22083- | |
| 16 | 14X-06-63660 | Grommet | 22083- | |
| 17 | 17A-06-51950 | Plate | 22083- | |
| 18 | 22T-05-13110 | Grommet | 22083- | |
| 19 | 04434-50812 | Clip | 22083- | |
| 20 | 14X-06-63850 | Plug | 22083- | |
| 21 | 14X-06-63860 | Plug | 22083- | |
| 22 | 01023-10306 | Screw | 22083- | |
| 23 | 04434-50812 | Clip | 22083- | |
| 24 | 01010-81225 | Bolt | 22083- | |
| 25 | 01643-31232 | Washer | 22083- |
