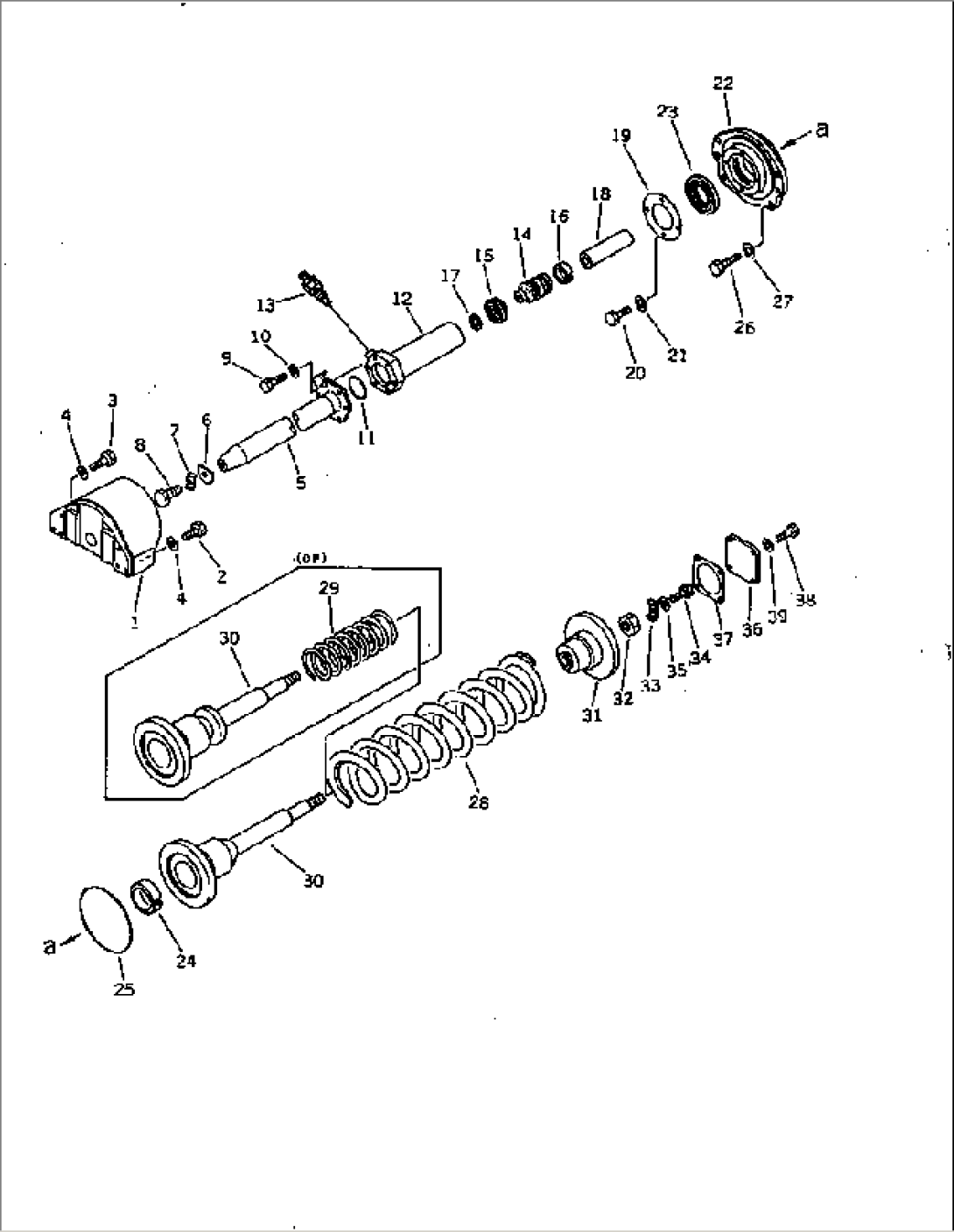

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-30-14311 | YOKE,FRONT IDLER, L.H. | 45001- | |
| 1 | 144-30-14321 | YOKE,FRONT IDLER, R.H. | 45001- | |
| 2 | 01010-51655 | BOLT | 45001- | |
| 3 | 01010-51670 | BOLT | 45001- | |
| 4 | 01602-21648 | WASHER,SPRING | 45001- | |
| 5 | 144-30-14251 | ROD | 45001- | |
| 6 | 141-30-14130 | WASHER | 45001- | |
| 7 | 141-30-14140 | PLATE,LOCK | 45001- | |
| 8 | 01010-51840 | BOLT | 45001- | |
| 9 | 01010-51235 | BOLT | 45001- | |
| 10 | 01602-21236 | WASHER,SPRING | 45001- | |
| 11 | 07000-15068 | O-RING | 45001- | |
| 141-30-00554 | CYLINDER ASS'Y | 45001- | ||
| 12 | 141-30-34211 | CYLINDER | 45001- | |
| 13 | 07959-20000 | VALVE,LUBRICATING | 45001- | |
| 14 | 131-30-44140 | PISTON | 45001- | |
| 15 | 09370-00070 | U-PACKING | 45001- | |
| 16 | 07155-00720 | RING | 45001- | |
| 17 | 04064-04518 | RING,SNAP | 45001- | |
| 18 | 141-30-34160 | COLLAR | 45001- | |
| 19 | 141-30-34270 | COVER | 45001- | |
| 20 | 01010-51225 | BOLT | 45001- | |
| 21 | 01602-21236 | WASHER,SPRING | 45001- | |
| 22 | 141-30-34263 | COVER | 45001- | |
| 23 | 141-30-34230 | SEAL,OIL | 45001- | |
| 24 | 141-30-34140 | BUSHING | 45001- | |
| 25 | 07000-05225 | O-RING | 45001- | |
| 26 | 01010-52055 | BOLT | 45001- | |
| 27 | 01602-22060 | WASHER,SPRING | 45001- | |
| 28 | 141-30-34111 | SPRING,RECOIL | .- | |
| 28 | 141-30-34110 | SPRING,RECOIL | 45001-. | |
| 29 | 144-30-14150 | SPRING,(DOUBLE RECOIL SPRING) (OP) | 45001- | |
| 30 | 141-30-34120 | BOLT | 45001- | |
| 30 | 144-30-14110 | BOLT,(DOUBLE RECOIL SPRING) (OP) | 45001- | |
| 31 | 144-871-2250 | PILOT | .- | |
| 31 | 141-30-34151 | PILOT | 45001-. | |
| 31 | 144-30-14130 | PILOT,(DOUBLE RECOIL SPRING) (OP) | 45001- | |
| 32 | 01580-03629 | NUT | 45001- | |
| 33 | 141-30-34171 | PLATE,LOCK | 45001- | |
| 34 | 01010-51016 | BOLT | 45001- | |
| 35 | 01602-21030 | WASHER,SPRING | 45001- | |
| 36 | 144-30-14330 | COVER | 45001- | |
| 37 | 145-30-34340 | PACKING | 45001- | |
| 38 | 01010-51225 | BOLT | 45001- | |
| 39 | 01602-21236 | WASHER,SPRING | 45001- |
