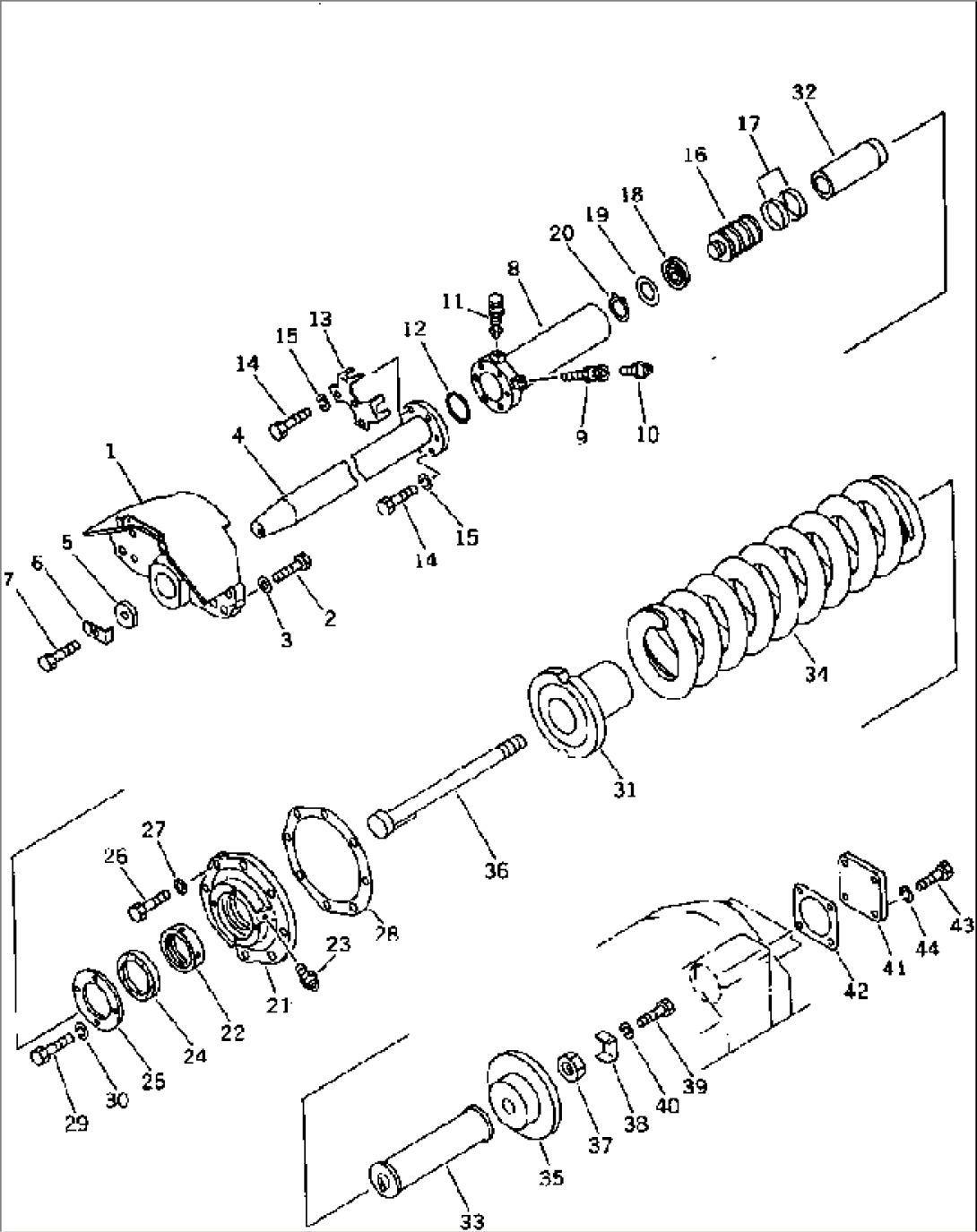

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-30-11497 | YOKE | 3001- | |
| 2 | 01010-52065 | BOLT | 3001- | |
| 3 | 01643-32060 | WASHER | 3001- | |
| 4 | 154-30-44220 | SHAFT | 3001- | |
| 5 | 154-30-11332 | WASHER | 3001- | |
| 6 | 154-30-11540 | LOCK | 3001- | |
| 7 | 01010-52050 | BOLT | 3001- | |
| 8 | 154-30-11145 | CYLINDER | 3146- | |
| \0\154-30-11141 | CYLINDER | 3001-3145 | ||
| 9 | 07959-30000 | VALVE,LUBRICATION | 3001- | |
| 10 | 07020-00000 | FITTING,GREASE | 3001- | |
| 11 | 198-30-14420 | PLUG | 3001- | |
| 12 | 07000-15070 | O-RING | 3001- | |
| 13 | 154-30-12321 | COVER,STOPPER | 3001- | |
| 14 | 01010-51240 | BOLT | 3001- | |
| 15 | 01602-21236 | WASHER,SPRING | 3001- | |
| 16 | 154-30-11771 | PISTON | 3001- | |
| 17 | 150-30-13430 | RING | 3001- | |
| 18 | 150-30-13442 | PACKING | 3001- | |
| 19 | 150-30-13480 | RING | 3001- | |
| 20 | 150-30-13460 | RING,SNAP | 3001- | |
| 154-30-00730 | COVER ASS'Y | 3001- | ||
| 21 | \6\ | COVER | 3001- | |
| 22 | 154-30-12170 | BUSHING | 3001- | |
| 23 | 07020-00000 | FITTING,GREASE | 3001- | |
| 24 | 07019-00100 | SEAL,DUST | 3001- | |
| 25 | 154-30-11192 | PLATE | 3001- | |
| 26 | 01010-52060 | BOLT | 3001- | |
| 27 | 01643-32060 | WASHER | 3001- | |
| 28 | 154-30-44131 | PACKING | 3651- | |
| \0\154-30-44130 | PACKING | 3001-3650 | ||
| 29 | 01010-51022 | BOLT | 3001- | |
| 30 | 01602-21030 | WASHER,SPRING | 3001- | |
| 31 | 154-30-44140 | PILOT | 3001- | |
| 32 | 154-30-44150 | PIPE | 3001- | |
| 33 | 154-30-44160 | STOPPER | 3001- | |
| 34 | 154-30-44210 | SPRING,RECOIL | 3001- | |
| 35 | 154-30-44180 | PILOT | 3001- | |
| 36 | 154-30-44170 | SHAFT | 3001- | |
| 37 | 01580-13629 | NUT | 3001- | |
| 38 | 154-30-11763 | WASHER | 3001- | |
| 39 | 01010-51020 | BOLT | 3001- | |
| 40 | 01602-21030 | WASHER,SPRING | 3001- | |
| 41 | 154-30-44190 | COVER | 3001- | |
| 42 | 154-30-11712 | PACKING | 3651- | |
| \0\154-30-11262 | PACKING | 3001-3650 | ||
| 43 | 01010-51230 | BOLT | 3001- | |
| 44 | 01602-21236 | WASHER,SPRING | 3001- |
