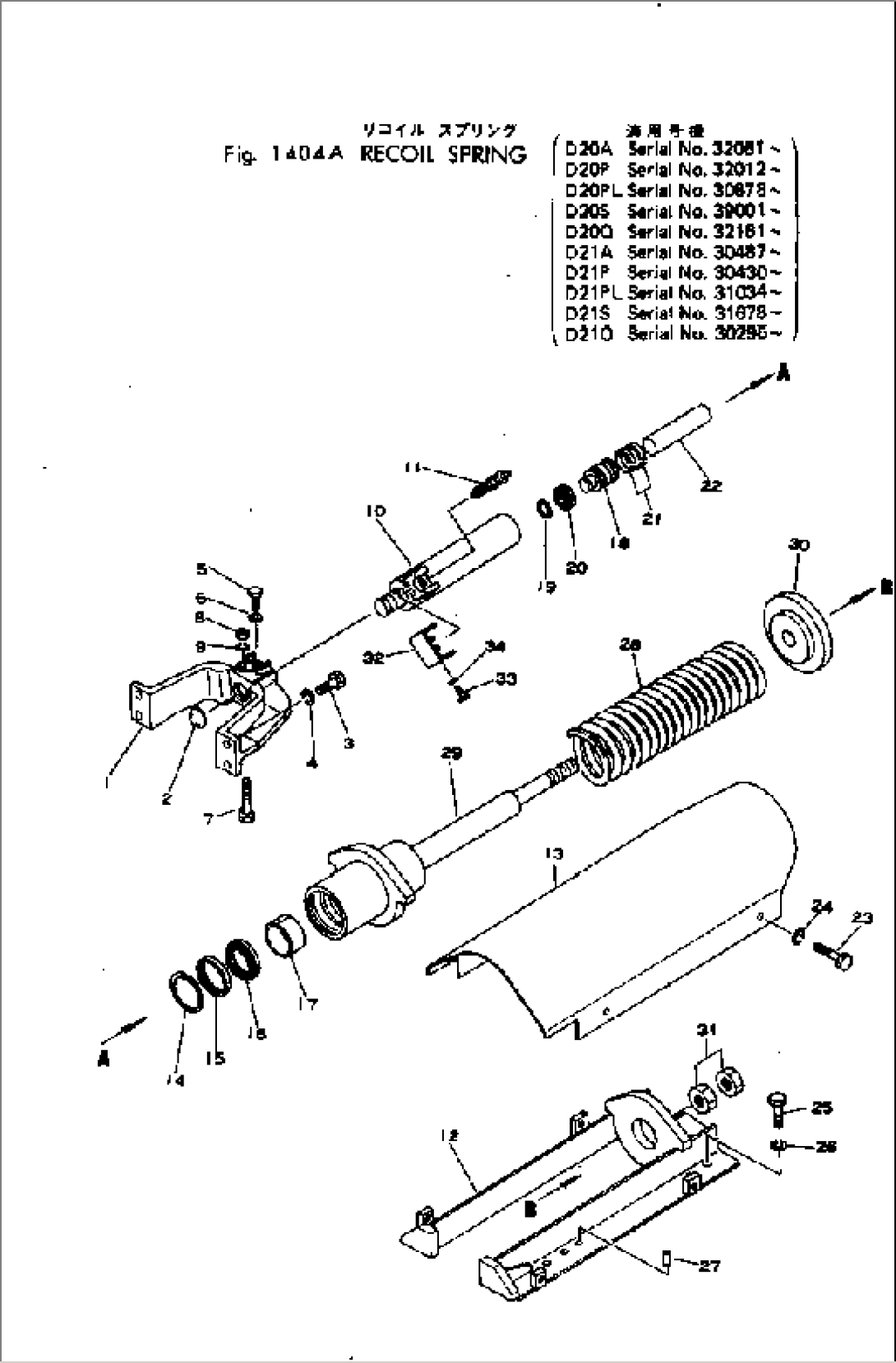

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 101-30-21132 | ARM | 20007- | |
| 2 | 07046-03520 | PLUG | 20007- | |
| 3 | 01010-31230 | BOLT | 20007- | |
| 4 | 01602-01236 | WASHER,SPRING | 20007- | |
| 5 | 101-30-21351 | BOLT | 20007- | |
| 6 | 01602-01236 | WASHER,SPRING | 20007- | |
| 7 | 101-30-34380 | BOLT | 32012- | |
| 8 | 01582-01210 | NUT | 20007- | |
| 9 | 01602-01236 | WASHER,SPRING | 20007- | |
| 10 | 101-30-34331 | CYLINDER | 31197- | |
| 11 | 101-30-34360 | LUBRICATOR | 31197- | |
| 12 | 101-30-21232 | BRACKET | 32012- | |
| 13 | 101-30-34390 | COVER | 32012- | |
| 14 | 04065-07025 | RING,SNAP | 20007- | |
| 15 | 101-30-34140 | SPACER | 20007- | |
| 16 | 07016-00558 | SEAL,DUST | 20007- | |
| 17 | 07177-05530 | BUSHING | 32012- | |
| 18 | 101-30-34160 | PISTON | 20007- | |
| 19 | 04064-02512 | RING,SNAP | 20007- | |
| 20 | 101-30-34210 | PACKING | 20007- | |
| 21 | 101-30-34220 | RING,PISTON | 20007- | |
| 22 | 101-30-34131 | SHAFT | 32012- | |
| 23 | 01010-31020 | BOLT | 32012- | |
| 24 | 01602-01030 | WASHER,SPRING | 32012- | |
| 25 | 01010-31430 | BOLT | 20007- | |
| 26 | 01602-01442 | WASHER,SPRING | 20007- | |
| 27 | 04020-01228 | PIN,DOWEL | 20007- | |
| 28 | 101-30-21192 | SPRING | 32012- | |
| 29 | 101-30-34351 | SHAFT | 32012- | |
| 30 | 101-30-11223 | SEAT,SPRING | 32012- | |
| 31 | 01580-02218 | NUT | 32012- | |
| 32 | 101-30-34371 | COVER | 32569- | |
| 32 | 101-30-34370 | COVER | 31197-32568 | |
| 33 | 01010-30816 | BOLT | 31197- | |
| 34 | 01602-00825 | WASHER,SPRING | 31197- |
