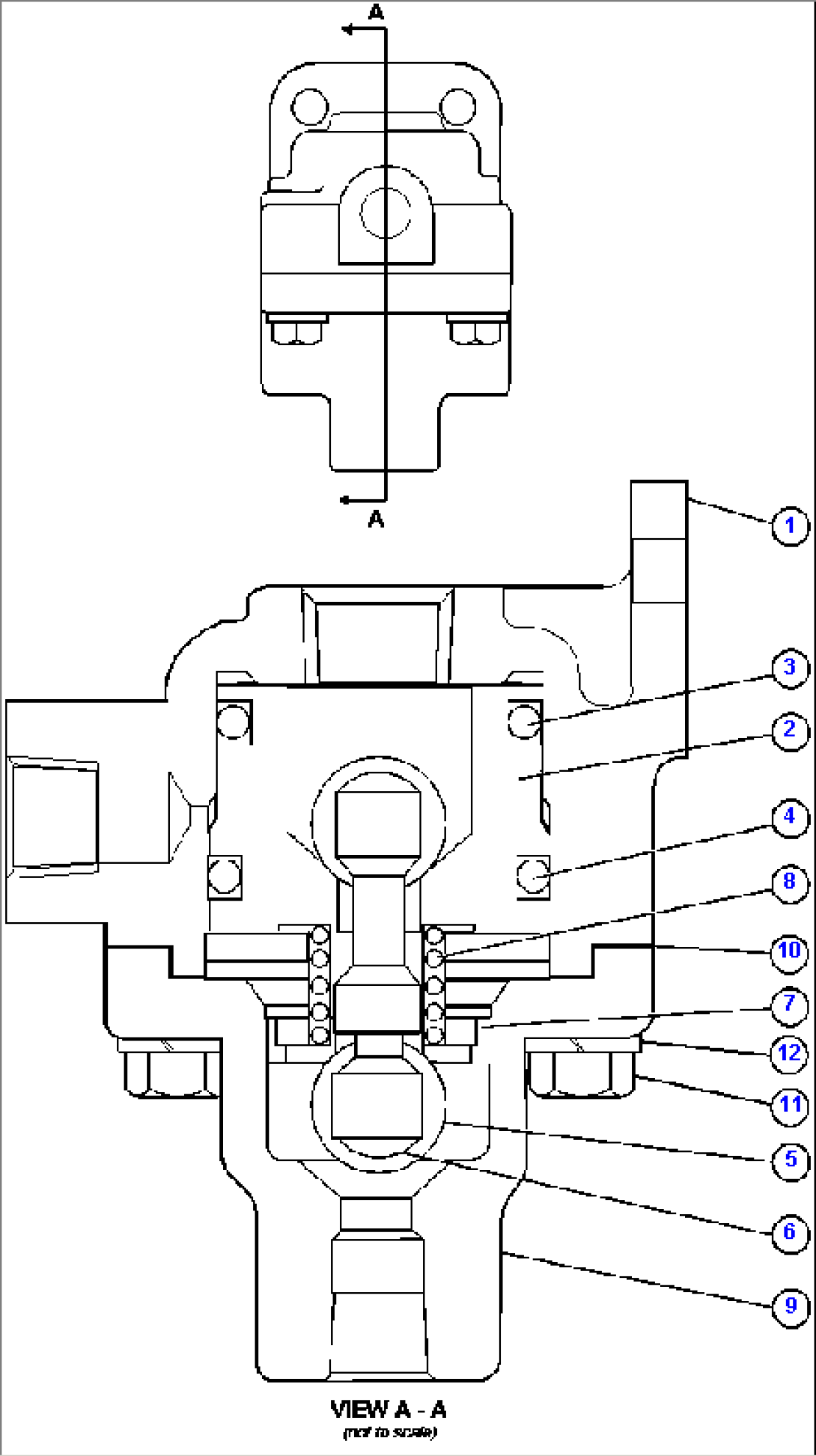

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BODY (1) | |||
| 2 | PISTON (1) | |||
| 3 | O-RING (1) | |||
| 4 | O-RING (1) | |||
| 5 | VALVE (1) | |||
| 6 | STEM, VALVE (1) | |||
| 7 | GUIDE, VALVE (1) | |||
| 8 | SPRING (1) | |||
| 9 | COVER (1) | |||
| 10 | 515-35-19110 | GASKET (2) | ||
| 11 | 01010-80825 | CAPSCREW | ||
| 12 | 01602-20825 | WASHER (2) | ||
| NS|13 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|14 | 515-35-05010 | (2) INCLUDED IN 515-35-05010 VALVE KIT. |
