| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 196-15-00012 | TRANSMISSION ASS'Y | (5215)-@ | ||
| (\0\196-15-00011) | TRANSMISSION ASS'Y | (2184)-(5214) | ||
| (\0\196-15-00010) | TRANSMISSION ASS'Y | 3259-(2183) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.1251 TO 1262. | ||||

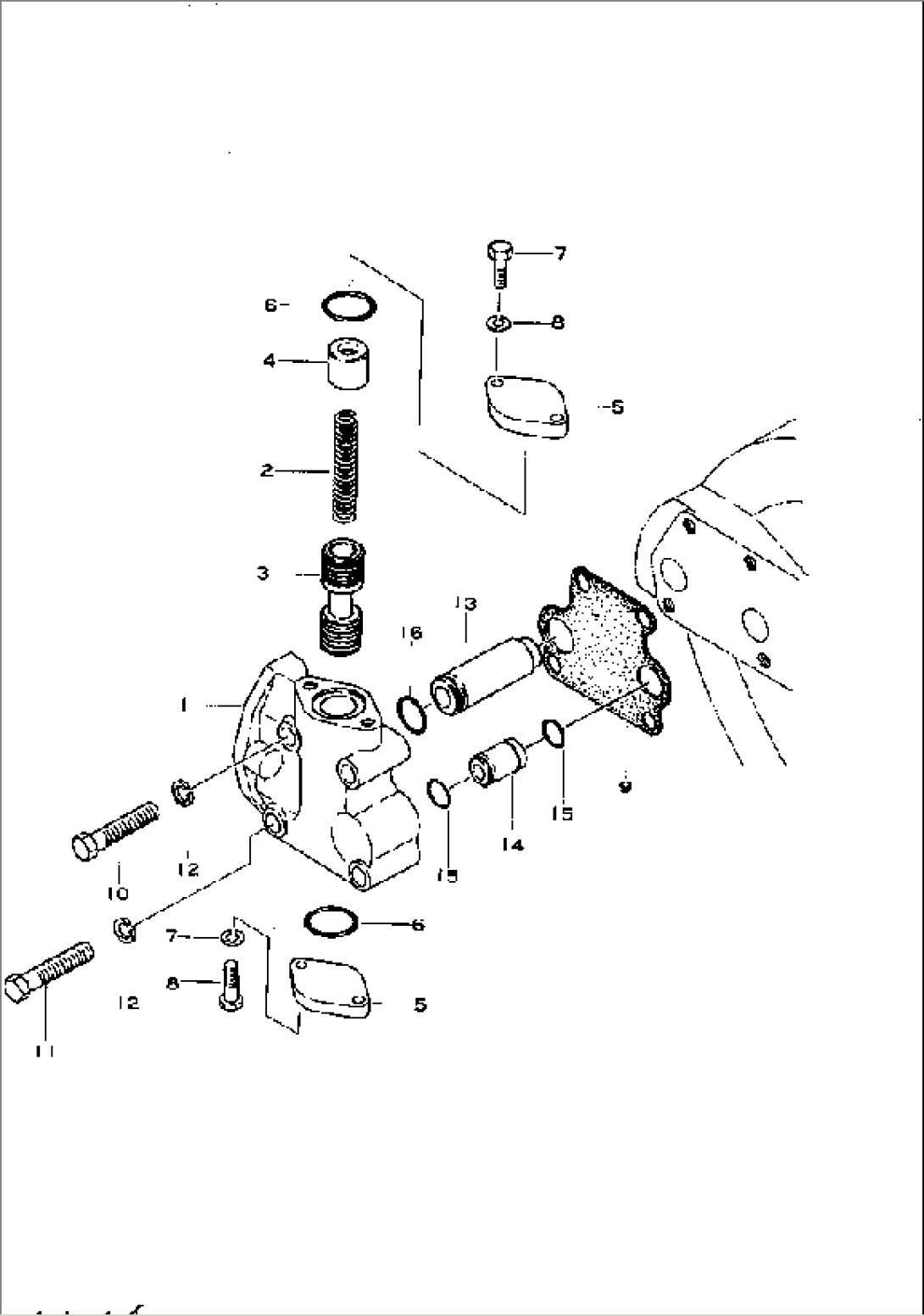

| 175-15-00352 | VALVE ASS'Y | 3259-(5214) | ||
| 1 | 175-15-14111 | BODY | 3259-(5214) | |
| 2 | 175-15-14120 | SPRING | 3259-(5214) | |
| 3 | 175-15-14130 | SPOOL | 3259-(5214) | |
| 4 | 175-15-14141 | GUIDE | 3259-(5214) | |
| 5 | 175-15-14150 | COVER | 3259-(5214) | |
| 6 | 07000-63032 | O-RING | 3259-(5214) | |
| 7 | 01010-30825 | BOLT | 3259-(5214) | |
| 8 | 01602-00825 | WASHER | 3259-(5214) | |
| 9 | 175-15-14161 | GASKET | 3259-(5214) | |
| 10 | 01010-31055 | BOLT | 3259-(5214) | |
| 11 | 01010-31065 | BOLT | 3259-(5214) | |
| 12 | 01602-01030 | WASHER | 3259-(5214) | |
| 13 | 175-15-44190 | SLEEVE | 3259-(5214) | |
| 14 | 175-15-44180 | SLEEVE | 3259-(5214) | |
| 15 | 07000-62018 | O-RING | 3259-(5214) | |
| 16 | 07000-63022 | O-RING | 3259-(5214) |
