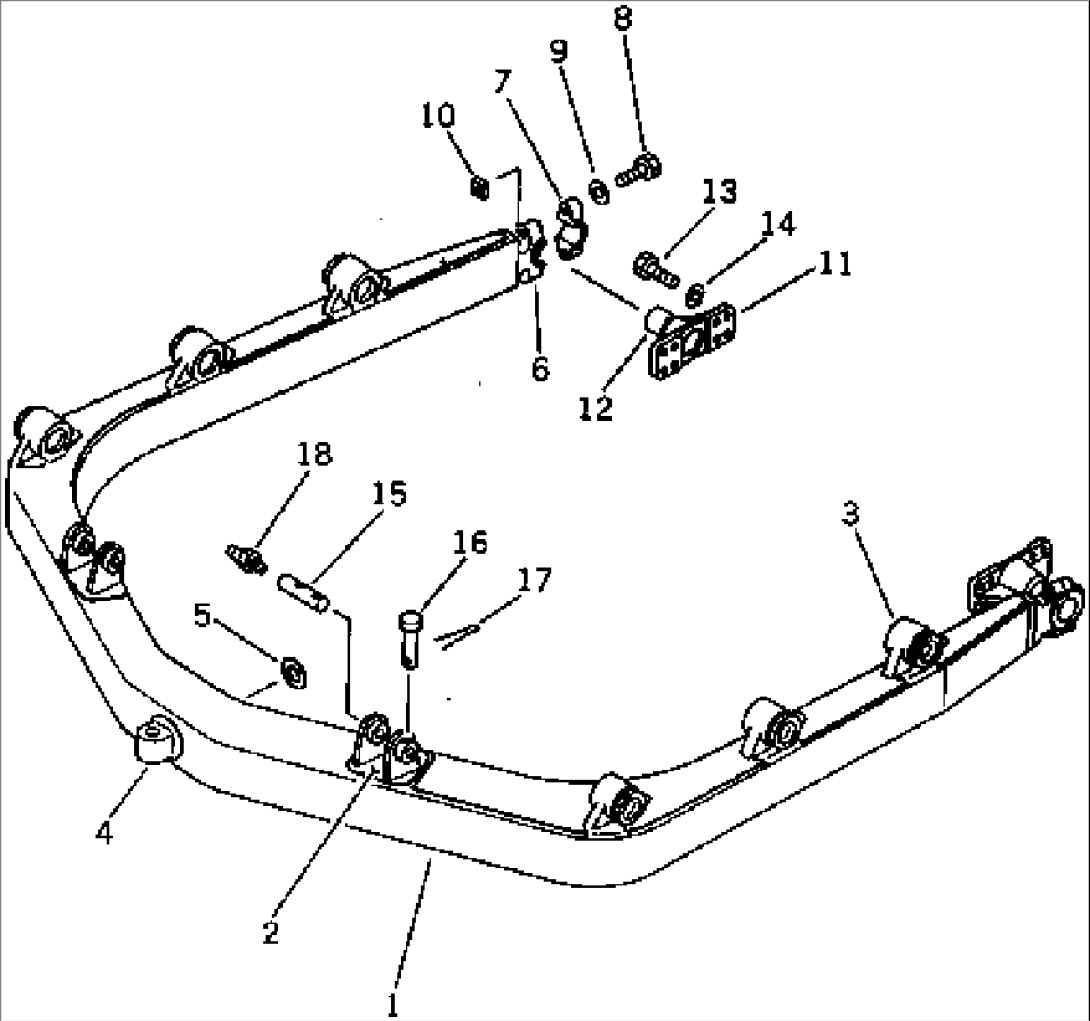

| Item | Part No. | Part Name | Qty | Serial No. |
| 144-854-0052 | C-FRAME ASS'Y | 45001- | ||
| 1 | \6\ | FRAME | 45001- | |
| 2 | 144-854-2812 | BRACKET,L.H. (WELDED) | 45001- | |
| 144-854-2822 | BRACKET,R.H. (WELDED) | 45001- | ||
| 3 | 144-70-13210 | BRACKET,L.H. (WELDED) | 45001- | |
| 144-70-13220 | BRACKET,R.H. (WELDED) | 45001- | ||
| 4 | 144-854-2870 | SHAFT (WELDED) | 45001- | |
| 5 | 140-70-13130 | COLLAR (WELDED) | 45001- | |
| 6 | \6\ | PIVOT,(WELDED) (KIT) | 45001- | |
| 7 | 140-70-13151 | CAP (KIT) | 45001- | |
| 8 | 01011-82430 | BOLT (KIT) | 45001- | |
| 9 | 01643-32460 | WASHER (KIT) | 45001- | |
| 10 | 130-70-13241 | NUT (KIT) | 45001- | |
| 11 | 144-70-13180 | TRUNNION | 45001- | |
| 12 | 144-70-13190 | SHAFT | 45001- | |
| 13 | 01010-52045 | BOLT | 45001- | |
| 14 | 01643-32060 | WASHER | 45001- | |
| 15 | 144-817-4110 | SHAFT | 45001- | |
| 16 | 140-70-14230 | PIN | 45001- | |
| 17 | 04050-13015 | PIN | 45001- | |
| 18 | 07020-00000 | FITTING,GREASE | 45001- | |
| SERVICE KIT | ||||
| 140-70-00032 | PIVOT ASS'Y | 45001- | ||
| 6 | \6\ | PIVOT | 45001- | |
| 7 | 140-70-13151 | CAP | 45001- | |
| 8 | 01011-82430 | BOLT | 45001- | |
| 9 | 01643-32460 | WASHER | 45001- | |
| 10 | 130-70-13241 | NUT | 45001- |
