| Item | Part No. | Part Name | Qty | Serial No. |

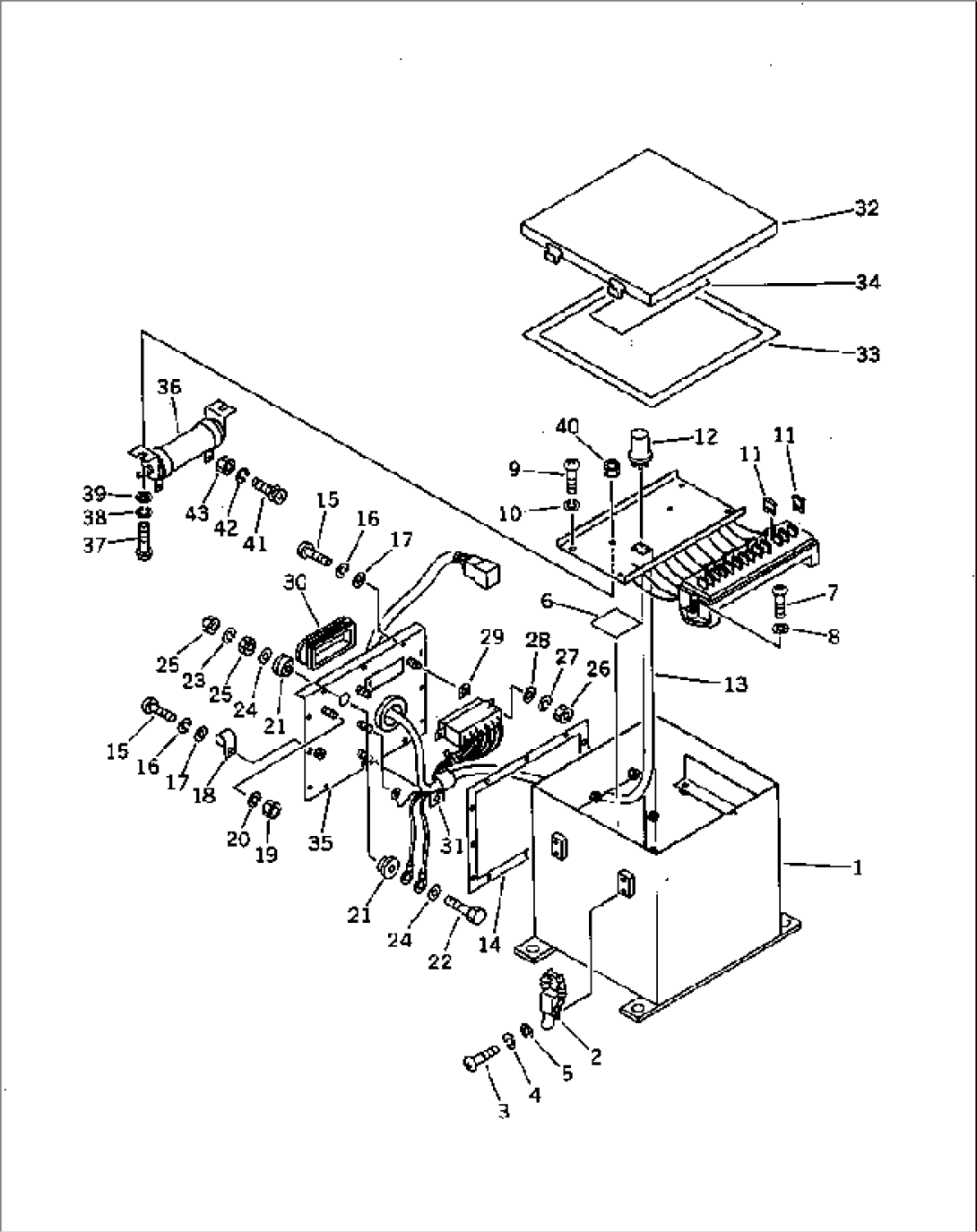

| 19M-06-17801 | RELAY BOX ASS'Y | 10001- | ||
| 1 | 7830-32-1420 | BOX | 10001- | |
| 2 | 7816-21-3460 | LOCK | 10001- | |
| 3 | 01220-40308 | SCREW | 10001- | |
| 4 | 01602-20307 | WASHER,SPRING | 10001- | |
| 5 | 01641-20305 | WASHER | 10001- | |
| 6 | 7830-11-5550 | FILTER | 10001- | |
| 7 | 01220-40616 | SCREW | 10001- | |
| 8 | 01641-20608 | WASHER | 10001- | |
| 9 | 01220-40616 | SCREW | 10001- | |
| 10 | 01602-20619 | WASHER,SPRING | 10001- | |
| 11 | 22W-06-13160 | FUSE, 20A | 10001- | |
| 12 | 7830-11-8180 | RELAY | 10001- | |
| 13 | 19M-06-17861 | WIRING HARNESS | 10001- | |
| 14 | 7830-32-1470 | GASKET | 10001- | |
| 15 | 01220-40410 | SCREW | 10001- | |
| 16 | 01602-20410 | WASHER,SPRING | 10001- | |
| 17 | 01642-20405 | WASHER | 10001- | |
| 18 | 7816-11-4260 | CLIP | 10001- | |
| 19 | 01580-10605 | NUT | 10001- | |
| 20 | 01602-20619 | WASHER,SPRING | 10001- | |
| 21 | 7830-11-8160 | BUSHING | 10001- | |
| 22 | 01010-80830 | BOLT | 10001- | |
| 23 | 01602-20825 | WASHER,SPRING | 10001- | |
| 24 | 01643-30823 | WASHER | 10001- | |
| 25 | 01580-10806 | NUT | 10001- | |
| 26 | 01580-10403 | NUT | 10001- | |
| 27 | 01602-20410 | WASHER,SPRING | 10001- | |
| 28 | 01642-20405 | WASHER | 10001- | |
| 29 | 7830-11-8170 | SPACER | 10001- | |
| 30 | 7830-11-6950 | BOOT | 10001- | |
| 31 | 7862-91-3720 | CLAMP | 10001- | |
| 32 | 7830-11-8120 | COVER | 10001- | |
| 33 | 7830-11-8140 | GASKET | 10001- | |
| 34 | 19M-98-11640 | PLATE | 10001- | |
| 35 | 7830-32-1430 | PLATE | 10001- | |
| 36 | 600-815-3480 | RESISTOR | 10001- | |
| 37 | 01220-40612 | SCREW | 10001- | |
| 38 | 01602-20619 | WASHER,SPRING | 10001- | |
| 39 | 01642-20608 | WASHER | 10001- | |
| 40 | 01580-10605 | NUT | 10001- | |
| 41 | 01023-30308 | SCREW | 10001- | |
| 42 | 01602-20307 | WASHER,SPRING | 10001- | |
| 43 | 01580-10302 | NUT | 10001- |
