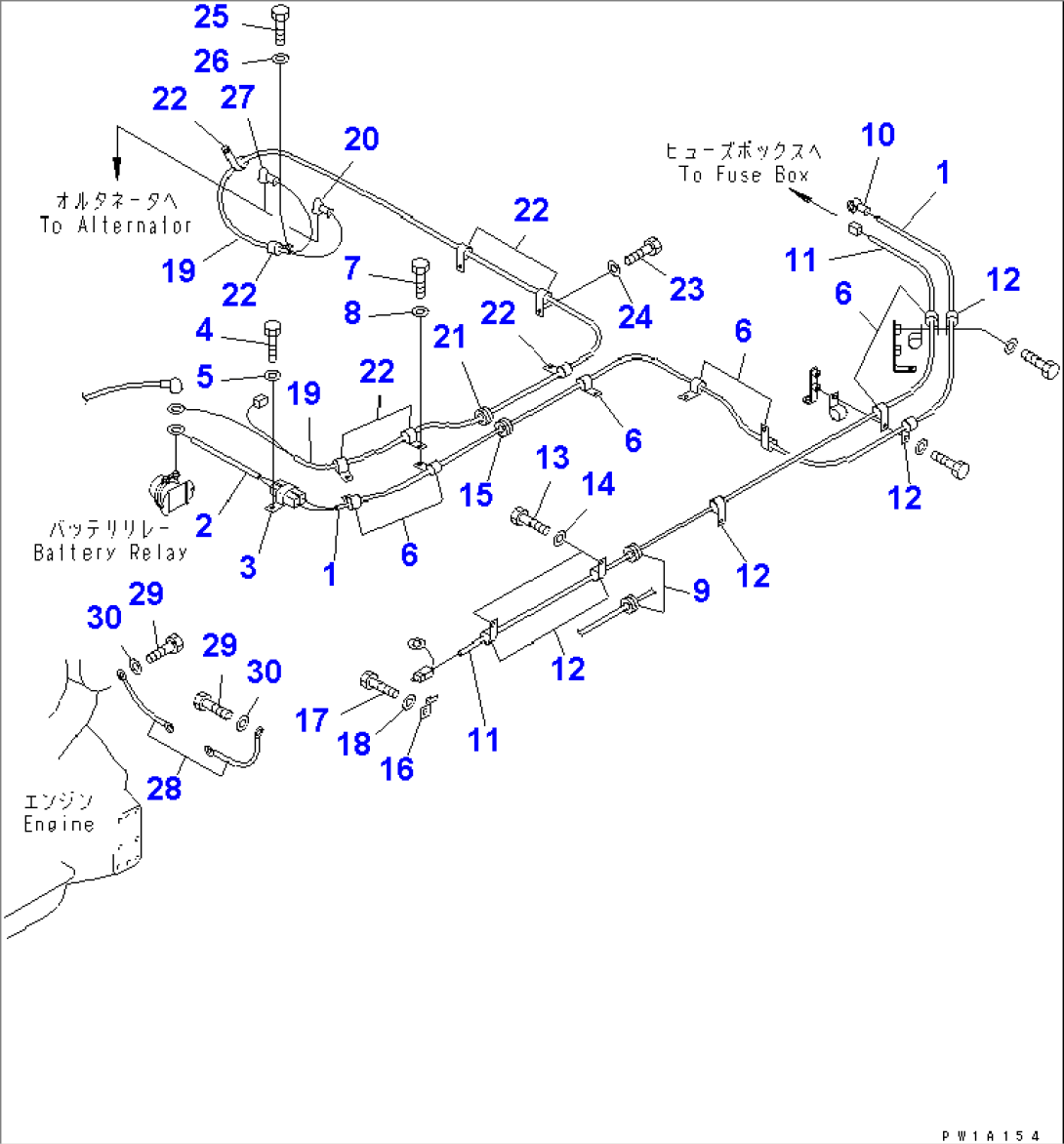

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-06-31480 | WIRING HARNESS | 10101- | |
| 2 | 19M-06-21210 | FUSE | 10101- | |
| 3 | 04435-51812 | CLIP | 10101- | |
| 4 | 01010-81220 | BOLT | 10101- | |
| 5 | 01643-31232 | WASHER | 10101- | |
| 6 | 04434-52312 | CLIP | 10101- | |
| 7 | 01010-81220 | BOLT | 10101- | |
| 8 | 01643-31232 | WASHER | 10101- | |
| 9 | 08037-02512 | GROMMET | 10101- | |
| 10 | 08038-06031 | CAP | 10101- | |
| 11 | 19M-06-31520 | CABLE | 10101- | |
| 12 | 04434-51512 | CLIP | 10101- | |
| 13 | 01010-81220 | BOLT | 10101- | |
| 14 | 01643-31232 | WASHER | 10101- | |
| 15 | 08037-02512 | GROMMET | 10101- | |
| 16 | 08053-01512 | CLIP | 10101- | |
| 17 | 01010-81220 | BOLT | 10101- | |
| 18 | 01643-31232 | WASHER | 10101- | |
| 19 | 19M-06-31950 | WIRING HARNESS,(100A) | 10101- | |
| 20 | 08038-02027 | CAP | 10101- | |
| 21 | 08037-03614 | GROMMET | 10101- | |
| 22 | 04434-52712 | CLIP,(100A) | 10101- | |
| 23 | 01010-81220 | BOLT | 10101- | |
| 24 | 01643-31232 | WASHER | 10101- | |
| 25 | 01010-81225 | BOLT | 10101- | |
| 26 | 01643-31232 | WASHER | 10101- | |
| 27 | 08038-00518 | CAP | 10101- | |
| 28 | 08028-56055 | CABLE | 10101- | |
| 29 | 01010-81220 | BOLT | 10101- | |
| 30 | 01643-31232 | WASHER | 10101- |
