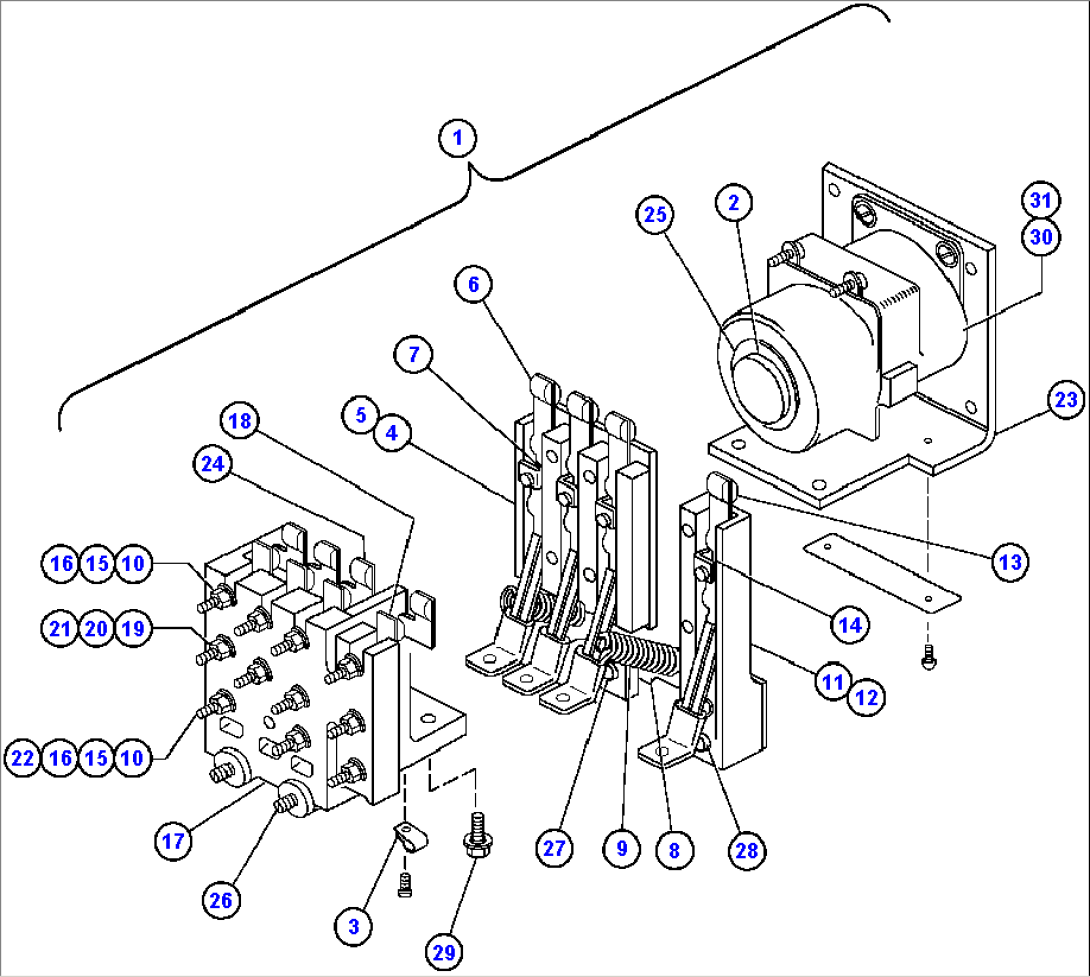

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VG7043 | RELAY ASSEMBLY | ||
| 2 | VS8980 | CORE | ||
| 3 | VS9161 | CLAMP | ||
| 4 | VP9576 | ASSM, ARMATURE | ||
| 5 | VS9254 | ARMATURE | ||
| 6 | VM0251 | CONTACT, FINGER | ||
| 7 | VM0240 | SPRING | ||
| 8 | VS9224 | BRACKET | ||
| 9 | VM0241 | SPRING | ||
| 10 | VE4660 | LOCKWASHER - #10 | ||
| 11 | VP9587 | FINGER | ||
| 12 | VS9255 | BASE | ||
| 13 | VM0251 | CONTACT, FINGER | ||
| 14 | VM0240 | SPRING | ||
| 15 | VZ2158 | FLATWASHER - #10 (ZINC PLATED) | ||
| 16 | SF2755 | NUT - #10 (ZINC PLATED) | ||
| 17 | VS9223 | SUPPORT | ||
| 18 | VM0226 | CONTACT | ||
| 19 | VZ2158 | FLATWASHER - #10 (ZINC PLATED) | ||
| 20 | VE4660 | LOCKWASHER - #10 | ||
| 21 | SF2755 | NUT - #10 (ZINC PLATED) | ||
| 22 | VJ9235 | MACHINE SCREW - #10 - 32NC X 7/8" | ||
| 23 | VS9284 | FRAME | ||
| 24 | VM0227 | CONTACT | ||
| 25 | VJ9163 | WASHER, SPRING | ||
| 26 | VJ9159 | MACHINE SCREW - #10 - 32NC X 3/8" (WITH WASHER) | ||
| 27 | VS9208 | MACHINE SCREW - #10 - 32NC X 3/8" (WITH LOCKWASHER) | ||
| 28 | VP9593 | MACHINE SCREW WITH WASHER | ||
| 29 | VJ9162 | MACHINE SCREW - 1/4" - 20NC X 3/4" (WITH WASHER) | ||
| 30 | VE4816 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 31 | VM0278 | COIL |
