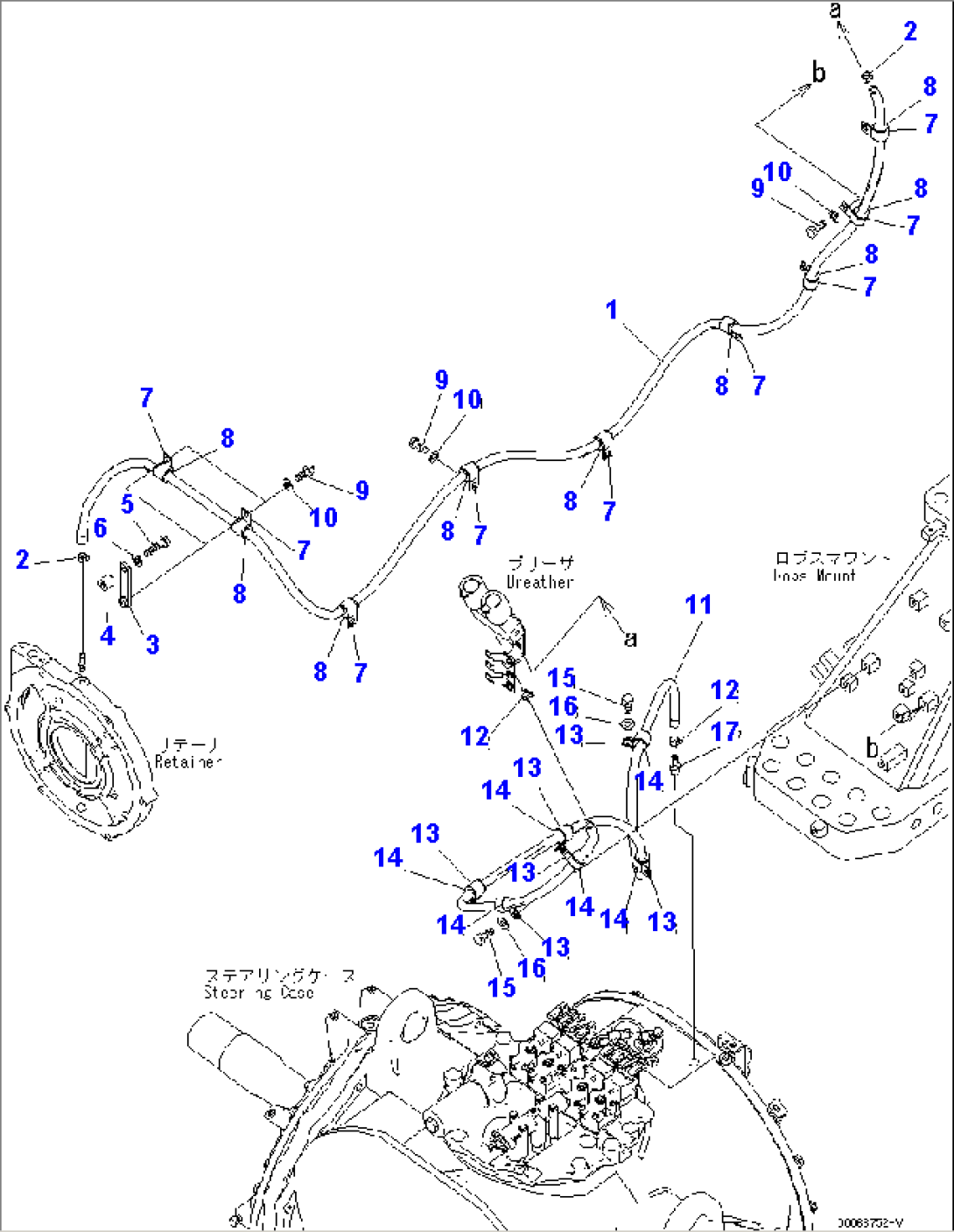

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-49-63411 | HOSE ASS'Y | 30001-@ | |
| 2 | 11Y-09-11140 | CLIP | 30001-@ | |
| 3 | 198-911-6170 | BRACKET | 30001-@ | |
| 4 | 195-33-11220 | SPACER | 30001-@ | |
| 5 | 01010-81255 | BOLT | 30001-@ | |
| 6 | 01643-31232 | WASHER | 30001-@ | |
| 7 | 04434-52512 | CLIP | 30001-@ | |
| 8 | 07095-20318 | CUSHION | 30001-@ | |
| 9 | 01010-81225 | BOLT | 30001-30125 | |
| 10 | 01643-31232 | WASHER | 30001-30125 | |
| 11 | 198-49-63421 | HOSE ASS'Y | 30001-@ | |
| 12 | 11Y-09-11140 | CLIP | 30001-@ | |
| 13 | 04434-52512 | CLIP | 30001-@ | |
| 14 | 07095-20318 | CUSHION | 30001-@ | |
| 15 | 01010-81225 | BOLT | 30001-@ | |
| 16 | 01643-31232 | WASHER | 30001-@ | |
| 17 | 6138-55-7610 | NIPPLE | 30001-@ |
