| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | CONNECTOR | 85001- | |
| 2 | 421-46-46240 | TUBE | 85001- | |
| 3 | 04434-50610 | CLIP | 85001- | |
| 4 | 01010-81020 | BOLT | 85001- | |
| 5 | 01643-31032 | WASHER | 85001- | |
| 6 | 421-09-12540 | ELBOW | 85001- | |
| 7 | 423-70-11160 | NIPPLE | 85001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 85001 90215 (ecot3) (for eu)
- Main/revolving frame and related parts
- Remote grease (work equipment)(#85001 )
Поиск по каталогу

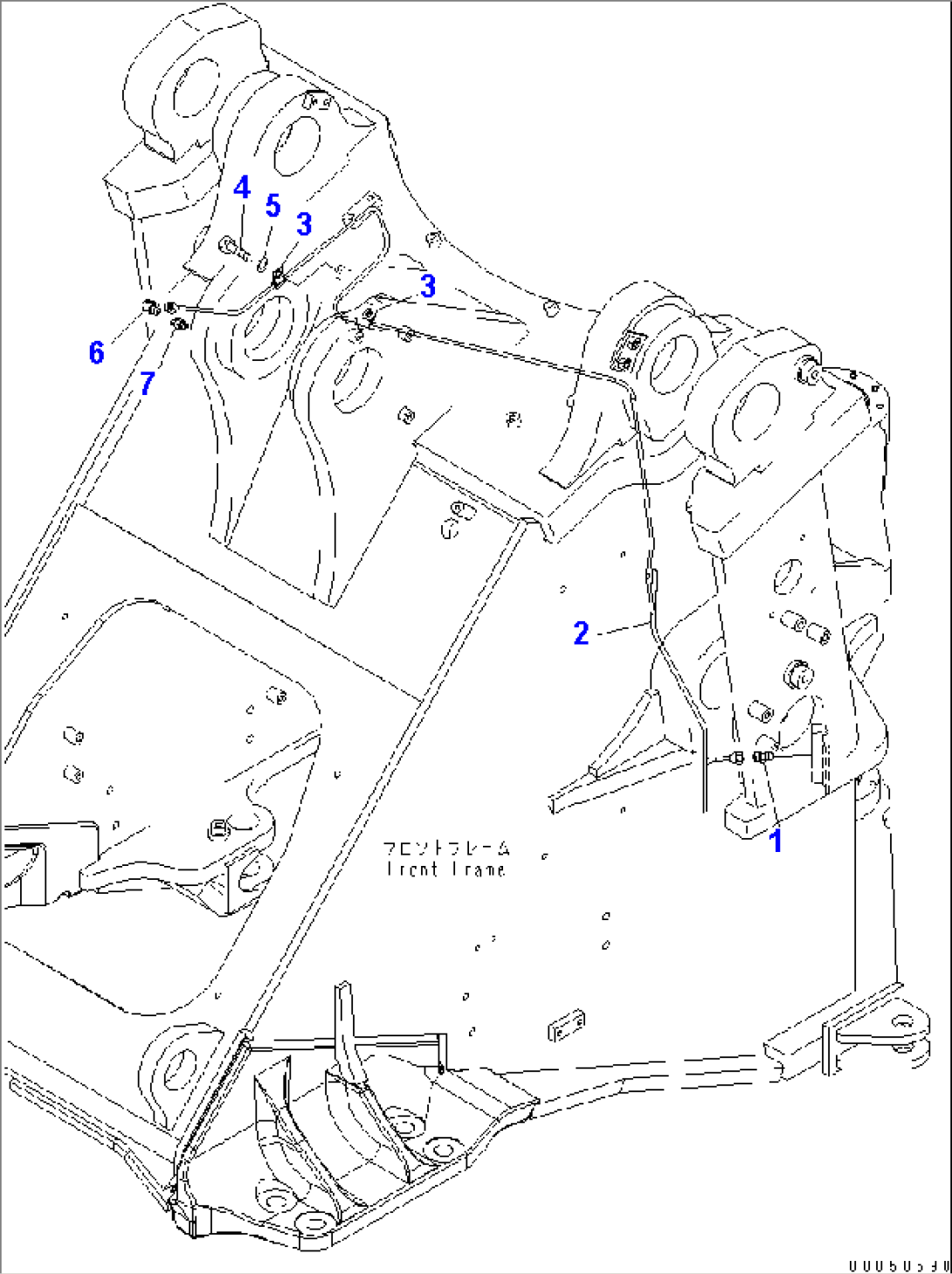

REMOTE GREASE (WORK EQUIPMENT)(#85001-)
