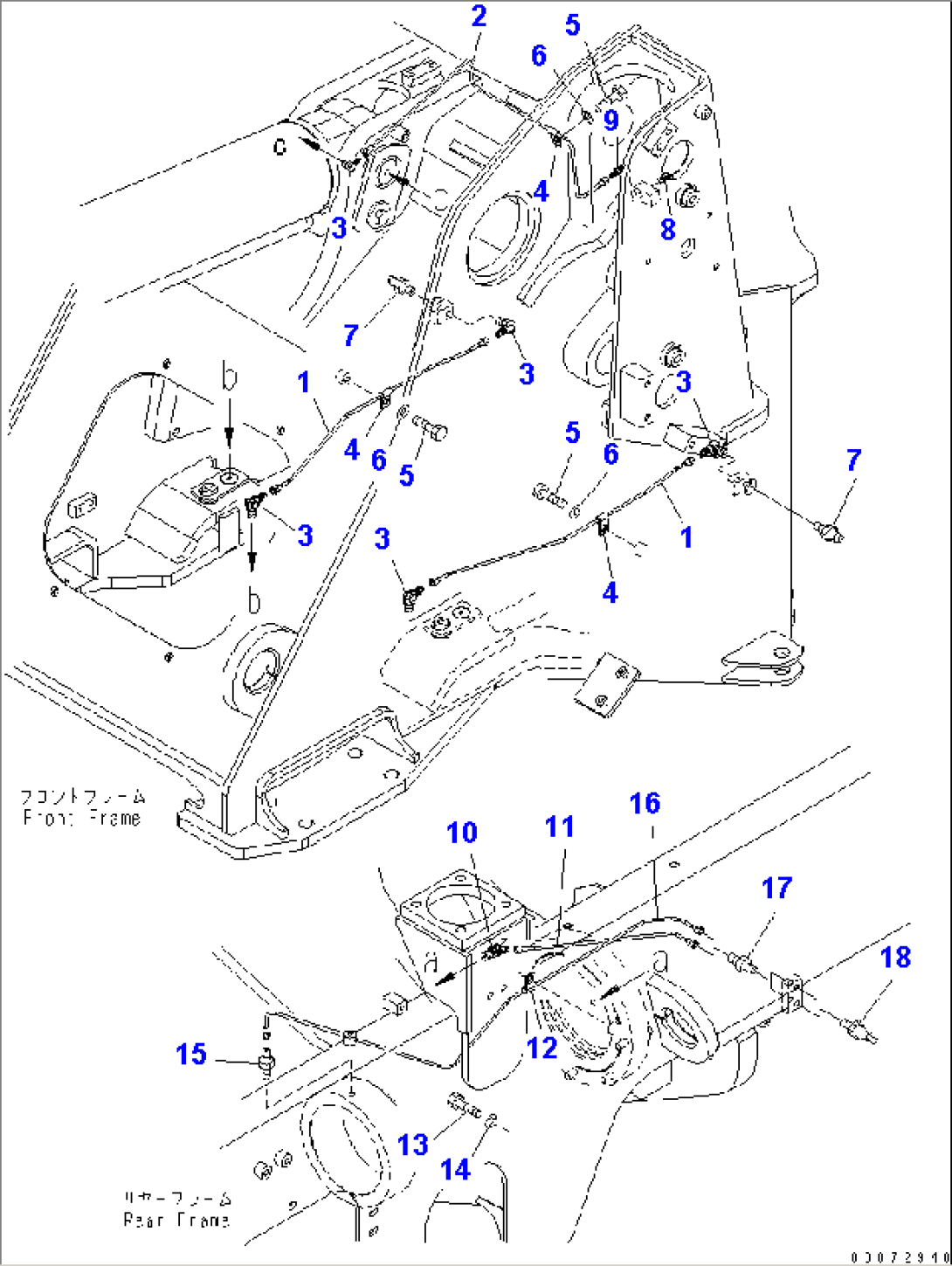

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-36250 | TUBE | 70001- | |
| 2 | 417-T90-4521 | TUBE | 70001- | |
| 3 | 07217-70510 | ELBOW | 70001- | |
| 4 | 04434-50510 | CLIP | 70001- | |
| 5 | 01010-81016 | BOLT | 70001- | |
| 6 | 01643-31032 | WASHER | 70001- | |
| 7 | 07020-00000 | FITTING,GREASE | 70001- | |
| 8 | 07020-00675 | FITTING,GREASE | 70001- | |
| 9 | 07214-70510 | CONNECTOR | 70001- | |
| 10 | 07217-70510 | ELBOW | 70001- | |
| 11 | 418-46-18114 | TUBE | 70001- | |
| 12 | 04434-50510 | CLIP | 70001- | |
| 13 | 01010-81016 | BOLT | 70001- | |
| 14 | 01643-31032 | WASHER | 70001- | |
| 15 | 07214-70510 | CONNECTOR | 70001- | |
| 16 | 417-46-36113 | TUBE | 70001- | |
| 17 | 07214-70510 | CONNECTOR | 70001- | |
| 18 | 07020-00675 | FITTING,GREASE | 70001- |
