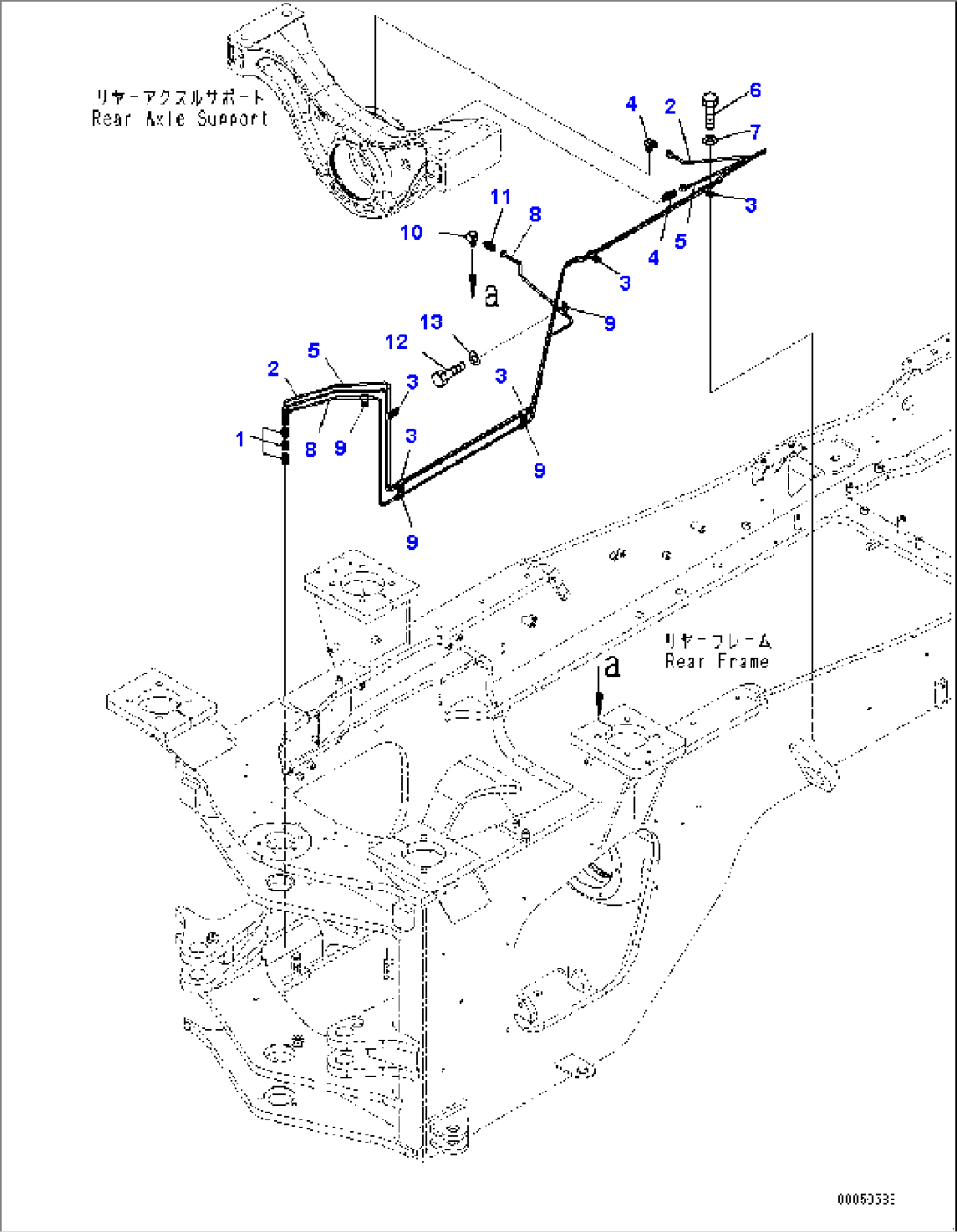

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | Connector | 90216- | |
| 2 | 421-46-46140 | Tube | 90216- | |
| 3 | 04435-50610 | Clip | 90216- | |
| 4 | 421-09-12540 | Elbow | 90216- | |
| 5 | 421-46-46150 | Tube | 90216- | |
| 6 | 01010-81020 | Bolt | 90216- | |
| 7 | 01643-31032 | Washer | 90216- | |
| 8 | 421-U45-4160 | Tube | 90216- | |
| 9 | 04434-50610 | Clip | 90216- | |
| 10 | 205-62-53391 | Elbow | 90216- | |
| 11 | 423-09-12110 | Connector | 90216- | |
| 12 | 01010-81020 | Bolt | 90216- | |
| 13 | 01643-31032 | Washer | 90216- |
