| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | Connector | 90216- | |
| 2 | 421-46-46240 | Tube | 90216- | |
| 3 | 04434-50610 | Clip | 90216- | |
| 4 | 01010-81020 | Bolt | 90216- | |
| 5 | 01643-31032 | Washer | 90216- | |
| 6 | 421-09-12540 | Elbow | 90216- | |
| 7 | 423-70-11160 | Nipple | 90216- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 90216 up (for eu)
- Frame and its related parts
- Remote greasing system, bucket cylinder (#90216 )
Поиск по каталогу

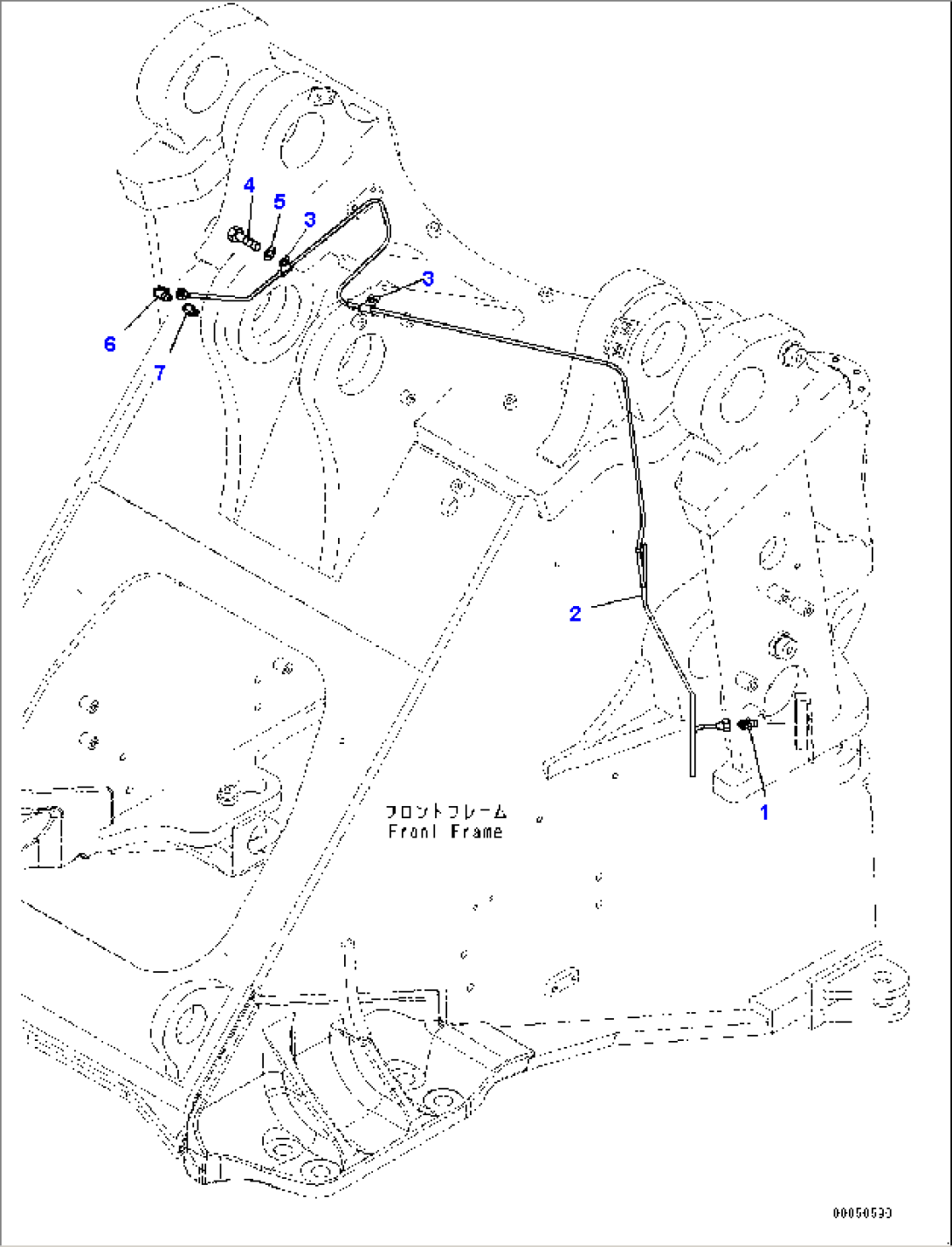

Remote Greasing System, Bucket Cylinder (#90216-)
