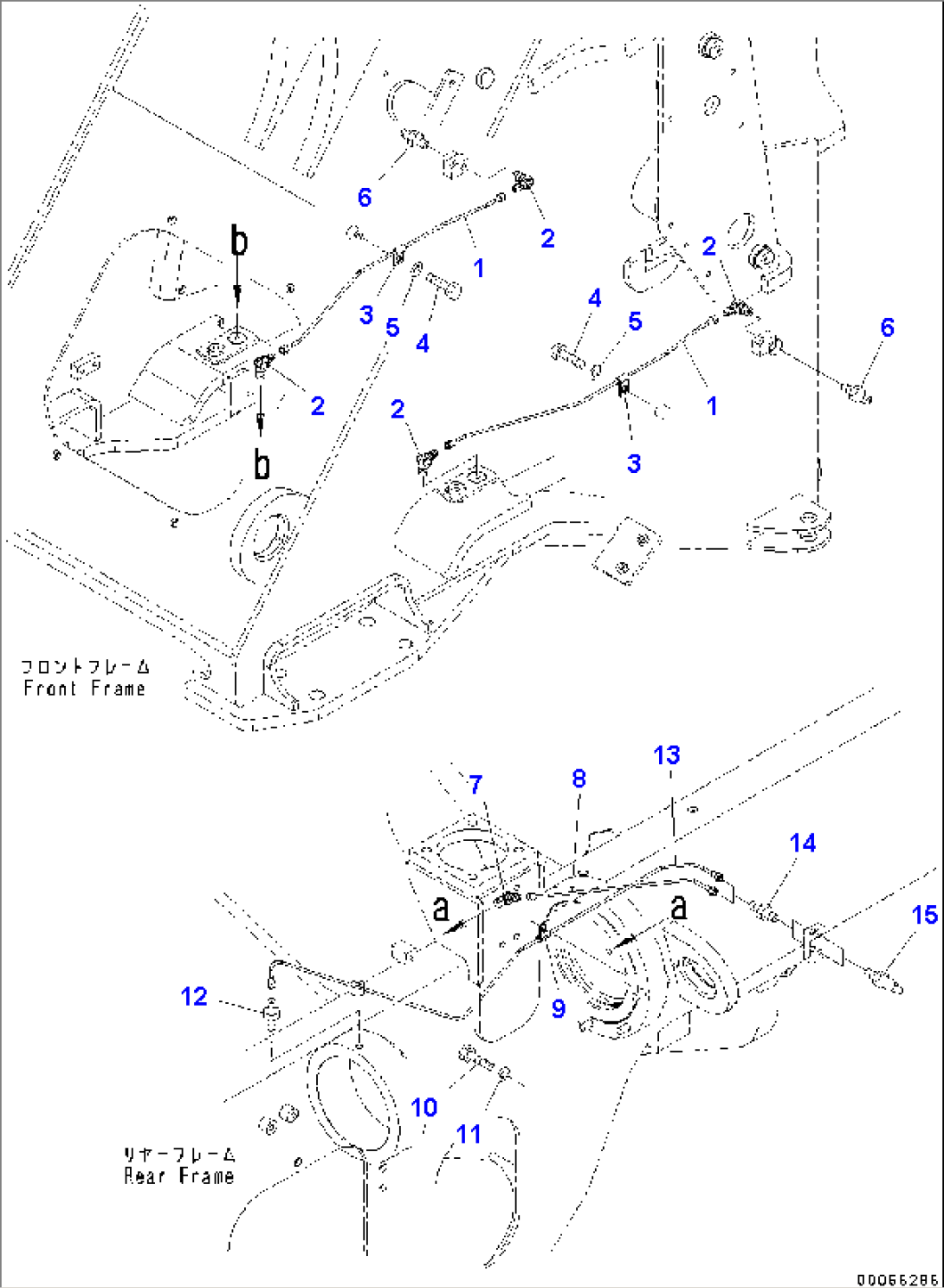

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-46-36250 | Tube | C10001- | |
| 2 | 07217-70510 | Elbow | C10001- | |
| 3 | 04434-50510 | Clip | C10001- | |
| 4 | 01010-81016 | Bolt | C10001- | |
| 5 | 01643-31032 | Washer | C10001- | |
| 6 | 07020-00000 | Fitting, Grease | C10001- | |
| 7 | 07217-70510 | Elbow | C10001- | |
| 8 | 418-46-18114 | Tube | C10001- | |
| 9 | 04434-50510 | Clip | C10001- | |
| 10 | 01010-81016 | Bolt | C10001- | |
| 11 | 01643-31032 | Washer | C10001- | |
| 12 | 07214-70510 | Connector | C10001- | |
| 13 | 417-46-36113 | Tube | C10001- | |
| 14 | 07214-70510 | Connector | C10001- | |
| 15 | 07020-00675 | Fitting, Grease, Grease | C10001- |
