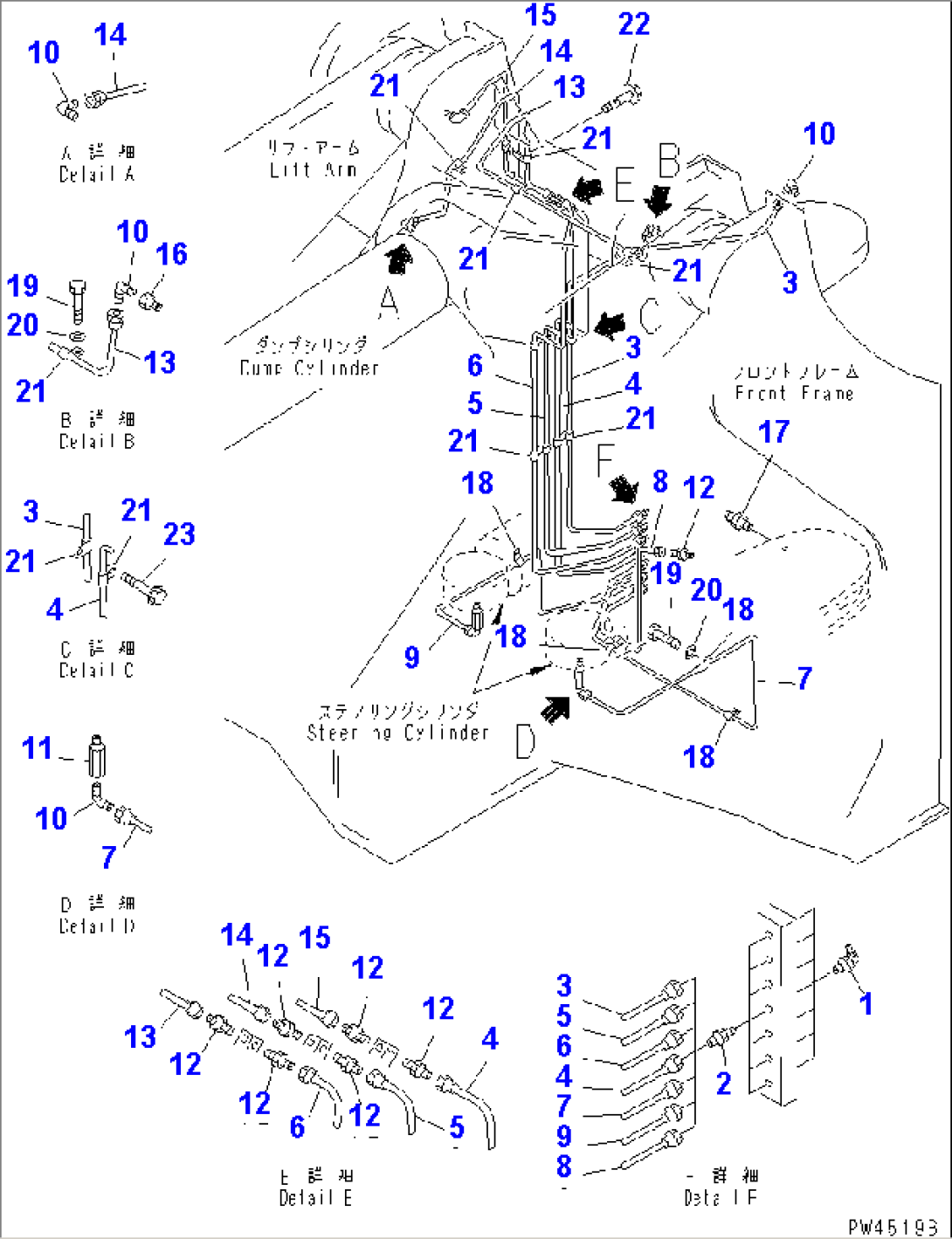

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00675 | FITTING,GREASE | 10001- | |
| 2 | 423-09-12110 | CONNECTOR | 10001- | |
| 3 | 428-46-16181 | TUBE | 10001- | |
| 4 | 428-70-14151 | TUBE | 10001- | |
| 5 | 428-70-14111 | TUBE | 10001- | |
| 6 | 428-70-14131 | TUBE | 10001- | |
| 7 | 428-63-14111 | TUBE | 10001- | |
| 8 | 428-46-16191 | TUBE | 10001- | |
| 9 | 428-63-14120 | TUBE | 10001- | |
| 10 | 421-09-12540 | ELBOW | 10001- | |
| 11 | 6141-55-5630 | NIPPLE | 10001- | |
| 12 | 423-09-12110 | CONNECTOR | 10001- | |
| 13 | 428-70-14141 | TUBE | 10001- | |
| 14 | 428-70-14121 | TUBE | 10001- | |
| 15 | 428-70-14161 | TUBE | 10001- | |
| 16 | 423-70-11160 | NIPPLE | 10001- | |
| 17 | 07020-00000 | FITTING,GREASE | 10001- | |
| 18 | 425-70-13120 | CLIP | 10001- | |
| 19 | 01010-81016 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 425-70-13120 | CLIP | 10001- | |
| 22 | 01435-01016 | BOLT | 10001- | |
| 23 | 01435-01025 | BOLT | 10001- |
