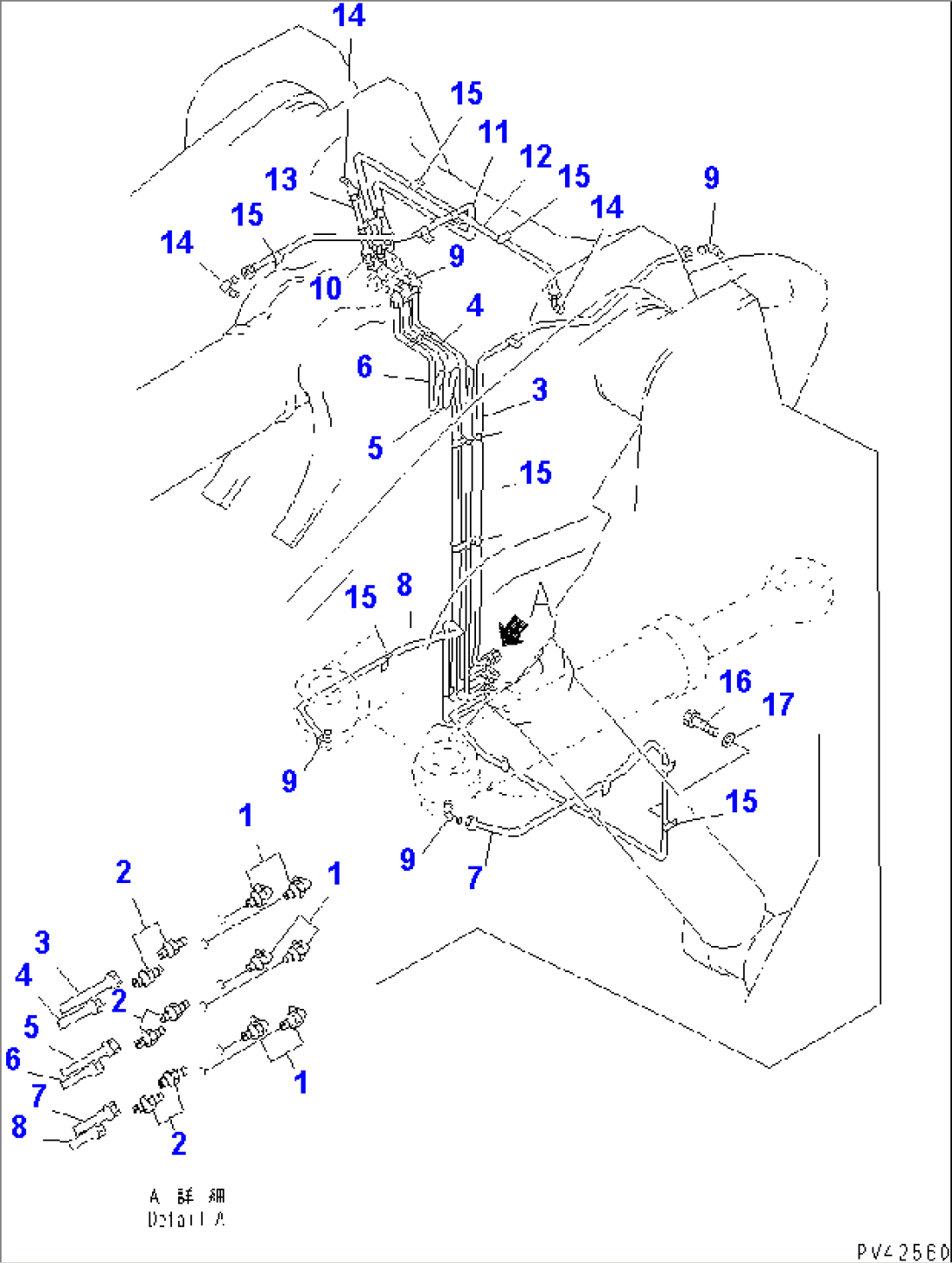

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07020-00675 | FITTING,GREASE | 10001- | |
| 2 | 07214-70710 | CONNECTOR | 10001- | |
| 3 | 427-46-16221 | TUBE | 10052- | |
| 3 | 427-46-16220 | TUBE | 10001-10051 | |
| 4 | 427-70-14142 | TUBE | 10671- | |
| 4 | 427-70-14141 | TUBE | 10052-10670 | |
| 4 | 427-70-14140 | TUBE | 10001-10051 | |
| 5 | 427-70-14152 | TUBE | 10671- | |
| 5 | 427-70-14151 | TUBE | 10052-10670 | |
| 5 | 427-70-14150 | TUBE | 10001-10051 | |
| 6 | 427-70-14162 | TUBE | 10671- | |
| 6 | 427-70-14161 | TUBE | 10052-10670 | |
| 6 | 427-70-14160 | TUBE | 10001-10051 | |
| 7 | 427-63-14140 | TUBE | 10501- | |
| 7 | 427-63-14111 | TUBE | 10052-10499 | |
| 7 | 427-63-14110 | TUBE | 10001-10051 | |
| 8 | 427-63-14150 | TUBE | 10501- | |
| 8 | 427-46-14121 | TUBE | 10052-10499 | |
| 8 | 427-46-14120 | TUBE | 10001-10051 | |
| 9 | 07217-70712 | ELBOW | 10001- | |
| 10 | 07214-70710 | CONNECTOR | 10001- | |
| 11 | 427-70-14172 | TUBE | 10001- | |
| 12 | 427-70-14181 | TUBE | 10052- | |
| 12 | 427-70-14180 | TUBE | 10001-10051 | |
| 13 | 427-70-14190 | TUBE | 10001- | |
| 14 | 07217-50712 | ELBOW | 10001- | |
| 15 | 425-70-13120 | CLIP | 10001- | |
| 16 | 01010-81020 | BOLT | 10001- | |
| 17 | 01643-31032 | WASHER | 10001- |
