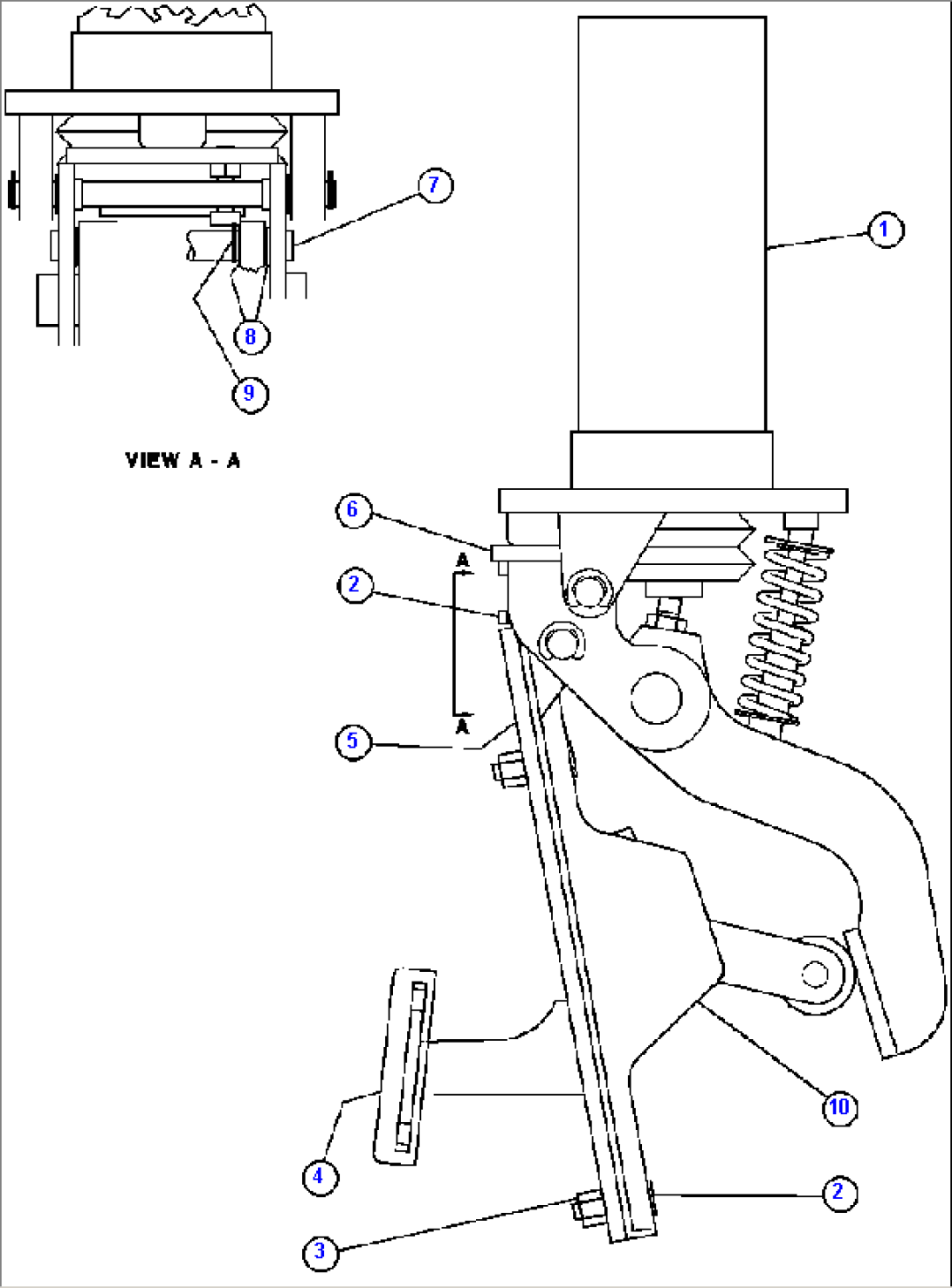

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EC7867 | BRAKE VALVE ASSEMBLY (SEE INDEX) | ||
| 2 | MM0027 | CAPSCREW - M6 X 1.00 X 25 | ||
| 3 | MM0691 | LOCKNUT - M6 X 1.00 | ||
| 4 | EC7851 | PAD, FOOT | ||
| 5 | ED0655 | PEDAL | ||
| 6 | MM0176 | NUT - M6 | ||
| 7 | EC6243 | PIN, PIVOT PEDAL | ||
| 8 | WA5489 | BEARING, FLANGED - 3/8" | ||
| 9 | VJ4023 | RING, RETAINING | ||
| 10 | ED1666 | ELECTRONIC RETARD PEDAL | ||
| 10 | PB8247 | TREADLE, ELECTRONIC (REWORK) (SEE FIG 40531) |
