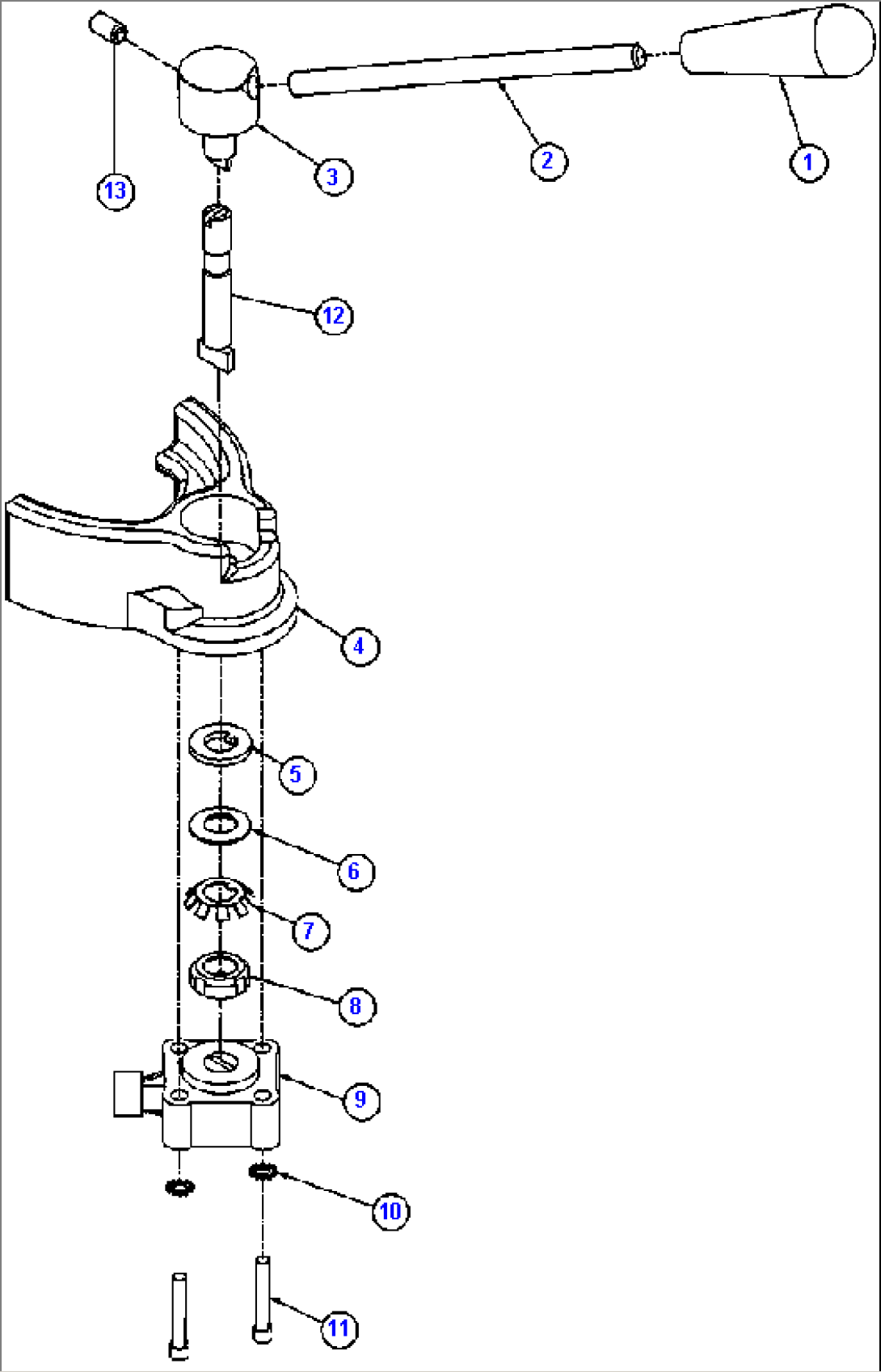

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB9120 | HANDLE | ||
| 2 | EF6164 | LEVER | ||
| 3 | EG4928 | SHAFT | ||
| 4 | EG4929 | BRACKET | ||
| 5 | WA6186 | WASHER, TONGUED | ||
| 6 | WA6188 | DISC, SPRING | ||
| 7 | WA6185 | LOCKWASHER, TANGED | ||
| 8 | WA6187 | LOCKNUT | ||
| 9 | VE7562 | KIT, POTENTIOMETER | ||
| 10 | DD8355 | LOCKWASHER - #12 (EXT TOOTH) | ||
| 11 | VN9528 | SCREW, MACHINE - #12 - 24NC X 1 1/4" | ||
| 12 | EG4930 | SHAFT | ||
| 13 | DC1850 | SETSCREW - 1/4" - 20NC X 3/8" | ||
| 13 | (AFTER CALIBRATION OF THIS ASSEMBLY, REFERENCE | |||
| 13 | NUMBERS 3,4,9, AND 12 BECOME A MATCHED ASSEMBLY | |||
| 13 | AND CANNOT BE SERVICED SEPARATELY.) |
