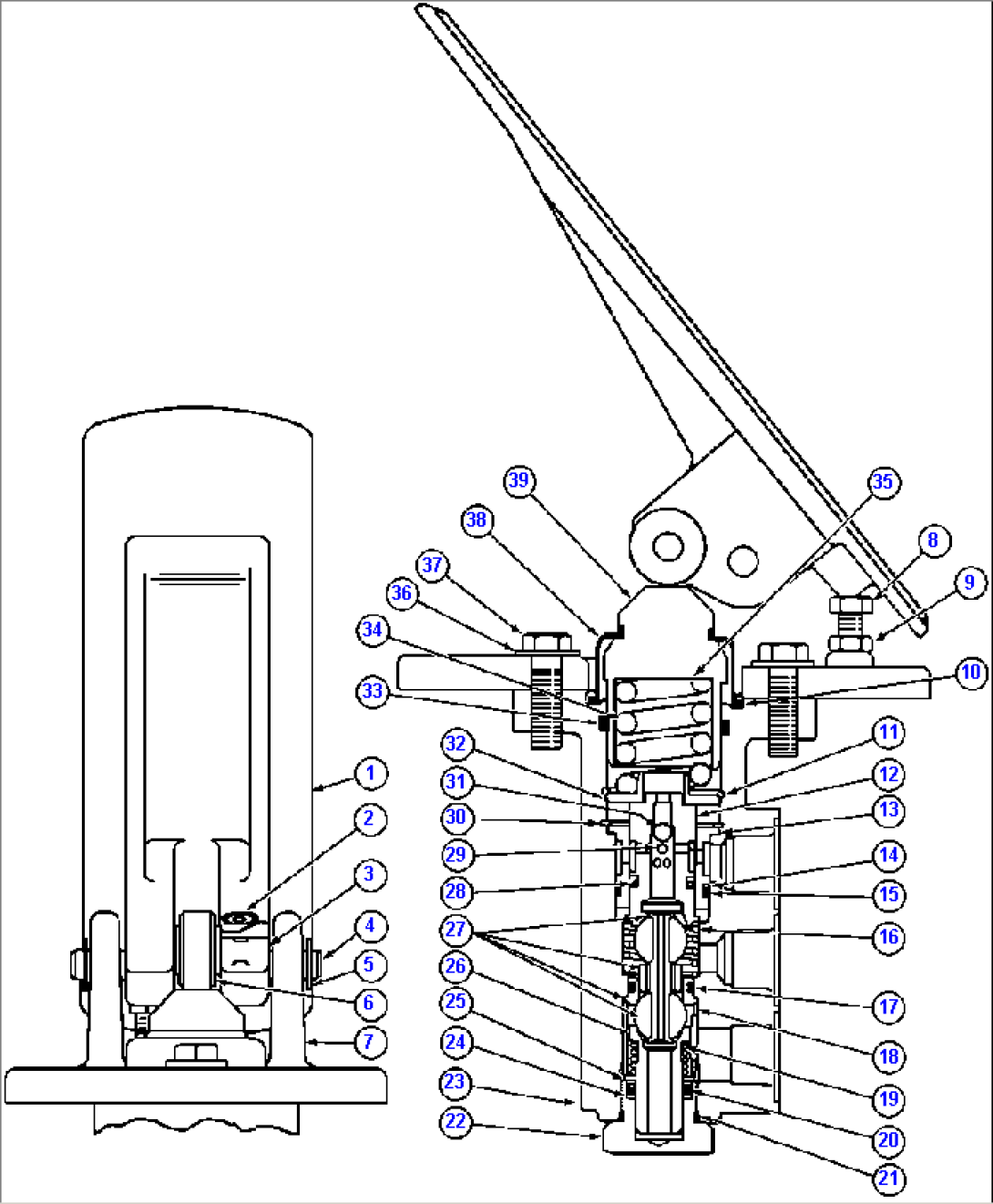

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE6018 | PEDAL | ||
| 2 | VE3872 | SET SCREW | ||
| 3 | VE6019 | PIN | ||
| 4 | VE6020 | PIN | ||
| 5 | VE6021 | RING, RETAINING | ||
| 6 | VE6022 | ROLLER | ||
| 7 | VE6023 | BASE | ||
| 8 | VE6028 | CAPSCREW | ||
| 9 | VE3857 | NUT | ||
| 10 | VE6026 | RING (1) | ||
| 11 | VE5997 | RING, RETAINER | ||
| 12 | VE6032 | PISTON | ||
| 13 | VE6033 | SLEEVE | ||
| 14 | VE2438 | RING, BACKUP (1) | ||
| 15 | VE2537 | O-RING (1) | ||
| 16 | VE5998 | SPRING | ||
| 17 | VE5999 | O-RING (1) | ||
| 18 | VE2549 | CAGE (1) | ||
| 19 | VE3867 | SPRING | ||
| 20 | VE2552 | CUP | ||
| 21 | VE6003 | O-RING (1) | ||
| 22 | VE2531 | PLUG, END | ||
| 23 | VE2553 | RING, BACKUP (1) | ||
| 24 | HOUSING (2) | |||
| 25 | VE2551 | WASHER | ||
| 26 | VE2528 | GUIDE | ||
| 27 | VE2546 | BALL ASSM | ||
| 28 | VE6030 | CUP | ||
| 29 | VE6005 | PIN | ||
| 30 | VE2524 | RING, RETAINING | ||
| 31 | VE2543 | BALL | ||
| 32 | VE3860 | RETAINER | ||
| 33 | VE6029 | O-RING (1) | ||
| 34 | VE2542 | SPRING | ||
| 35 | VE3859 | SHIM | ||
| 35 | VE2519 | SHIM - .017 | ||
| 35 | VE2520 | SHIM - .030 | ||
| 35 | VE2521 | SHIM - .007 | ||
| 36 | VE3864 | WASHER | ||
| 37 | VE3863 | CAPSCREW | ||
| 38 | VE6025 | BOOT (1) | ||
| 39 | VE6024 | PISTON | ||
| NS|43 | VE6031 | NOTE: (1) INCLUDED IN VE6031 REPAIR KIT. |
