| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH1785 | CLEAT, CABLE | ||
| 2 | VN6187 | STUD - 5/8" - 11NC X 5" | ||
| 3 | TV1749 | NUT - 5/8" - 11NC | ||
| 4 | VC1390 | LOCKWASHER - 5/8" | ||
| 5 | TR9082 | FLAT WASHER - 5/8" | ||
| 6 | VA0609 | SPACER | ||
| 7 | TG5845 | STUD - 5/8" - 11NC X 2 7/8" |
- Главная
- Каталог запчастей
- Самосвалы
- Afe57 ec 830e 1ac s/n a30565 (edi)
- Retarder grid group
- Retarding grid installation 2/2
Поиск по каталогу

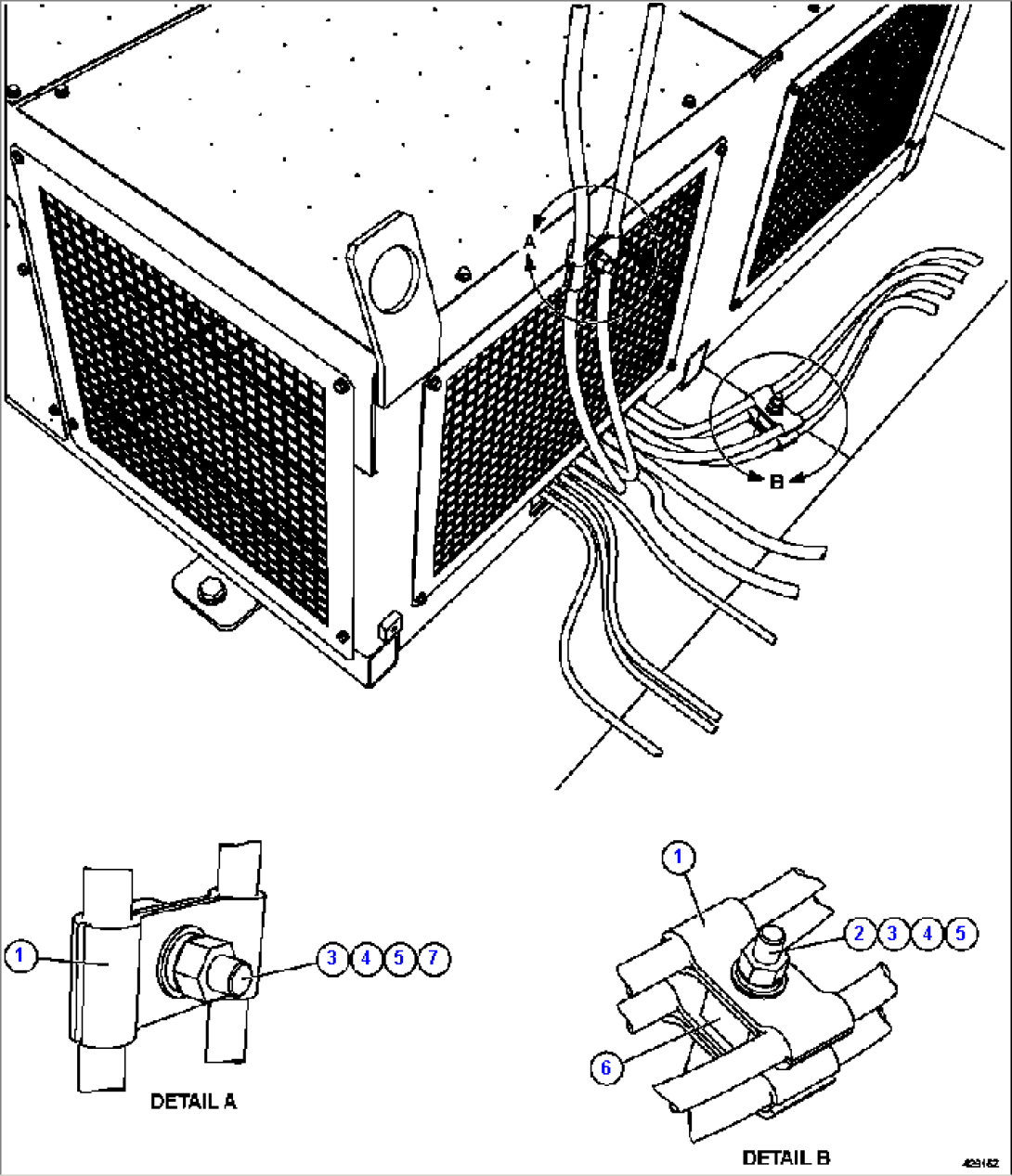

RETARDING GRID INSTALLATION 2/2
