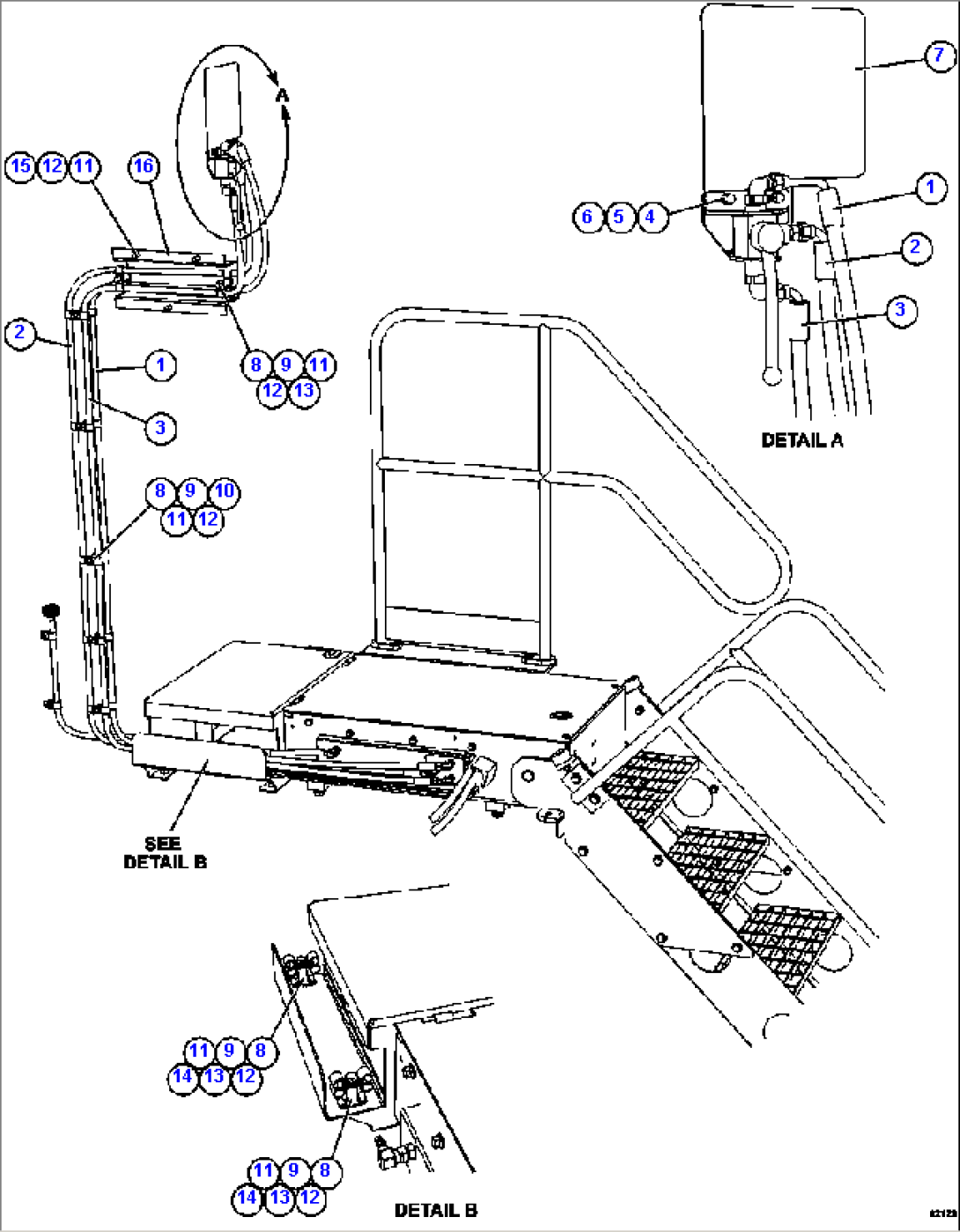

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA8812 | HOSE | ||
| 2 | HA8813 | HOSE | ||
| 3 | HA8814 | HOSE | ||
| 4 | MM0027 | CAPSCREW - M6 X 1.00 X 25 | ||
| 5 | MM0469 | LOCKWASHER - M6 | ||
| 6 | MM0459 | FLAT WASHER - M6 | ||
| 7 | XB5323 | PLATE | ||
| 8 | EM1393 | SPACER | ||
| 9 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 10 | MM0178 | NUT - M10 X 1.50 | ||
| 11 | MM0471 | LOCKWASHER - M10 | ||
| 12 | MM0461 | FLAT WASHER - M10 | ||
| 13 | MM0612 | CAPSCREW - M10 X 1.50 X 70 | ||
| 14 | WB1301 | CLAMP, CUSHIONED - 1/4" | ||
| 15 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 16 | XB3080 | PLATE, BENT |
