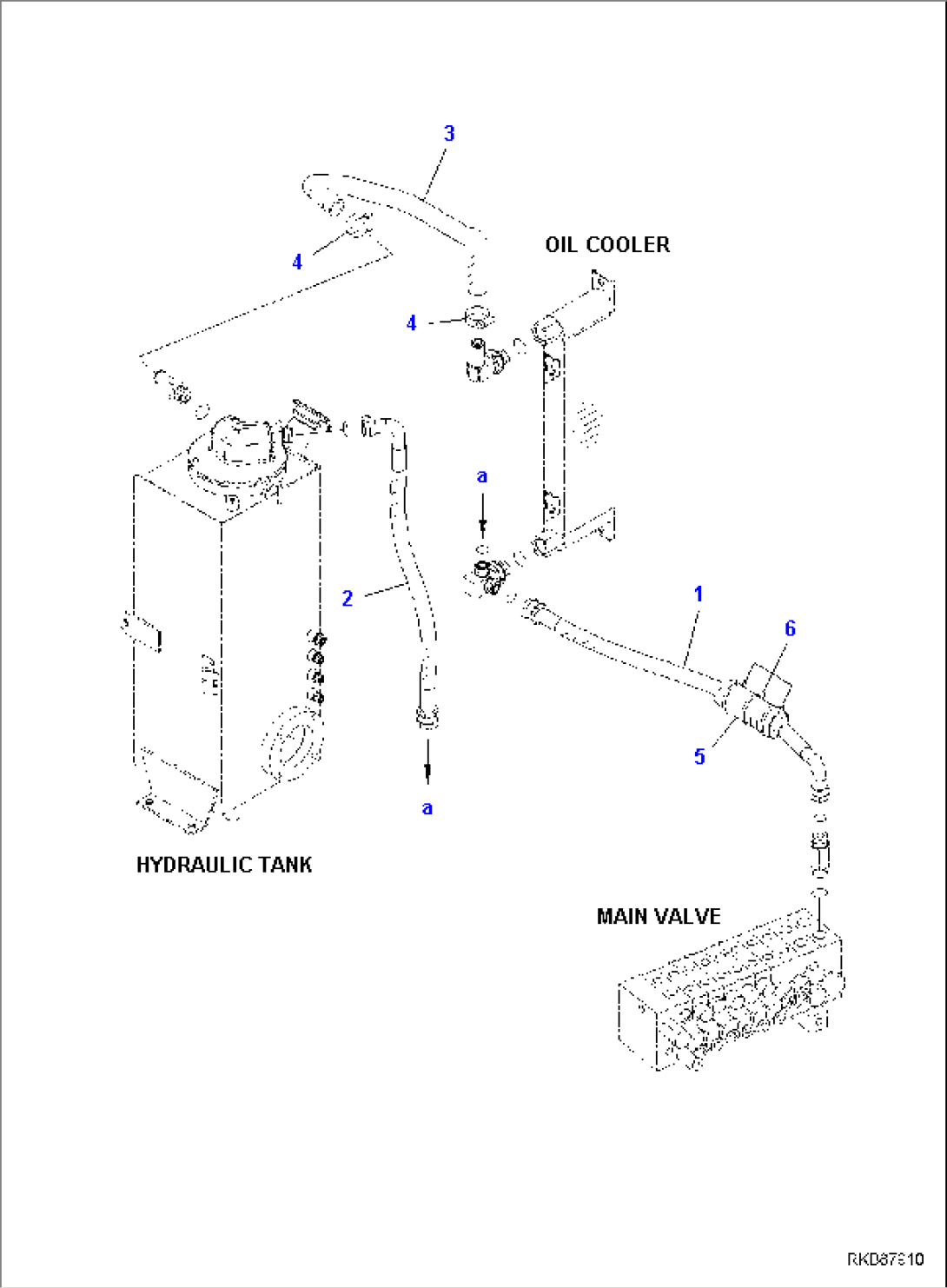

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02763-005A7 | HOSE | F30001-F30324 | |
| 2 | 22K-62-32300 | HOSE, ASSEMBLY | F30001-F30324 | |
| 3 | 22K-62-22360 | HOSE | F30001-F30324 | |
| 4 | 07289-00035 | CLAMP | F30001-F30324 | |
| 5 | 20N-62-72670 | SHEET | F30001-F30324 | |
| 6 | 08034-20823 | CLAMP | F30001-F30324 |
