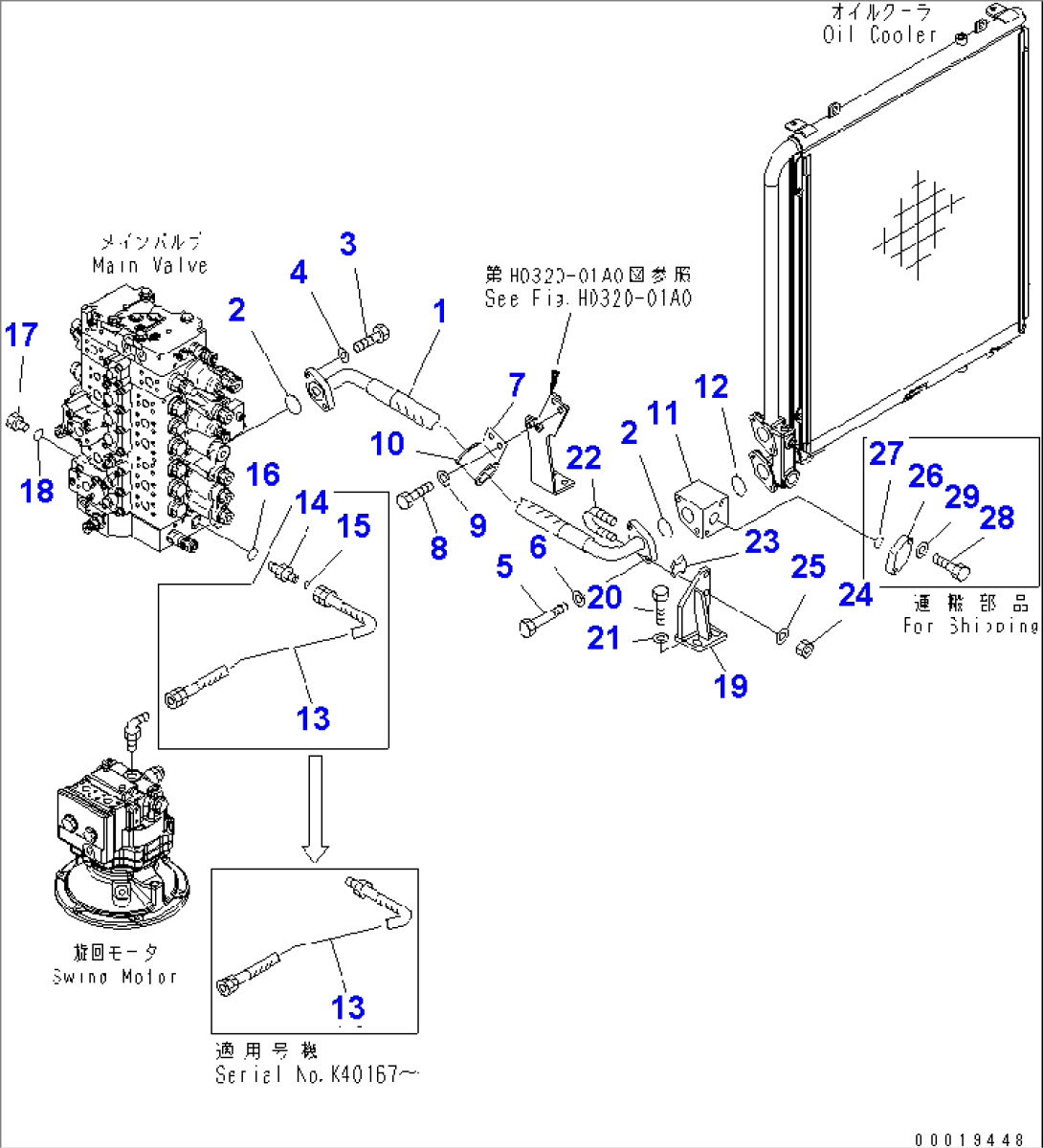

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-43390 | HOSE¤ 1100MM | K40001- | |
| 2 | 07000-13048 | O-RING | K40001- | |
| 3 | 01010-81240 | BOLT | K40001- | |
| 4 | 01643-31232 | WASHER | K40001- | |
| 5 | 01011-81220 | BOLT | K40001- | |
| 6 | 01643-31232 | WASHER | K40001- | |
| 7 | 20Y-62-41350 | CLAMP | K40001- | |
| 8 | 01010-81225 | BOLT | K40001- | |
| 9 | 01643-31232 | WASHER | K40001- | |
| 10 | 07095-01449 | CUSHION | K40001- | |
| 11 | 20Y-62-43371 | BLOCK | K40001- | |
| 12 | 07000-13048 | O-RING | K40001- | |
| 13 | 20Y-62-44520 | HOSE¤ 875MM | K40167- | |
| 02762-006A8 | HOSE | K40001-K40166 | ||
| 14 | 02781-00628 | UNION | K40001-K40166 | |
| 15 | 02896-11018 | O-RING | K40001-K40166 | |
| 16 | 07002-12434 | O-RING | K40001- | |
| 17 | 07040-12412 | PLUG | K40001- | |
| 18 | 07002-12434 | O-RING | K40001- | |
| 19 | 206-62-76190 | BRACKET | K40001- | |
| 20 | 01010-81235 | BOLT | K40001- | |
| 21 | 175-54-34170 | WASHER | K40001- | |
| 22 | 07283-34354 | CLIP | K40001- | |
| 23 | 07283-54353 | SEAT | K40001- | |
| 24 | 01597-01009 | NUT | K40001- | |
| 25 | 01643-31032 | WASHER | K40001- | |
| 26 | 07336-61227 | FLANGE | K40001- | |
| 27 | 07000-13035 | O-RING | K40001- | |
| 28 | 01010-81030 | BOLT | K40001- | |
| 29 | 01643-31032 | WASHER | K40001- |
