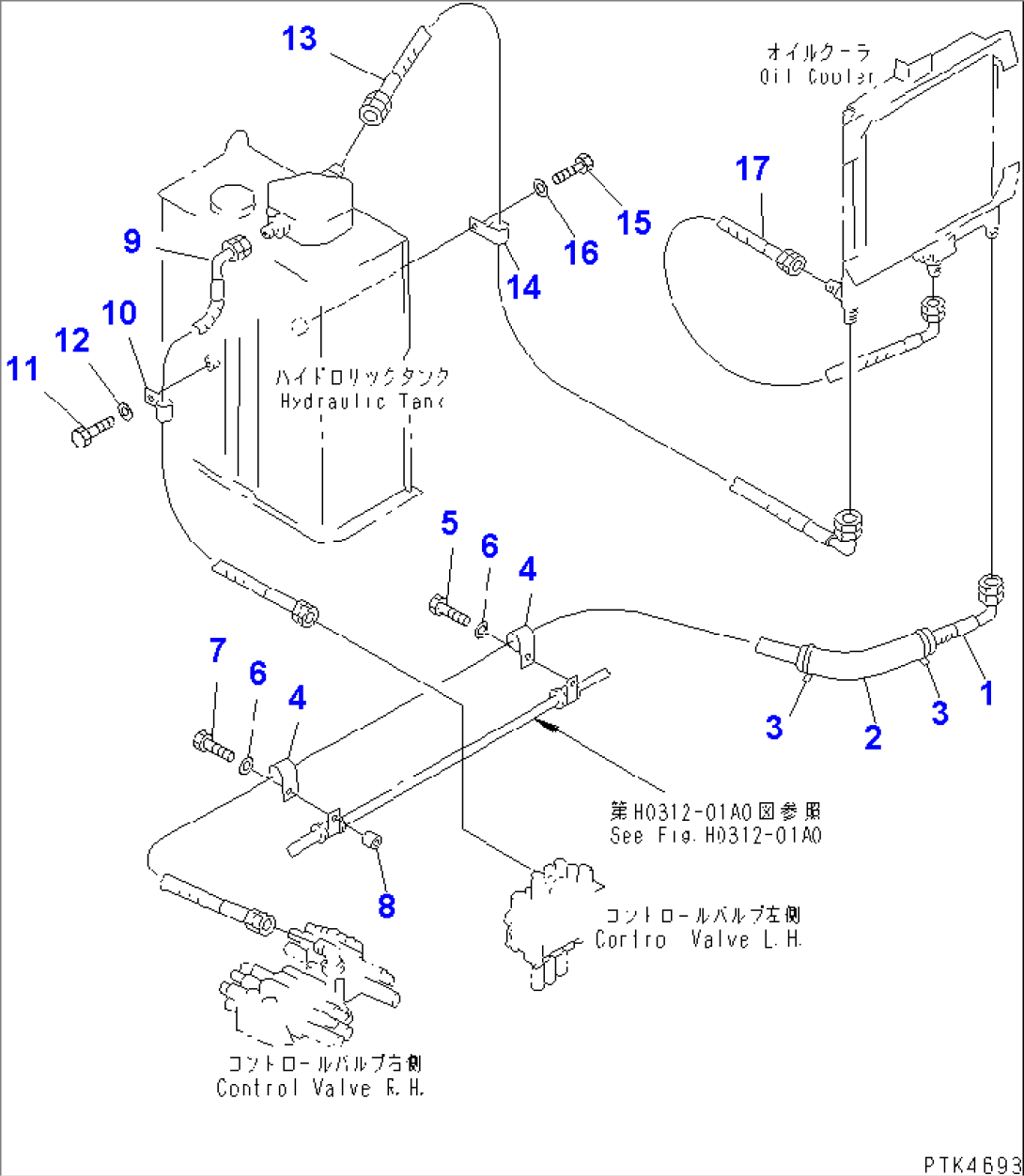

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-22711 | HOSE | 10835- | |
| 2 | 20U-62-26170 | SEAT | 12800- | |
| 2 | 203-62-41150 | COVER | 10835-12799 | |
| 3 | 08034-20823 | BAND | 12800- | |
| 3 | 08034-00823 | BAND | 10835-12799 | |
| 4 | 04434-53211 | CLIP | 10835- | |
| 5 | 01010-81020 | BOLT | 10835- | |
| 6 | 01643-31032 | WASHER | 10835- | |
| 7 | 01010-81040 | BOLT | 10835- | |
| 8 | 175-79-83760 | SPACER | 10835- | |
| 9 | 20U-62-22720 | HOSE | 10835- | |
| 10 | 04434-52511 | CLIP | 10835- | |
| 11 | 01010-81020 | BOLT | 10835- | |
| 12 | 01643-31032 | WASHER | 10835- | |
| 13 | 20U-62-25771 | HOSE | 12762- | |
| 13 | 20U-62-22770 | HOSE | 11323-12761 | |
| 13 | 20U-62-22730 | HOSE | 10835-11322 | |
| 14 | 04434-53211 | CLIP | 10835- | |
| 15 | 01010-81020 | BOLT | 10835- | |
| 16 | 01643-31032 | WASHER | 10835- | |
| 17 | 20U-62-22742 | HOSE | 12800- | |
| 17 | 20U-62-22741 | HOSE | 10835-12799 |
