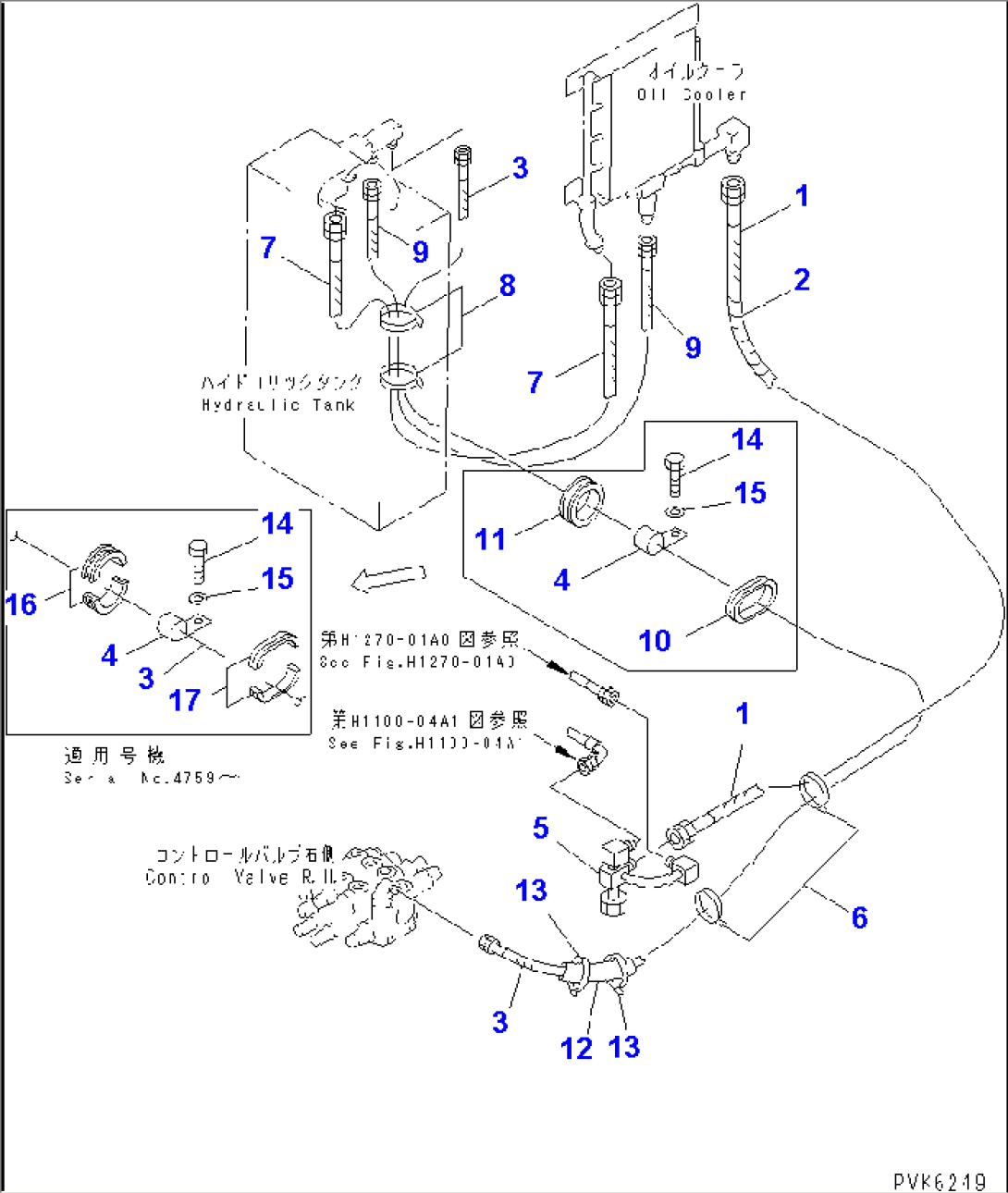

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21X-62-22810 | HOSE | 3001- | |
| 2 | 203-62-32450 | COVER | 3001- | |
| 3 | 21X-62-22820 | HOSE | 3001- | |
| 4 | 08035-02510 | CLIP | 3001- | |
| 5 | 21X-973-2312 | TUBE | 4609- | |
| 5 | 21X-973-2311 | TUBE | 3001-4608 | |
| 6 | 08034-00823 | BAND | 3001- | |
| 7 | 21W-62-22990 | HOSE | 3001- | |
| 8 | 08034-00823 | BAND | 3001- | |
| 9 | 21X-62-22790 | HOSE | 3001- | |
| 10 | 20T-62-71790 | GROMMET | 3001-4758 | |
| 11 | 201-910-6270 | GROMMET | 3001-4758 | |
| 12 | 203-04-31230 | COVER | 3001- | |
| 13 | 08034-00823 | BAND | 3001- | |
| 14 | 01010-81020 | BOLT | 3001- | |
| 15 | 01643-31032 | WASHER | 3001- | |
| 16 | 21X-968-2380 | GROMMET | 4759- | |
| 17 | 21X-968-2390 | GROMMET | 4759- |
