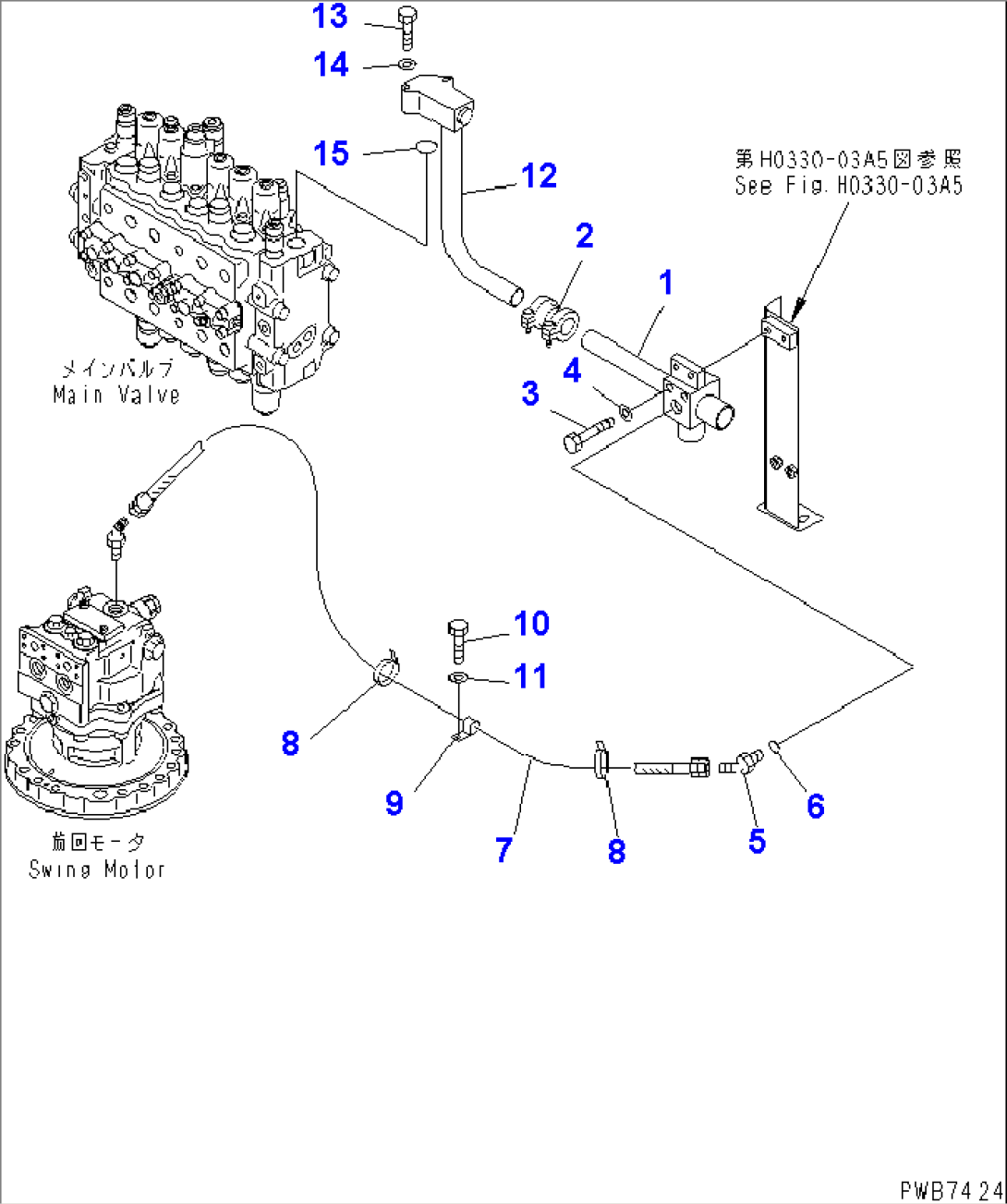

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-27261 | TUBE | C10001- | |
| 2 | 07332-01000 | COUPLING ASS'Y | C10001- | |
| 3 | 01010-81290 | BOLT | C10001- | |
| 4 | 01643-31232 | WASHER | C10001- | |
| 5 | 07236-10628 | ELBOW | C10001- | |
| 6 | 07002-02434 | O-RING | C10001- | |
| 7 | 07102-20611 | HOSE | C10506- | |
| 8 | 08034-00536 | BAND | C10001- | |
| 9 | 04434-52712 | CLIP | C10001- | |
| 10 | 01010-81225 | BOLT | C10001- | |
| 11 | 01643-31232 | WASHER | C10001- | |
| 12 | 20Y-62-27550 | TUBE | C10001- | |
| 13 | 01010-81070 | BOLT | C10506- | |
| 14 | 01643-31032 | WASHER | C10001- | |
| 15 | 07000-03038 | O-RING | C10001- |
