| Item | Part No. | Part Name | Qty | Serial No. |

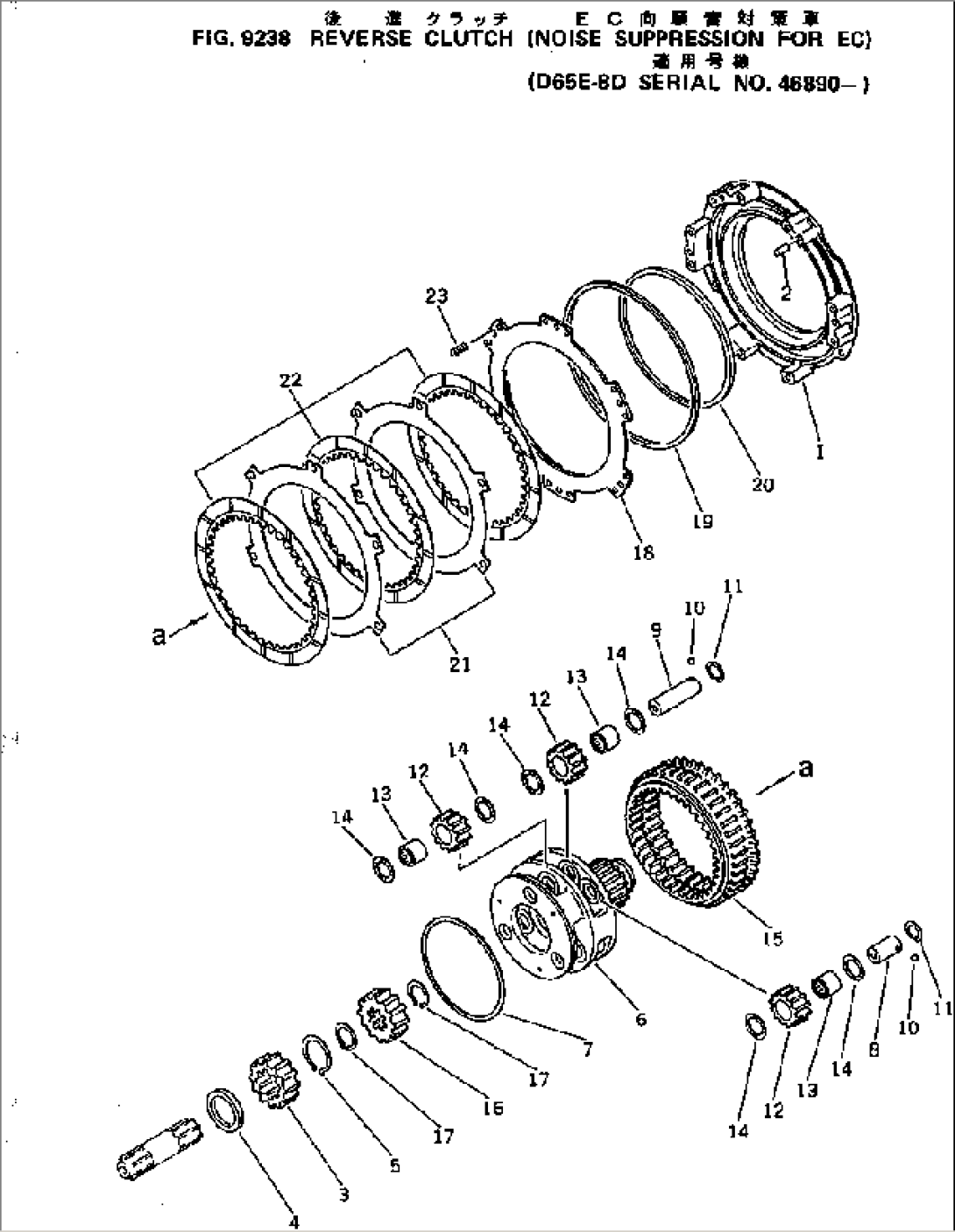

| (144-15-00300) | TRANSMISSION ASS'Y | 46890- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.9235 TO 9245. | ||||
| 1 | 145-15-41162 | HOUSING | 46890- | |
| 2 | 04020-01228 | PIN | 46890- | |
| 3 | 15B-15-12130 | GEAR | 46890- | |
| 4 | 145-15-42190 | BUSHING | 46890- | |
| 5 | 04064-07525 | RING,SNAP | 46890- | |
| 6 | 15B-15-12330 | CARRIER | 46890- | |
| 7 | 07018-12455 | RING,SEAL | 46890- | |
| 8 | 145-15-42530 | SHAFT | 46890- | |
| 9 | 145-15-42520 | SHAFT | 46890- | |
| 10 | 04260-00635 | BALL | 46890- | |
| 11 | 04065-03815 | RING,SNAP | 46890- | |
| 12 | 145-15-42450 | GEAR | 46890- | |
| 13 | 09232-03838 | BEARING | 46890- | |
| 14 | 09233-13820 | WASHER,THRUST | 47144- | |
| 14 | \0\144-15-22561 | WASHER,THRUST | 46890-47143 | |
| 15 | 145-15-42621 | GEAR | 46890- | |
| 16 | 15B-15-12140 | GEAR | 46690- | |
| 17 | 04064-05520 | RING,SNAP | 46890- | |
| 18 | 145-15-42740 | PISTON | 46890- | |
| 19 | 144-15-22871 | RING,SEAL | 46890- | |
| 20 | 144-15-22881 | RING,SEAL | 46890- | |
| 21 | 145-15-42760 | PLATE | 46890- | |
| 22 | 195-15-32710 | DISC | 47159- | |
| 22 | \0\154-15-12716 | DISC | 46890-47158 | |
| 23 | 145-14-12790 | SPRING, (L= 59.0) | 46890- |
