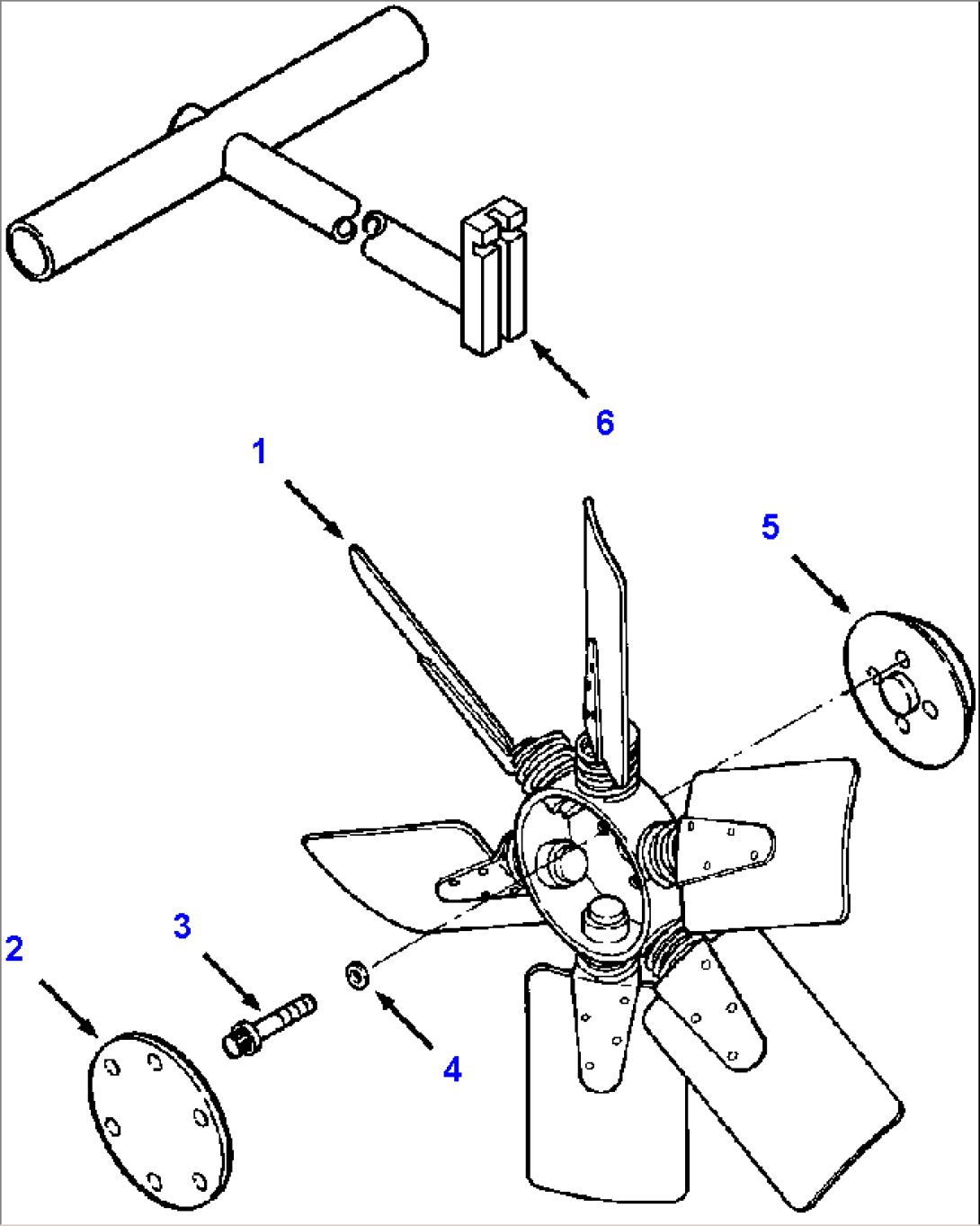

| Item | Part No. | Part Name | Qty | Serial No. |
| (1270 293 H91) | REVERSIBLE FAN | |||
| 1278 802 H1 | FAN ASSY, REVERSIBLE | |||
| 1 | (NSS) | FAN, REVERSIBLE | ||
| 2 | (NSS) | COVER, FRONT | ||
| (NSS) | BOLT, HEX | |||
| (NSS) | WASHER, LOCK | |||
| 3 | 1298 696 H1 | BOLT, HEX - M10x55 | ||
| 3 | 01437-11055 | BOLT, HEX - M10x55 | ||
| 4 | 25 534 R1 | WASHER, FLAT - 3/8 | ||
| 5 | 1243 682 H1 | SPACER, FAN | ||
| 6 | 645 240 C1 | TOOL, FAN REVERSING | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
