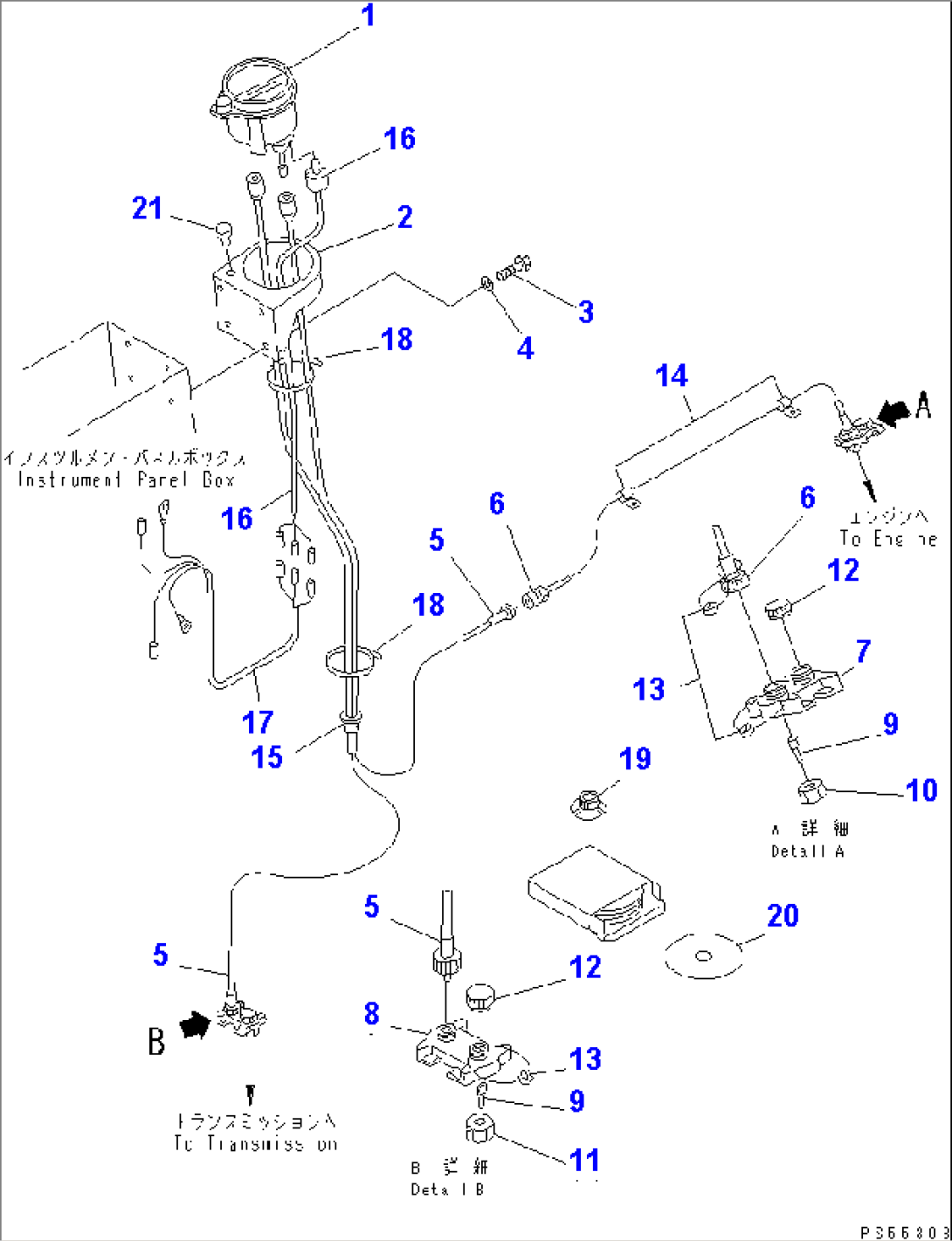

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 234-806-8410 | REVOTACHO GRAPH | 11001-@ | |
| 2 | 238-806-1120 | BRACKET | 11001-11001 | |
| 3 | 01010-51016 | BOLT | 11001-@ | |
| 4 | 01643-31032 | WASHER | 11001-@ | |
| 5 | 234-806-8320 | CABLE¤ 2200MM | 11001-@ | |
| 6 | 232-806-8310 | CABLE | 11001-@ | |
| 7 | 232-806-8321 | BOX,GEAR | 11001-@ | |
| 8 | 234-991-8510 | BOX,GEAR | 11001-@ | |
| 9 | 236-14-11150 | KEY | 11001-@ | |
| 10 | 232-806-8330 | NUT | 11001-@ | |
| 11 | 236-14-11160 | NUT | 11001-@ | |
| 12 | 232-06-52450 | PLUG | 11001-@ | |
| 13 | 232-806-7140 | WIRE,LOCK | 11001-@ | |
| 14 | 234-806-8210 | CLIP | 11001-@ | |
| 15 | 235-06-15390 | GROMMET | 11001-@ | |
| 16 | 233-806-8340 | WIRE ASS'Y | 11001-@ | |
| 08040-00100 | FUSE¤ 1A | 11001-@ | ||
| 17 | 23B-06-12910 | WIRE ASS'Y | 11001-@ | |
| 18 | 08034-00414 | BAND | 11001-@ | |
| 19 | 234-806-8450 | RING | 11001-@ | |
| 20 | 234-806-8460 | SHEET | 11001-@ | |
| 21 | 130-911-1640 | PLUG | 11001-11001 |
