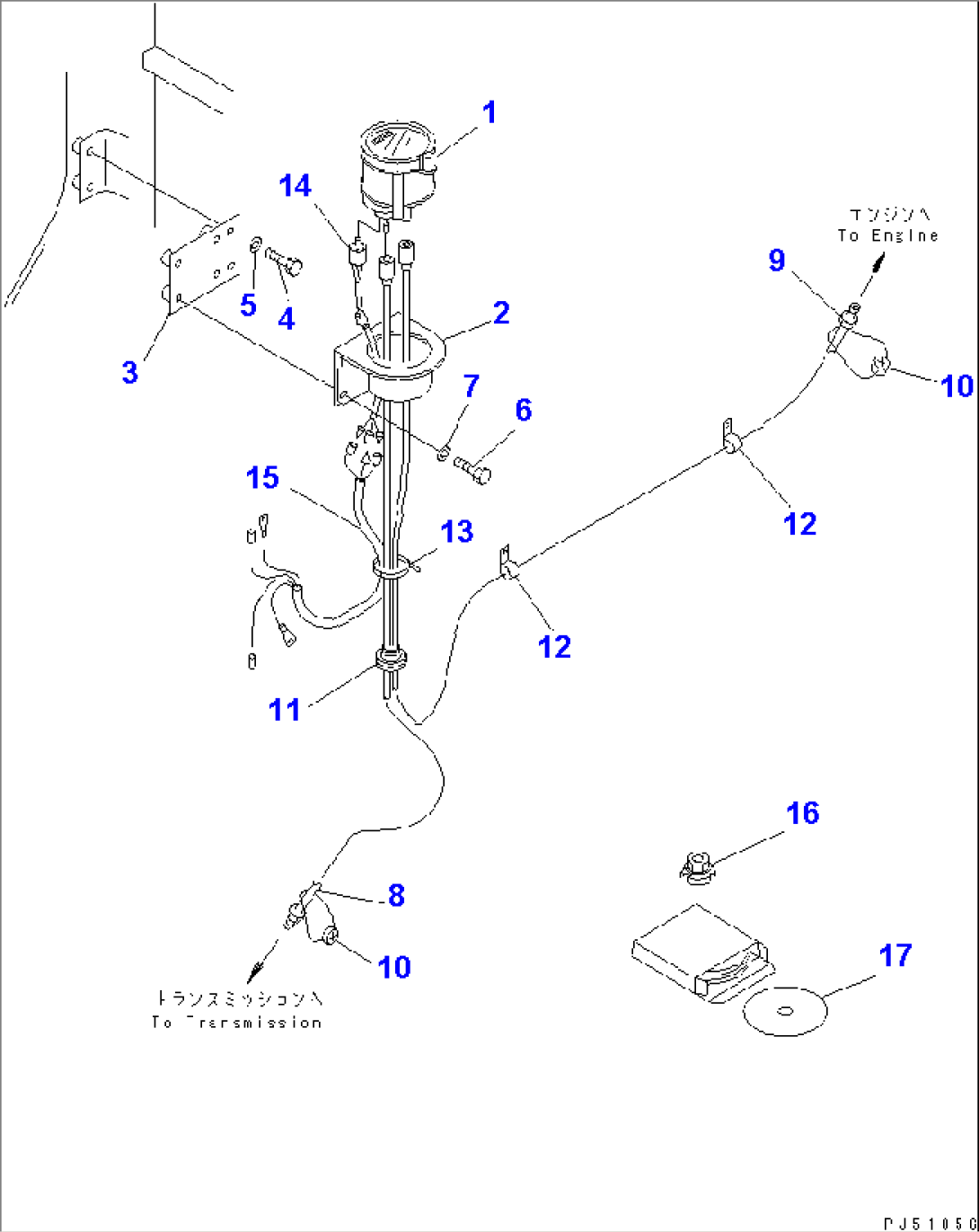

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 234-806-8410 | REVOTACHO GRAPH | 4001-@ | |
| 2 | 238-806-1120 | BRACKET | 4001-@ | |
| 3 | 23B-951-2450 | BRACKET | 4001-@ | |
| 4 | 01010-51016 | BOLT | 4001-@ | |
| 5 | 01643-31032 | WASHER | 4001-@ | |
| 6 | 01010-51016 | BOLT | 4001-@ | |
| 7 | 01643-31032 | WASHER | 4001-@ | |
| 8 | 234-806-8320 | CABLE¤ 2200MM | 4001-@ | |
| 9 | 236-806-8270 | CABLE | 4001-@ | |
| 10 | 232-806-7140 | WIRE,LOCK | 4001-@ | |
| 11 | 235-06-15390 | GROMMET | 4001-@ | |
| 12 | 08036-11214 | CLIP | 4001-@ | |
| 13 | 08034-00414 | BAND | 4001-@ | |
| 14 | 233-806-8340 | WIRE ASS'Y | 4001-@ | |
| 08040-00100 | FUSE¤ 1A | 4001-@ | ||
| 15 | 23B-06-12910 | WIRE ASS'Y | 4001-@ | |
| 16 | 234-806-8450 | RING | 4001-@ | |
| 17 | 234-806-8460 | SHEET | 4001-@ |
