| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-46-14111SS | FRAME | 8101- | |
| 22B-46-12111SS | FRAME | 7301-8100 | ||
| 2 | 203-46-61520 | GASKET | 5001- | |
| 3 | 203-46-56160SS | COVER (BLUE) | 5001- | |
| 4 | 01010-81230 | BOLT | 5001- | |
| 5 | 01643-31232 | WASHER | 5001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc128us 2 s/n 5001 9500
- Main/revolving frame and related parts
- Revolving frame (blue)(#7301 )
Поиск по каталогу

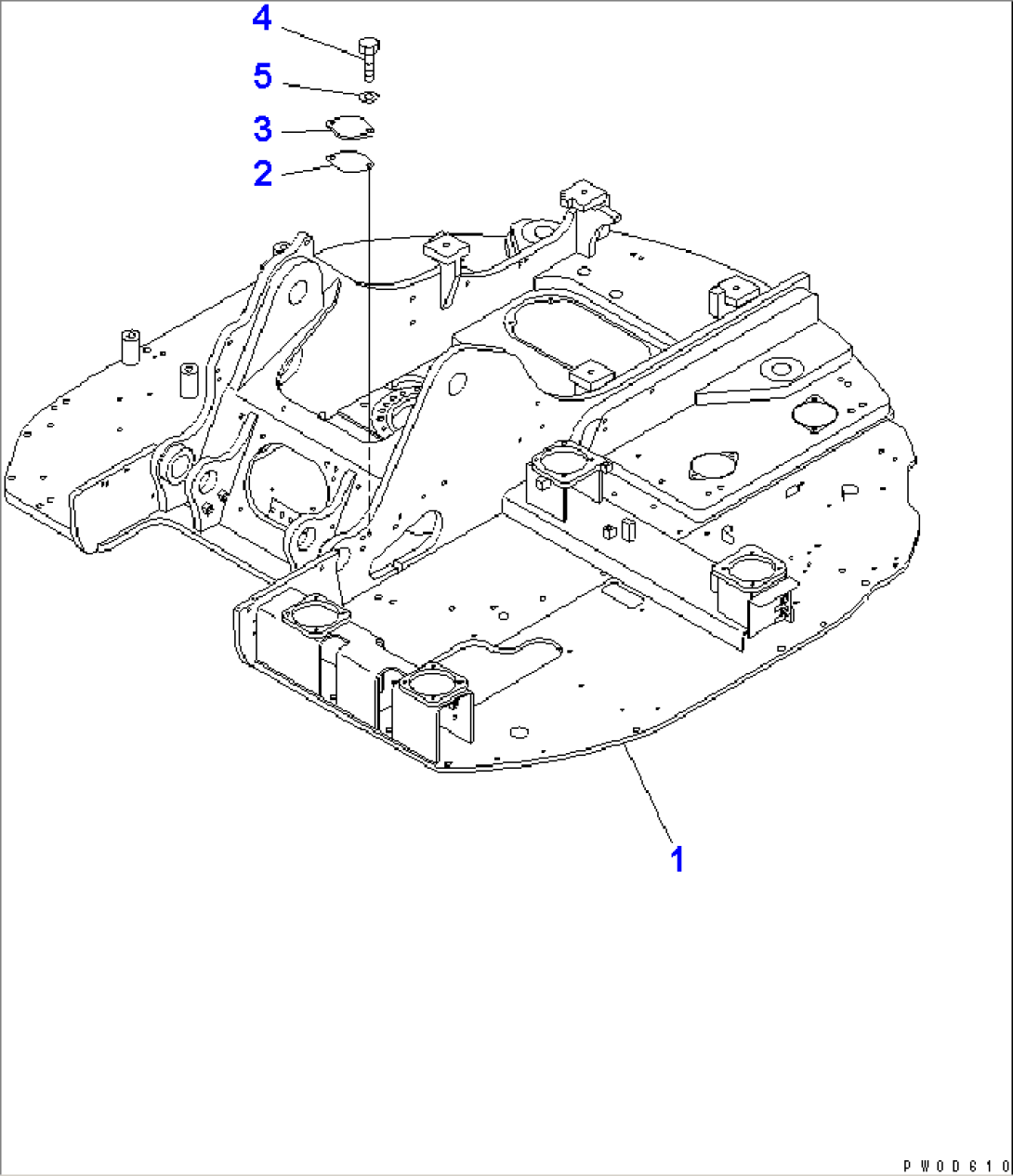

REVOLVING FRAME (BLUE)(#7301-)
