| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21M-46-31910 | Frame | 65001- | |
| 2 | 205-30-71181 | Cover | 65001- | |
| 3 | 205-30-71191 | Gasket | 65001- | |
| 4 | 01010-81230 | Bolt | 65001- | |
| 5 | 01643-31232 | Washer | 65001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc650lc 8e0 s/n 65001 up
- Frame and its related parts
- Revolving frame, for additional counterweight, frame (#65001 )
Поиск по каталогу

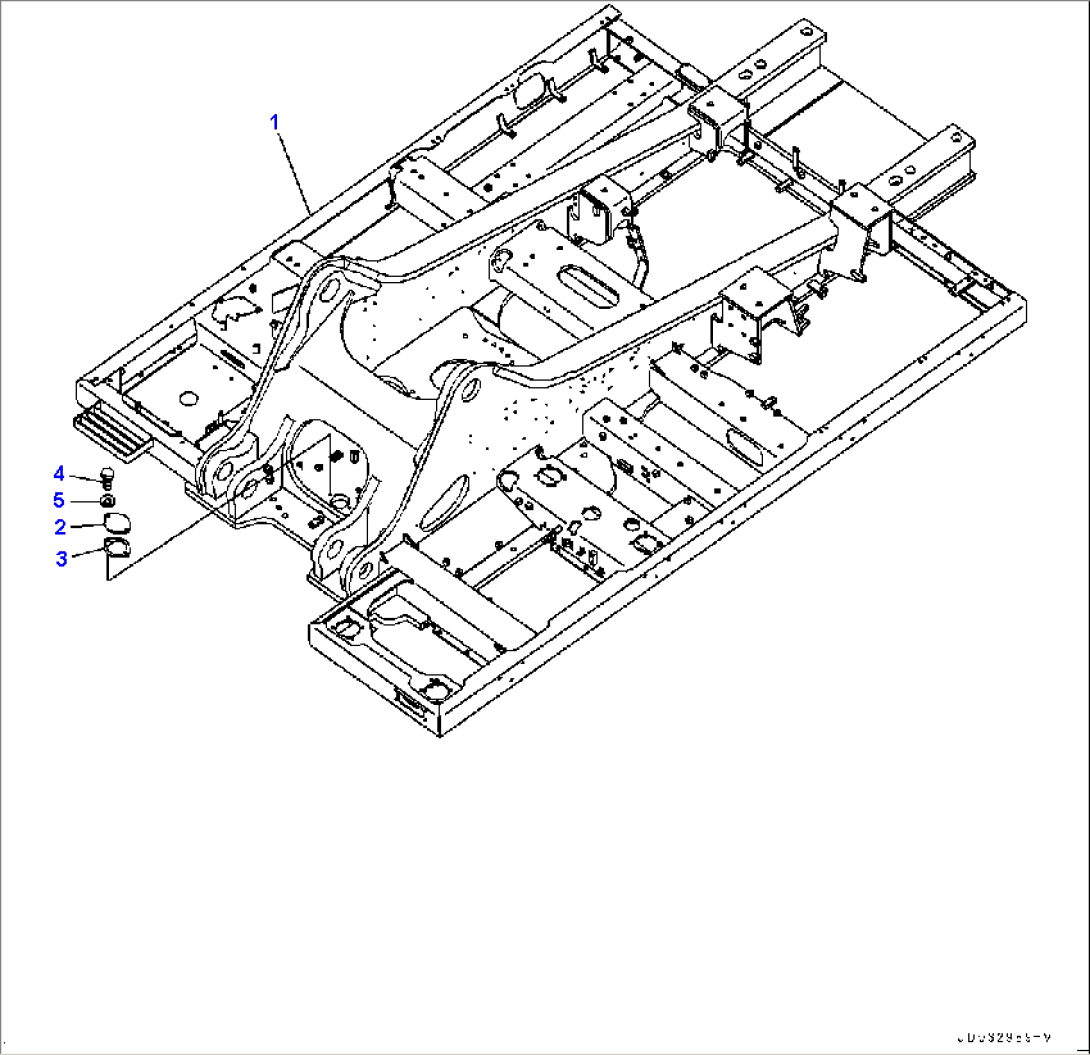

Revolving Frame, For Additional Counterweight, Frame (#65001-)
