| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-46-61412 | FRAME | 20214- | |
| 1 | 209-46-61411 | FRAME | 20164-20213 | |
| 2 | 209-46-12231 | COVER | 20001- | |
| 3 | 209-46-12242 | GASKET | 20001- | |
| 4 | 01010-51235 | BOLT | 20001- | |
| 5 | 01643-31232 | WASHER | 20001- | |
| 6 | 09690-M0063 | PLATE, MARK | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc650 5 s/n 20001 up
- Main/revolving frame and related parts
- Revolving frame (for auto grease) (for lo cab)(#20164 )
Поиск по каталогу

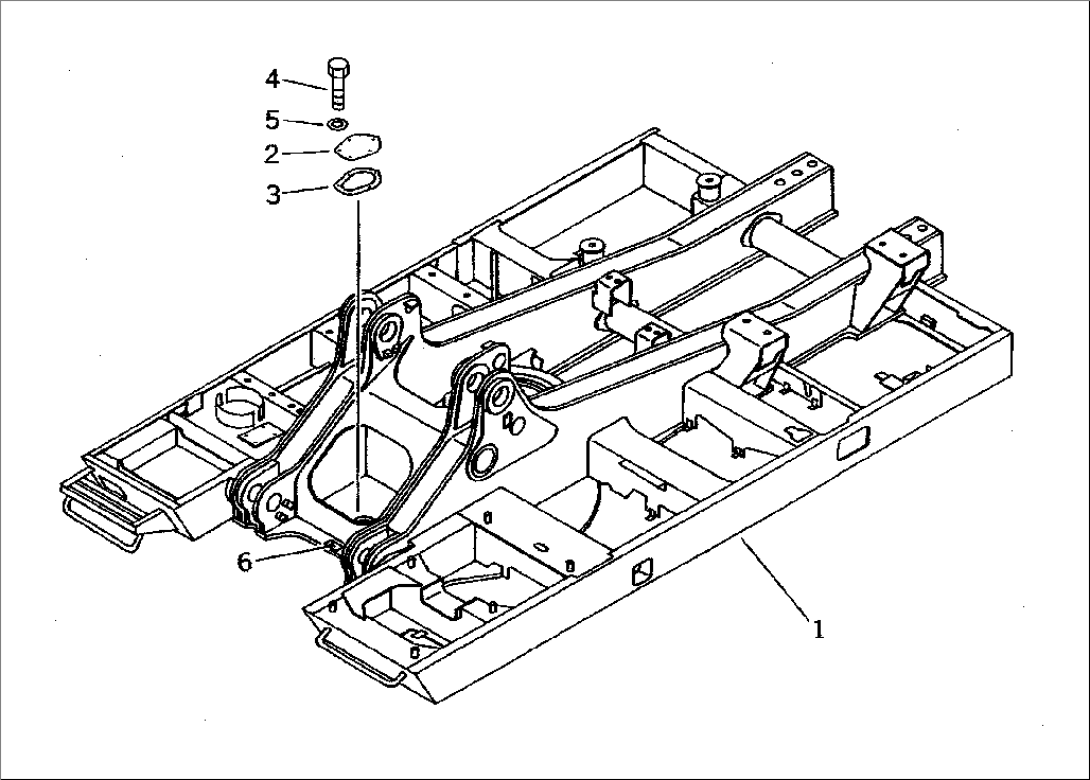

REVOLVING FRAME (FOR AUTO GREASE) (FOR LO CAB)(#20164-)
