| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-46-65191 | FRAME | 10081-10124 | |
| 2 | 205-30-71181 | COVER | 10001-@ | |
| 3 | 205-30-71191 | GASKET | 10001-@ | |
| 4 | 01010-51230 | BOLT | 10001-@ | |
| 5 | 01643-31232 | WASHER | 10001-@ | |
| 6 | 20Y-54-28960 | SHEET | 10038-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc230lc 6 s/n 10001 up
- Main/revolving frame and related parts
- Revolving frame (for auto greasing)(#10081 10124)
Поиск по каталогу

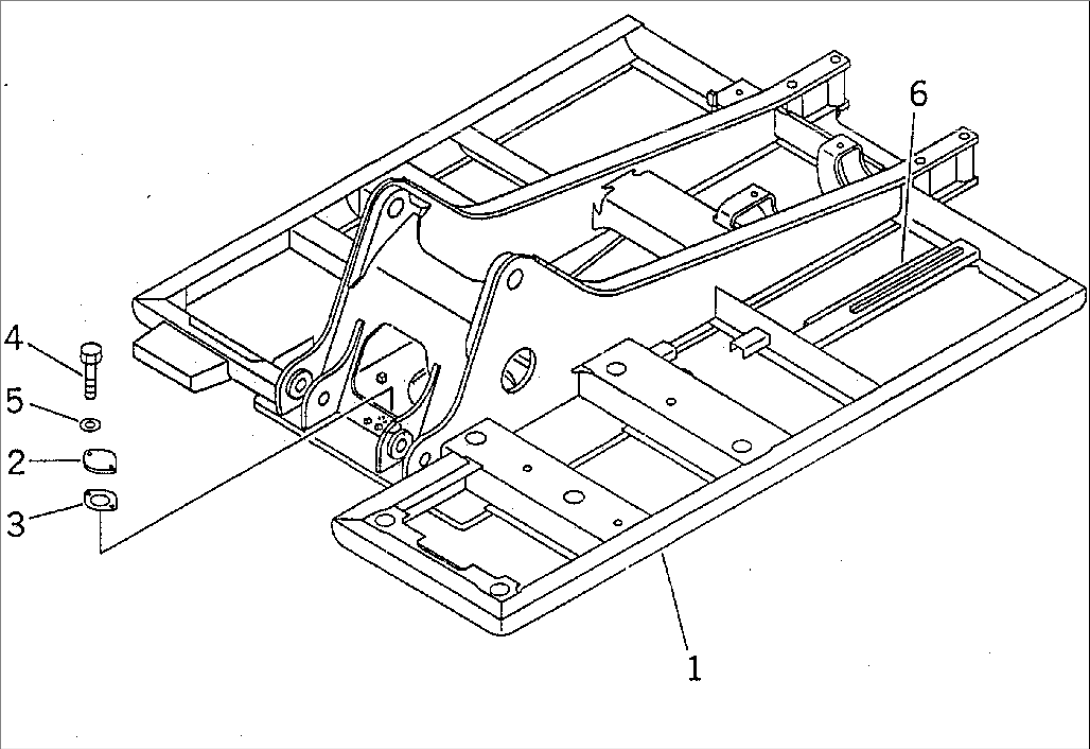

REVOLVING FRAME (FOR AUTO GREASING)(#10081-10124)
