| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-46-53111 | FRAME | 20001-21400 | |
| 2 | 205-30-71181 | COVER | 20001-@ | |
| 3 | 205-30-71191 | GASKET | 20001-@ | |
| 4 | 01010-51230 | BOLT | 20001-@ | |
| 5 | 01643-31232 | WASHER | 20001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc300lc 5 a s/n 20001 up (overseas version)
- Control system and revolving frame
- Revolving frame (with counter weight remover)(#20001 21400)
Поиск по каталогу

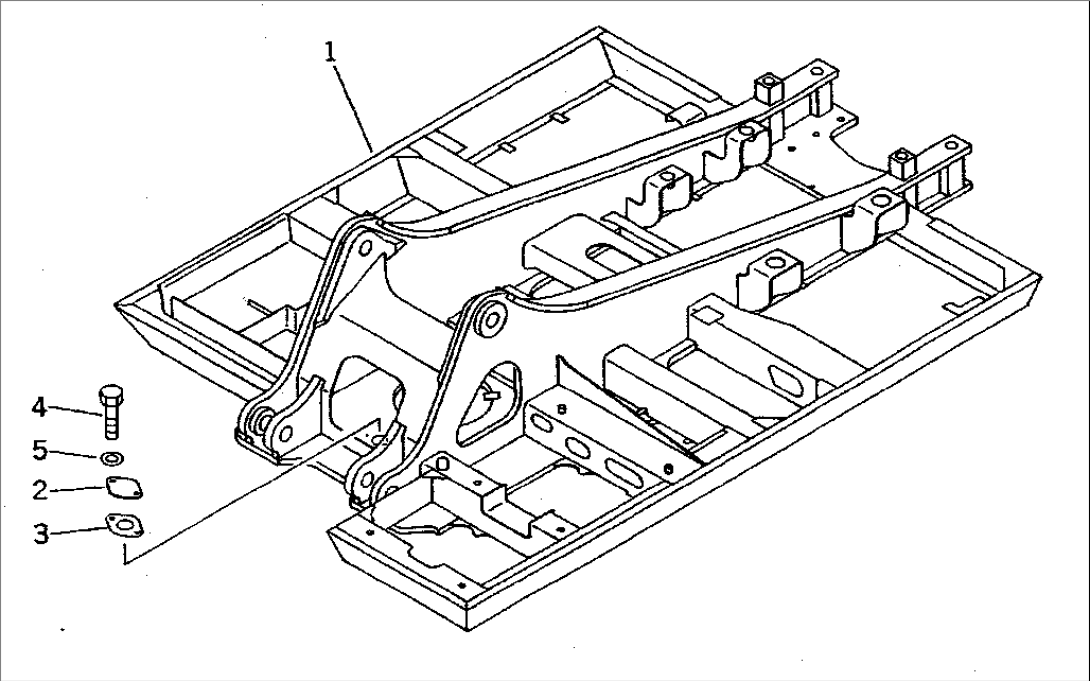

REVOLVING FRAME (WITH COUNTER WEIGHT REMOVER)(#20001-21400)
